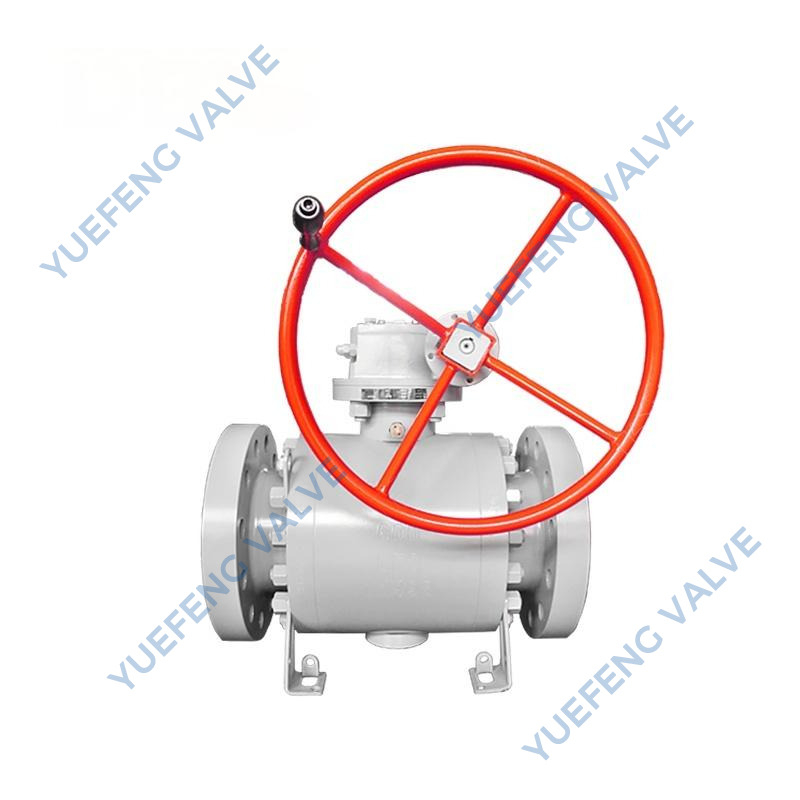

600# 3-Piece Flanged Forged Steel Trunnion Mounted Ball Valve

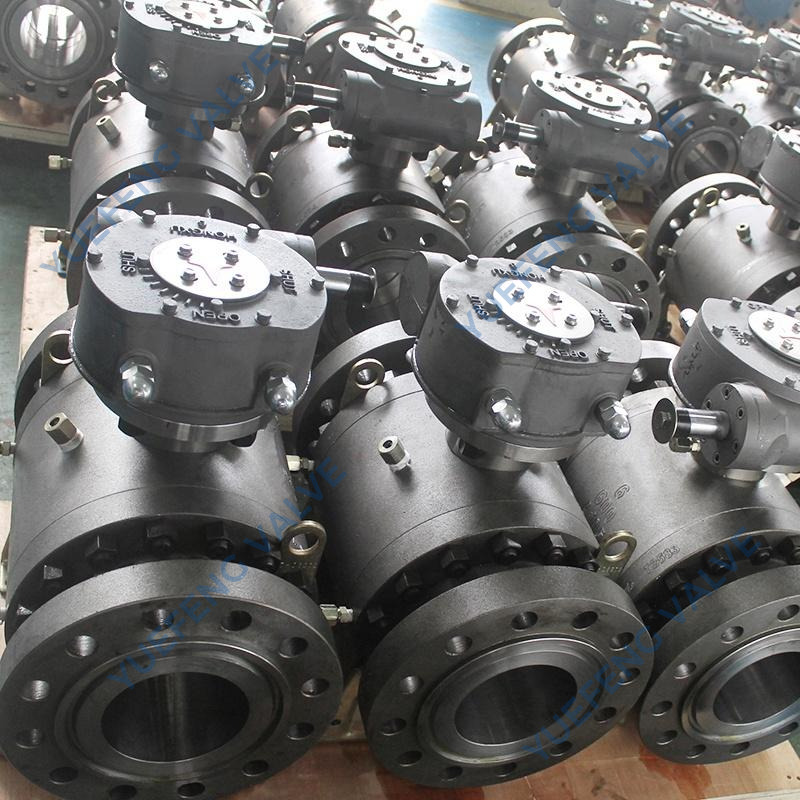

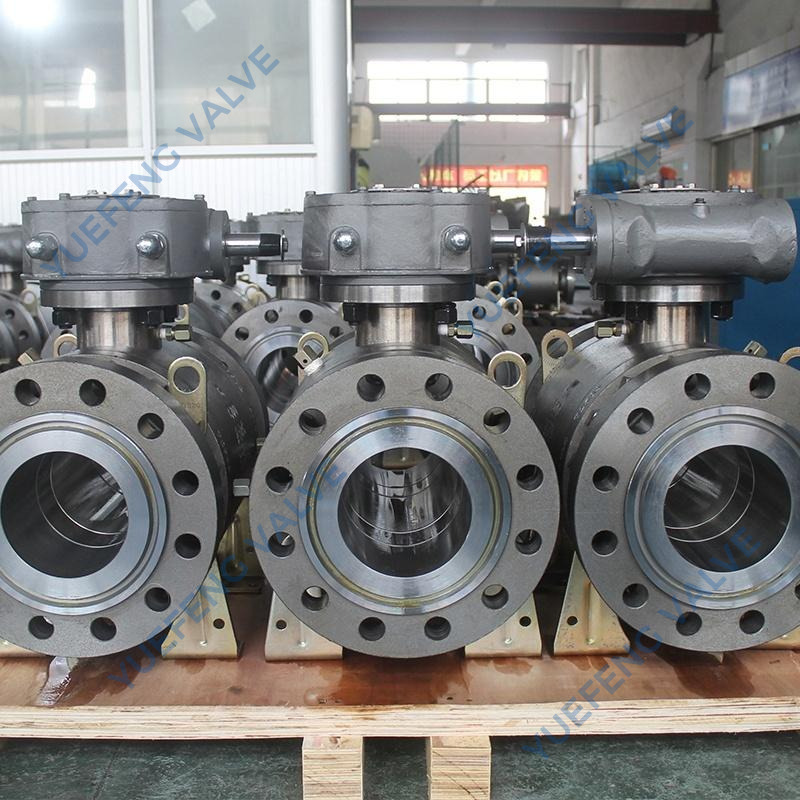

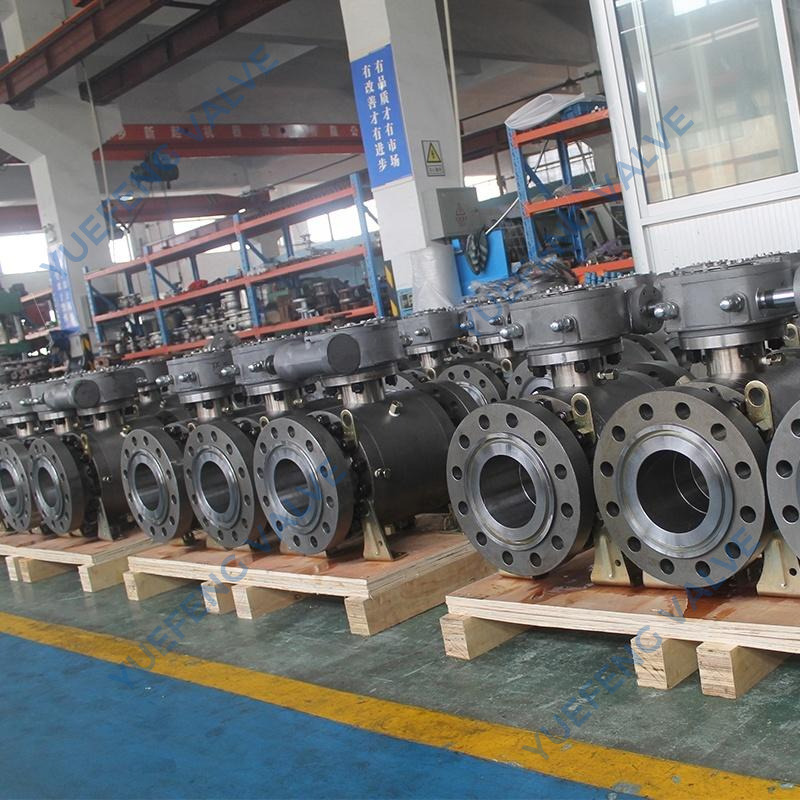

Product Overview

As a premier manufacturer and reliable supplier, we engineer the 600# 3-Piece Flanged Forged Steel Trunnion Mounted Ball Valve for critical pipeline integrity. This heavy-duty fluid control solution delivers uncompromising performance and safety in extreme high-pressure environments.

• Engineered for Class 600 pressure ratings in demanding infrastructure.

• Robust 3-piece forged steel bolted construction for maximum durability.

• Advanced trunnion-mounted architecture ensures low-torque, smooth operation.

• Fully compliant with API 6D and ASME B16.34 international standards.

Product Description

The 600# 3-Piece Flanged Forged Steel Trunnion Mounted Ball Valve represents the pinnacle of fluid control engineering, designed specifically to handle the rigorous demands of high-pressure pipelines and critical energy infrastructure. When examining the valve, the precision-machined forged steel body immediately conveys a sense of indestructible durability, characterized by a flawless, dense metallic finish that is completely free from the porous imperfections often found in cast alternatives. Operating this valve, even at massive 48-inch diameters under extreme Class 600 pressure, is remarkably smooth and silent. The internal trunnion architecture absorbs the immense thrust of the heavy flow media, translating into a quiet, low-friction rotation that requires minimal actuator force. This mechanical harmony not only extends the lifecycle of the internal seating but also significantly reduces operational overhead. Engineered for professionals who manage complex industrial fluid systems, this valve mitigates the risk of catastrophic leaks while ensuring continuous, reliable flow control. The tactile feedback of the secure flanged connections and the robust, heavy-duty weight of the three-piece bolted body assure project engineers of its capability to withstand severe mechanical stress, extreme thermal shocks, and aggressive corrosive attacks in the most demanding field environments.

Product Specifications

Key Features & Highlights

This premium trunnion mounted ball valve is meticulously engineered to solve complex fluid handling challenges. By integrating advanced mechanical features, it provides project operators with unparalleled control, safety, and longevity, significantly reducing the total cost of ownership for large-scale industrial installations.

• Double Block and Bleed (DBB): Allows operators to drain the central cavity while the valve is under pressure, enabling safe inline verification of seat integrity without shutting down the entire pipeline system.

• Anti-Static Mechanism: Built-in grounding devices eliminate the dangerous buildup of static electricity generated by fluid friction, preventing accidental ignition in volatile gas or chemical environments.

• Blowout-Proof Stem: The internally loaded stem design guarantees that the stem will not be ejected by internal pressure surges, ensuring absolute operator safety during unexpected system spikes.

• Emergency Sealant Injection: Strategically placed injection fittings on the stem and seats allow maintenance teams to instantly inject sealing compounds, temporarily restoring sealing integrity if the primary soft seals are damaged by debris.

• Low Fugitive Emissions: Precision-machined stem packing and secondary O-ring seals ensure strict compliance with modern environmental regulations, preventing hazardous gases from escaping into the atmosphere.

Structural Design & Maintenance Efficiency

The 3-piece bolted forged body design stands as the core architectural advantage of this product. For large-scale industrial procurement, minimizing system downtime is just as critical as the initial equipment investment. This intelligent structural layout transforms how field maintenance is executed, directly improving the operational bottom line.

• Inline Serviceability: When internal seals or seats require replacement, maintenance crews can simply remove the center body section while leaving the two end pieces securely bolted or welded to the pipeline.

• Drastic Downtime Reduction: By eliminating the need to cut the entire valve out of the piping system, facility managers can reduce maintenance-related downtime by up to 70%, keeping production flowing.

• Lifecycle Cost Optimization: The ability to easily access and replace internal wear parts extends the usable life of the valve body indefinitely, significantly lowering the comprehensive lifecycle costs for petrochemical and natural gas pipeline operators.

• Stress Distribution: The heavy-duty bolting across the three distinct forged pieces ensures that pipeline stress and thermal expansion forces are evenly distributed, preventing deformation of the central fluid cavity.

Trunnion Mounted Stability Under High Pressure

Operating within a Class 600 high-pressure environment demands structural stability that floating ball designs simply cannot provide. The trunnion-mounted architecture utilizes upper and lower anchoring shafts to absorb the massive thrust generated by high-velocity media, protecting the internal components from premature failure.

• Zero Seat Crushing: Because the ball is fixed in place by the trunnion shafts, the fluid pressure cannot push the ball downstream. This prevents the ball from crushing the downstream seat, dramatically extending the lifespan of the soft sealing materials.

• Reduced Operating Torque: By absorbing the dynamic fluid load, the trunnion design reduces the required operating torque by 40% to 50% compared to standard valves. This allows for smooth, effortless operation even at massive 48-inch diameters.

• Actuation Cost Savings: The significantly lower torque requirement allows procurement specialists to specify smaller, more economical pneumatic or electric actuators, reducing the overall package footprint and upfront automation costs.

• Consistent Performance: The mechanical stability ensures that the valve opens and closes with predictable precision every time, eliminating the jerky, sticking movements often associated with high-pressure fluid control.

Forged Material Durability in Harsh Environments

Material integrity is the foundation of pipeline safety. By utilizing high-strength forged steel (such as ASTM A105N, A350 LF2, and A182 F316), this valve completely eliminates the inherent risks associated with traditional casting methods, providing a flawless defense against extreme industrial conditions.

• Flawless Structural Density: The high-pressure forging process compresses the steel grain structure, completely eradicating internal defects like shrinkage cavities, porosity, or sand inclusions that can lead to sudden pressure ruptures.

• Superior Pressure Containment: The dense molecular structure of the forged body provides exceptional tensile strength, making it the perfect containment vessel for aggressive Class 600 pressure surges.

• Corrosion and Impact Resistance: Whether exposed to the corrosive salt spray of an offshore drilling platform or the abrasive nature of chemical processing, the premium forged materials offer superior resistance to environmental degradation.

• Extreme Temperature Adaptability: Depending on the specific forged alloy selected, the valve maintains structural integrity across extreme temperature fluctuations, from cryogenic -46℃ conditions to blistering +200℃ applications.

Ultimate Safety & Fire-Safe Compliance

In the energy and chemical sectors, safety is the absolute baseline. This valve is engineered with a comprehensive suite of protective features designed to prevent catastrophic failures, protect human life, and secure valuable infrastructure during worst-case scenarios.

• Certified Fire-Safe Design: Strictly adhering to API 607 and API 6FA standards. If a fire destroys the primary soft PTFE/Nylon seats, a secondary precision-machined metal lip engages the ball, creating a secure metal-to-metal seal that prevents flammable media from fueling the fire.

• Sour Gas (H2S) Resilience: All wetted metallic components and bolting are carefully selected and heat-treated to comply with NACE MR0175 / ISO 15156 standards, ensuring absolute immunity to sulfide stress cracking in hazardous sour gas environments.

• Fail-Safe Pressure Relief: The independent spring-loaded seat rings are designed to automatically relieve excess cavity pressure caused by thermal expansion, venting it safely back into the pipeline to prevent body rupture.

• Tamper-Proof Operations: Equipped with secure locking devices on lever-operated models, preventing unauthorized personnel from accidentally altering the flow state in critical pipeline junctions.

Superior Sealing & Zero Leakage Technology

Achieving absolute zero leakage is paramount for environmental compliance and process efficiency. This valve leverages a multi-tiered sealing system, combining advanced polymers with precision metallurgy to create an impenetrable barrier against fluid and gas migration.

• Advanced Seat Materials: Procurement teams can select from a wide array of high-performance seat inserts—including PTFE, RPTFE, Devlon, PEEK, or Nylon—tailored precisely to the chemical compatibility and abrasion resistance required by the specific media.

• Metal-to-Metal Options: For applications involving severe abrasives, high temperatures, or solid particulates, the valve can be configured with hardened metal seats (such as Tungsten Carbide coating), ensuring a tight seal where soft polymers would quickly degrade.

• Dynamic Spring-Loaded Seats: The seat rings are backed by heavy-duty coil springs that constantly push the seats against the ball. This ensures a perfect low-pressure seal even when there is not enough line pressure to force the seats into position.

• O-Ring and Graphite Redundancy: The stem and body joints utilize a dual-seal design, combining elastomeric O-rings for primary sealing with flexible graphite rings for secondary, high-temperature backup, ensuring strict adherence to low fugitive emission standards.

Global Standards Certification & Flexible Customization

Every major industrial project has unique specifications. This product is not just a standardized component; it is a highly adaptable fluid control platform built upon a foundation of internationally recognized engineering standards, ensuring seamless integration into any global project.

• Rigorous API & ASME Compliance: Designed, manufactured, and tested in strict accordance with API 6D, ASME B16.34, and API 598, ensuring universal acceptance by global engineering firms and regulatory bodies.

• Comprehensive Documentation: Every valve is supplied with complete Material Test Reports (MTRs), hydro-test certificates, and traceability documentation, streamlining the quality assurance process for site inspectors.

• Bore and Connection Versatility: Available in both Full Bore (for zero flow restriction and pipeline pigging) and Reduced Bore configurations. End connections can be customized to Raised Face (RF), Ring Type Joint (RTJ), or Butt-Welding (BW) to match existing piping schematics.

• Automation Readiness: The standard ISO 5211 mounting pad allows for the rapid, seamless integration of any major brand of pneumatic, hydraulic, or electric actuator, facilitating immediate deployment into automated SCADA control systems.

Why Choose Us

Partnering with a proven manufacturer guarantees more than just exceptional hardware; it ensures a reliable supply chain, profound technical support, and long-term project success. We are dedicated to empowering your operations through uncompromising quality and engineering expertise.

• State-of-the-Art Manufacturing: Utilizing advanced CNC machining centers and automated testing rigs, we ensure every forged component meets exact dimensional tolerances, eliminating assembly inconsistencies.

• Stringent Quality Control: Before leaving our facility, 100% of our valves undergo rigorous hydrostatic and pneumatic testing per API 598 protocols, guaranteeing zero-defect performance upon installation.

• Expert Engineering Support: Our dedicated team of fluid control engineers works directly with your technical staff to assist in material selection, torque calculations, and custom actuator sizing for complex applications.

• Reliable Global Logistics: With optimized inventory management and robust supply chain networks, we ensure on-time delivery for massive project rollouts, keeping your construction schedules strictly on track.

Frequently Asked Questions (FAQ)

How does the 3-piece bolted design specifically benefit maintenance operations?

The 3-piece bolted body allows maintenance personnel to remove the central section of the valve—containing the ball, seats, and stem—by simply unbolting it from the two end pieces. Because the end pieces remain permanently flanged or welded to the pipeline, there is no need to cut pipes or perform hazardous field welding. This inline maintenance capability reduces system downtime from days to mere hours, significantly cutting labor costs and production losses.

Why is forged steel preferred over cast steel for Class 600 applications?

Class 600 pipelines operate under immense pressure and stress. Cast steel, by its manufacturing nature, can harbor microscopic internal defects like porosity, sand inclusions, or shrinkage cavities, which act as weak points under high pressure. Forged steel is created by compressing solid metal under extreme heat and force, resulting in a dense, uniform grain structure with superior tensile strength. This guarantees absolute structural integrity and eliminates the risk of sudden pressure containment failure.

Is this valve suitable for handling sour gas and environments containing H2S?

Yes, the valve is fully compliant with NACE MR0175 / ISO 15156 standards. When specified for sour service, all pressure-containing parts, internal wetted components, and bolting materials undergo specialized heat treatment processes to control their hardness levels (typically below 22 HRC). This strict metallurgical control prevents Sulfide Stress Cracking (SSC) and Hydrogen Induced Cracking (HIC), ensuring safe operation in highly lethal H2S environments.

How does the emergency sealant injection system function during a seal failure?

If the primary soft seat rings or stem O-rings are scratched or damaged by hard debris flowing through the pipeline, the valve may begin to leak. The emergency injection system features external check valves connected to internal channels leading directly to the seating surfaces and stem packing. Maintenance crews can use a high-pressure gun to inject a specialized viscous sealant into these fittings, instantly filling the scratches and temporarily restoring a zero-leakage seal until permanent repairs can be scheduled.

Can this trunnion mounted ball valve be integrated into automated control systems?

Absolutely. The valve is designed with an integrated ISO 5211 direct mounting pad, which provides a standardized interface for automation. Because the trunnion design inherently requires much lower operating torque, it can be easily and economically fitted with a wide range of pneumatic, electric, or gas-over-oil actuators. We can supply the valve bare-stem or fully assembled and calibrated with your preferred brand of actuation and positioners for direct integration into your facility's distributed control system (DCS).
