| Quantity: | |
|---|---|

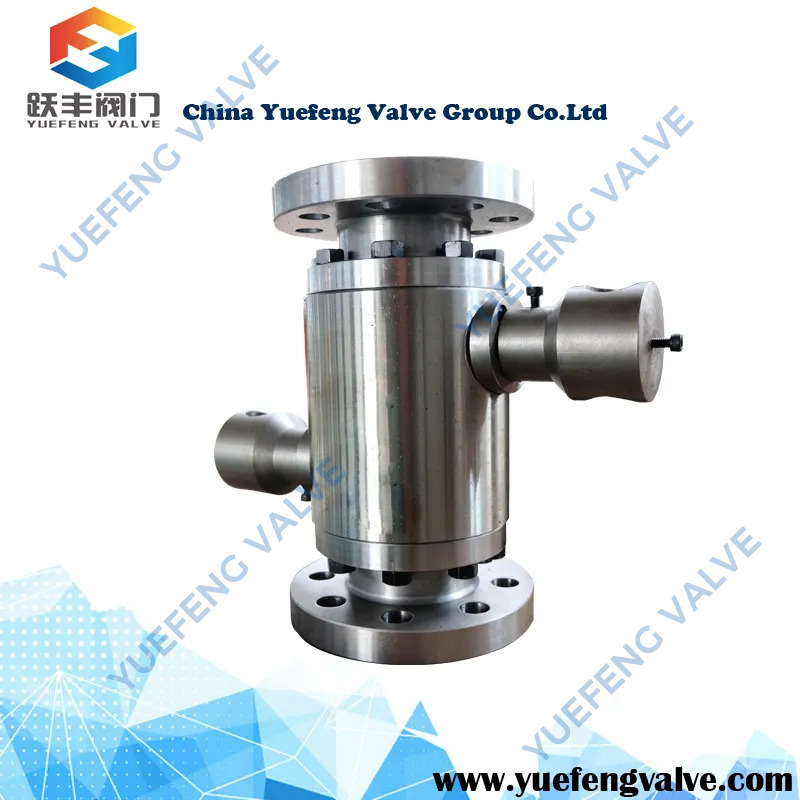

It has a robust construction that can withstand harsh operating conditions. The valve features a unique design that allows for easy installation and maintenance. The injection port is designed to minimize the pressure drop during the injection process, ensuring efficient fluid delivery. The valve is available in different sizes and pressure ratings to suit various application requirements. It can be customized with different end connections and actuator options to meet the specific needs of the user.
In the pharmaceutical industry, the Injection Ball Valve is used for injecting precise amounts of medications or additives into the production process. Its accurate flow control and hygienic design make it suitable for this industry. In the food and beverage industry, it is used for injecting flavors, colors, or preservatives into the products. In the automotive industry, it can be used for injecting lubricants or fuel additives into the engine systems. In the aerospace industry, it is used for injecting various fluids into the aircraft systems for maintenance and performance enhancement.
Q: What is the maximum pressure rating of the Injection Ball Valve?
A: The maximum pressure rating of the valve depends on its size and material of construction. Our Injection Ball Valves are available in a range of pressure ratings, from low - pressure applications up to high - pressure applications. It is important to select a valve with a pressure rating that is suitable for your specific application to ensure safe and reliable operation.
Q: Can the Injection Ball Valve be used for continuous injection?
A: Yes, the Injection Ball Valve can be used for continuous injection. However, it is important to ensure that the valve is properly sized and equipped with the appropriate flow control or metering devices to maintain a consistent flow rate during continuous injection.
Q: How do I select the right size of the Injection Ball Valve for my application?
A: The size of the valve should be selected based on the flow rate and pressure requirements of your application. Calculate the maximum flow rate of the fluid you need to inject and select a valve size that can handle that flow rate without excessive pressure drop. Also, consider the size of the pipeline or system into which the valve will be installed to ensure proper compatibility.
MAIN FEATURES
PRODUCT RANGE
Class 150 from ½'' to 10''
Class 300 from ½'' to 8''
Class 600 from 1/2" to 4"
MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,... Other materials under request
SOFT SEATS: PTFE, RPTFE, PEEK, DEVLON, NYLON,... Other materials under request
METAL SEAT: Tungsten Carbide(TC), Stellited, Ni60...Other materials under request.
TRIM: A105+EP,304,316, 410, MONEL,... Other materials under request
DESIGN STANDARDS
ASME Standards:
B1.20.1Pipe Threads, General Purpose(Inch)
B16.10 Face-to-Face and End-to-End Dimensions of Valves
B16.25Buttwelding Ends
B16.11Forged Fittings, Socket-Welding and Threaded
B16.5Flanged Fittings and Pipe Flanges
B16.47Large Diameter Steel Flanges
API Standards:
6DSpecifications for Pipeline valves
598Valve Inspection and Testing
607Fire test for soft-seated quarter-turn valves
6FASpecification for Fire Test for Valves
MSS Standards:
SP-55Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Radiographic Examination Method
SP-53Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Magnetic Particle Examination Method
| PRODUCT | SIZE | PRESSURE | POWER | BRAND NAME |

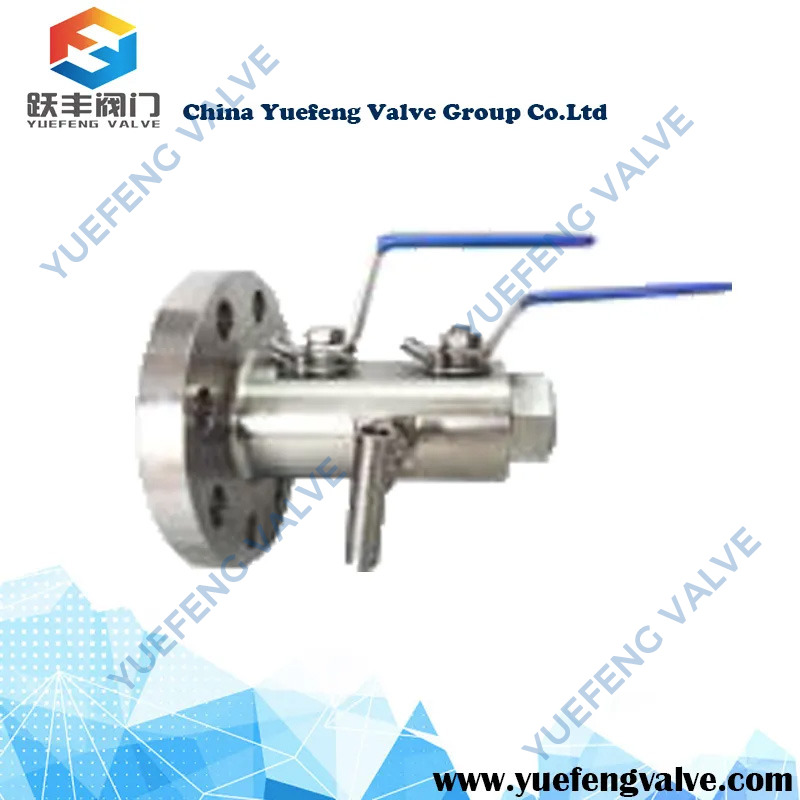

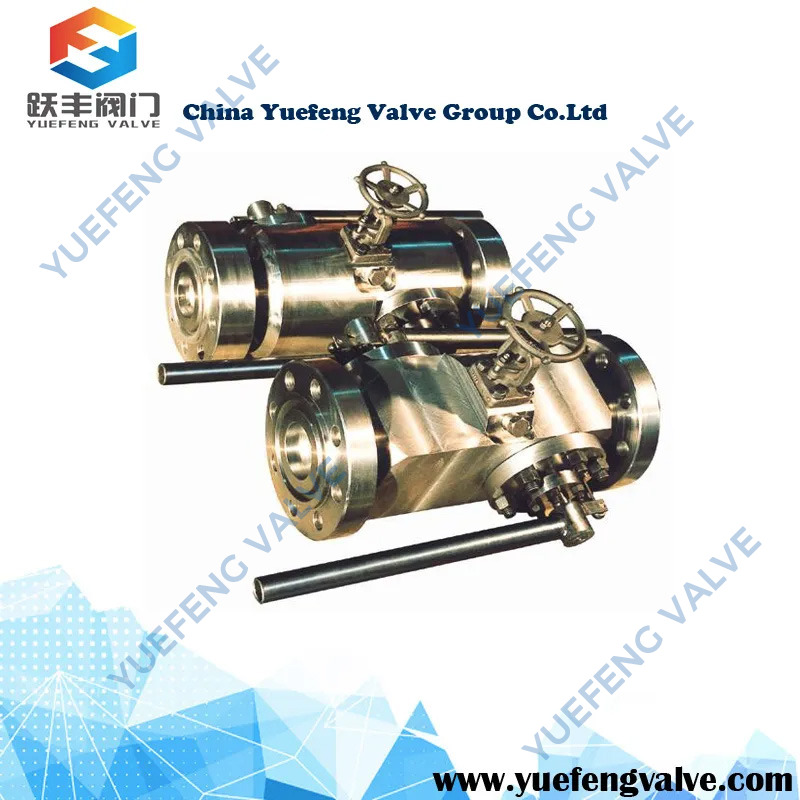

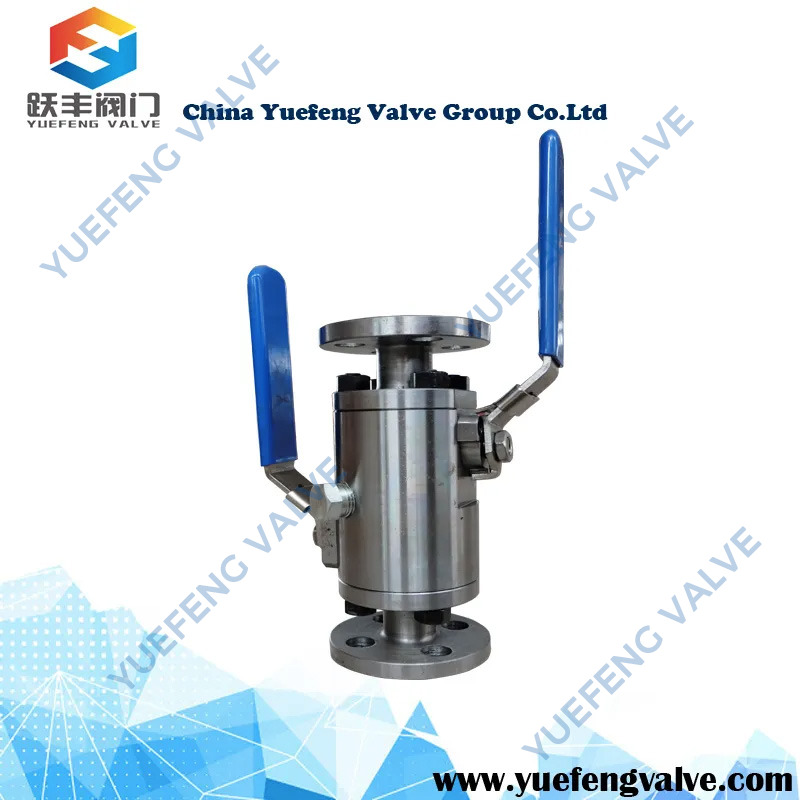

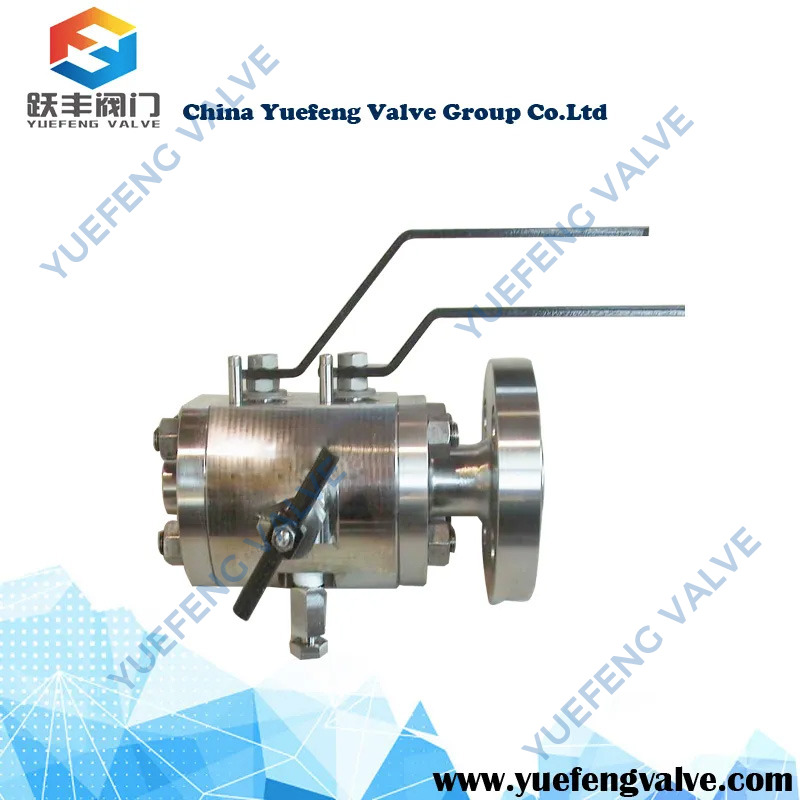

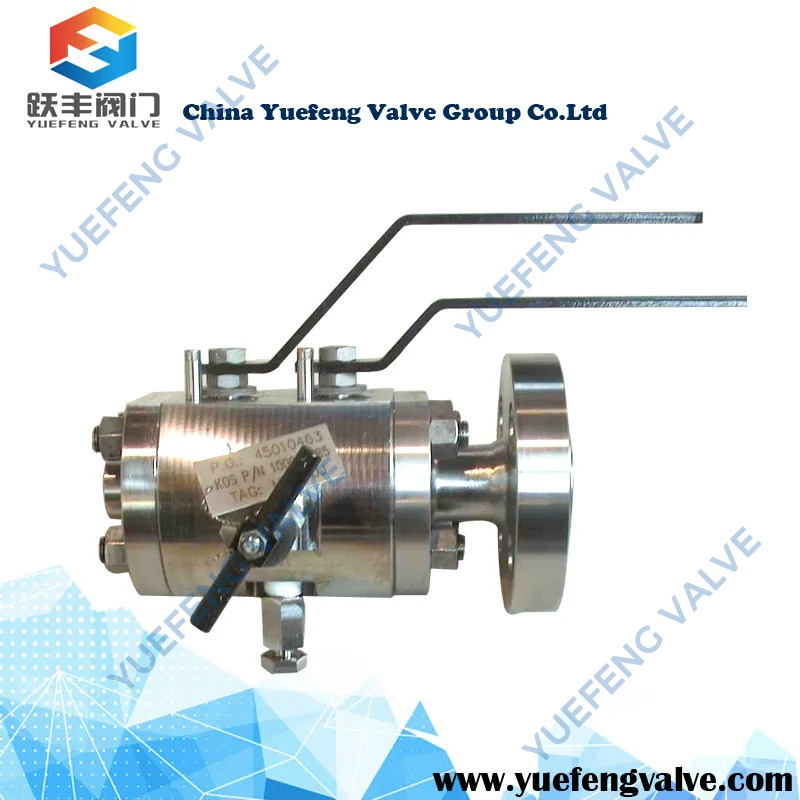

| DBB BALL VALVE | 1/2"-48" | 150lb-2500lb | WORM, PNEUMAITC, HYDRAULIC | YFV, OEM |
Production process
Certificates & Test reports
Packing&Shipping
