| Quantity: | |
|---|---|

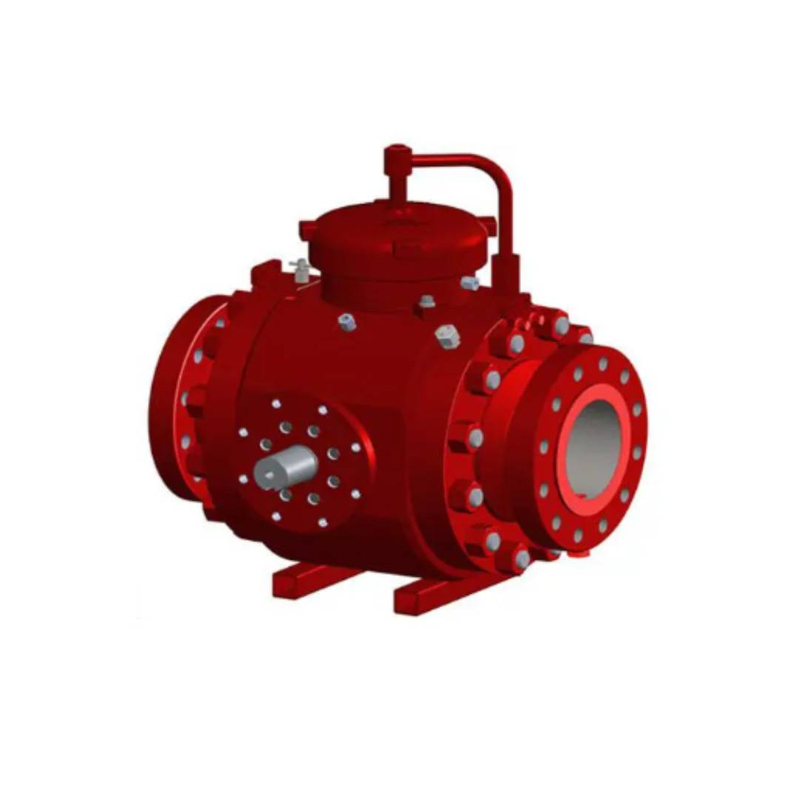

The flanges are made to international standards, ensuring easy installation and compatibility with different pipeline systems. The valve has a unique sealing mechanism that provides a tight seal even under high pressure and during pigging operations. The ball is coated with a special material to enhance its wear resistance and reduce friction. The valve can be operated manually or with an actuator, providing flexibility in different operating scenarios.
In the power generation industry, the Flange Pig Ball Valve is used in cooling water pipelines for pigging operations. This helps to keep the pipelines clean and free from debris, ensuring the efficient operation of the cooling system. In the marine pipeline systems, it is used for cleaning and maintaining the fuel and water pipelines on ships. The valve's ability to withstand the harsh marine environment makes it a reliable choice. In the industrial gas pipeline systems, it is used for pigging to remove impurities and ensure the quality of the gas being transported.
Q: What is the role of the sealing mechanism in the Flange Pig Ball Valve?
A: The sealing mechanism is crucial for preventing leakage during the operation of the valve. During pigging operations, the valve needs to be able to maintain a tight seal to ensure that the pig can move through the pipeline without any fluid escaping. The sealing mechanism also helps to protect the valve from damage caused by the high pressure and the movement of the pig.
Q: Can the Flange Pig Ball Valve be installed in a vertical pipeline?
A: Yes, the Flange Pig Ball Valve can be installed in a vertical pipeline. However, special care should be taken to ensure that the pig can move freely through the valve in the vertical orientation. The design of the valve and the pipeline layout should be considered to avoid any potential issues such as the pig getting stuck due to gravity or debris accumulation.
Q: How do I choose the right actuator for my Flange Pig Ball Valve?
A: The choice of actuator depends on several factors such as the operating pressure, the size of the valve, and the required speed of operation. Pneumatic actuators are suitable for applications where a quick response is required and where compressed air is available. Hydraulic actuators are ideal for high - pressure applications. Electric actuators are convenient for remote control and automation. Consider the specific requirements of your application to select the most appropriate actuator.
MAIN FEATURES
DN: 50(NPS2)~800(NPS32)
PN: 16(CLASS150LB)~260(CLASS1500LB)
Design Standard: API 6D/ANSI B16.34
Face To Face: ASME B16.10/ISO 5752/BS 558
Connection Standard: ASME B16.5/GB/T 9113.1/MSS SP-44/HG/T 20615
Buttweld: ANSI B16.25/GB/T 12224
Test&Inspection: API 6D/API 598/GB 13927
MAIN MATERIALS
Body & Bonnet&Disc: Carbon Steel, Alloy Steel, Stainless Steel, Low Temperature Steel
Seat Insert: VITON/PTFE/RPTFE/PEEK/NYLON/DEVLON/HARD FACING
Gasket: + GRAPHITE&STAINLESS STEEL
FEATURE
Structure: Pig Launching Valve+Pig Receiving Valve
Sealing Type:Soft/Preliminary Metal Sealing and Secondary Soft Sealing/Metal-To-Metal
End Connection: Flanged
Driven Type: Manual/ Pneumatic/ Electric/ Gas Over Oil
Application Field: Natural Gas/ Petroleum/ Offshore Platform/ Chemicals/ Sewage Treatment
| Brand: | Yuefeng |
| Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Certification: | CE/RoHS/ISO9001-2008 |
| Original | Lishui,Zhejiang Province |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union. |
| Port: | Shenzhen, Customers' Request |
| Delivery Time: | Within 15days after receiving T/T deposit Payment |
| Term of Delivery: | EXW/FOB/CNF/CIF, Customers' Request |

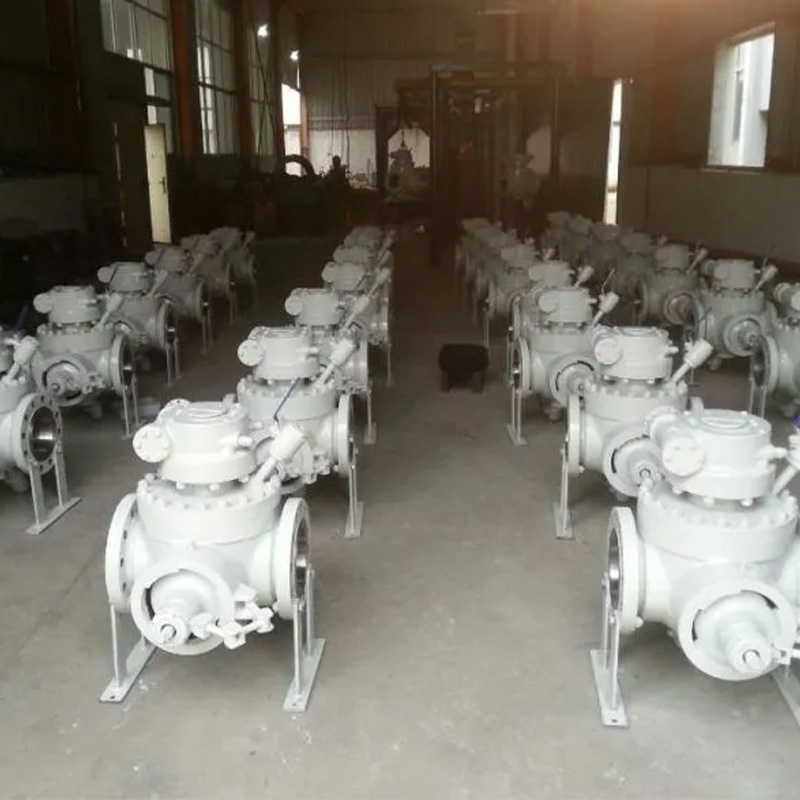

Production process
Certificates & Test reports
Packing&Shipping
