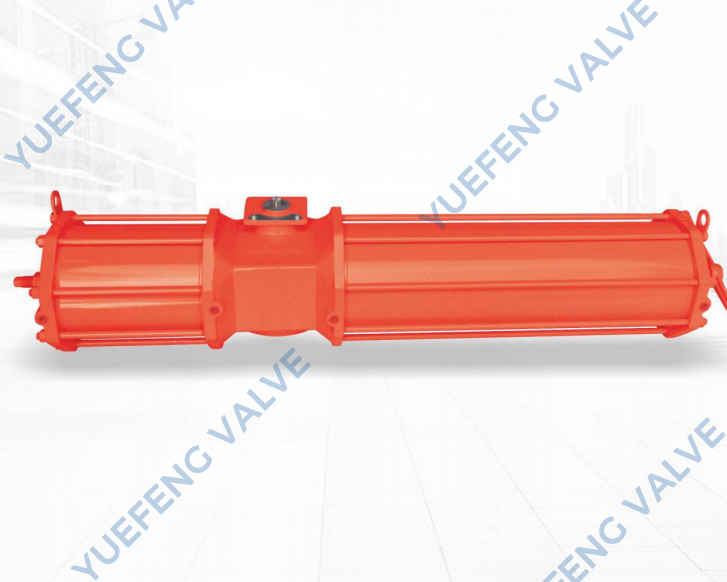

The AW series pneumatic actuator represents the pinnacle of heavy-duty valve automation, translating pneumatic energy into smooth, unyielding mechanical force. When you handle the robust cylinder block, the sheer weight and solid metallic resonance speak volumes about its structural integrity, designed specifically to conquer the most demanding industrial fluid control environments. The exterior finish is meticulously crafted to resist harsh atmospheric corrosives, while the internal mechanisms operate with a whisper-quiet efficiency that belies the immense power being generated. Every stroke of the double-piston synchronous action feels deliberate and flawlessly calibrated, eliminating the erratic jerks often associated with inferior pneumatic systems. By incorporating a fork-type transmission structure, this actuator effortlessly masters the U-shaped torque curve, delivering that crucial surge of power exactly when large-diameter ball and butterfly valves need it most—at the precise moments of opening and closing. The tactile smoothness of the hard chrome-polished piston rod gliding through oil-free bearings ensures an exceptionally low friction coefficient, translating to a longer operational lifespan and significantly reduced maintenance downtime. Whether integrating into a sprawling petrochemical refinery or a high-capacity water treatment facility, this actuator provides the unwavering reliability and precise 90-degree rotational control required to keep critical operations flowing seamlessly.
When the pressurized air source enters the air cavily ofthe cyinder le A and right A) from the ai pont(A), the two pistons and the
piston rod assembly move synchronously to the right end ofthe cylinder, orcing the spring assembly to compress,(let A and right A) B and right B) the ai
nthe ar cavly is discharged throuan the air por(B, and alhe same ime, he ision asembiy synchonousiy drves lhe lork shaltorolale counlercockwis
to complele the angular stroke of0” -90" .After the solenoid valve is venllalted, the ar source pressure generales elasic force from the spring assembly
athe pressure reliel(nightB) end ofthe air port (A), so that the two pistons and the piston rod assembly move toward the left end of the cylinder, and at the
same ime, the piston assembly synchronously drives the fork to rotate the shat. Rotate clockwise to complete the 90°-0° motion.
When the pressurized air source enters the air cavity of the cylinder (let A and ight A) from the air por (A), the two pistons and the
piston rod asembly move synchronouslyto the right end of the cylinder, forcing the spring assembly to compress, let A and right A)B and right B) the aii
in the air cavity is discharged through the air port(B), and at the same time, the piston assembly synchronously drives the fork shafto rotate counterclockwise
to complete the angular stroke of0”-90".After the solenoid valve is ventlated, the air source pressure generates elastic force from the spring assembl
atthe pressure relet rnight B) end othe air port (A, so that the wo pistons and the piston rod assembly move toward the left end othe cvlinder and atthe
same time, the piston assembly synchronously drives the fork to rotate the shaft, Rotate clockwise to complete the 90° -0° motion
Engineered to elevate operational efficiency and safeguard critical infrastructure, the AW pneumatic actuator integrates advanced mechanical principles to solve complex flow control challenges. By prioritizing durability and precise torque delivery, this unit minimizes the risk of valve jamming and system failure, ensuring your pipeline networks maintain optimal throughput without unexpected interruptions.
Optimized Torque Delivery: The specialized U-shaped output torque curve perfectly matches the mechanical resistance of large-scale valves, providing maximum force during the critical breakaway and seating phases to prevent leakage.
Frictionless Operation: Integrated oil-free bearings and premium guide rings drastically reduce internal friction, resulting in a remarkably smooth stroke that minimizes wear and tear on sliding components.
Corrosion-Resistant Internals: The inner cylinder walls feature either a hard chrome polish or a specialized Teflon coating, defending against moisture and particulate damage while extending the equipment's functional lifespan.
Synchronized Dual-Piston Action: Two separate cylinders operate in perfect harmony, guaranteeing a balanced distribution of force that eliminates lateral stress on the valve stem.
Versatile Accessory Integration: Designed to readily accept additional control accessories, allowing facility managers to customize the automation loop with precise monitoring and feedback mechanisms.

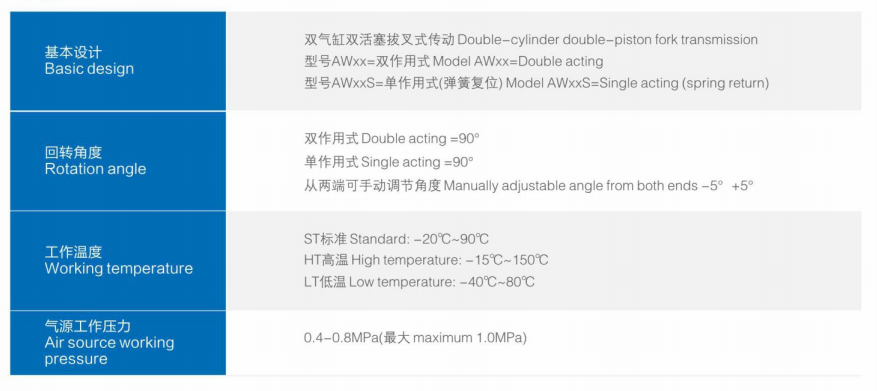

Understanding the intricate architecture and applied engineering behind the AW pneumatic actuator reveals why it stands as the definitive choice for heavy industrial applications. Each dimension of its design has been carefully optimized to deliver uncompromising performance and safety.
At the heart of the actuator lies a sophisticated dual-cylinder, double-piston mechanism paired with a Scotch yoke (fork-type) transmission. This compact yet highly scalable design makes manufacturing large-size cylinder blocks highly efficient.
Converts linear piston movement into a powerful 90° rotary motion with zero mechanical lag.
Ensures smooth, flexible action that prevents sudden pressure spikes within the pipeline.
Specifically engineered to handle the immense structural demands of heavy, large-diameter valve automation.
The internal synchronization of the AW series is a marvel of fluid dynamics and mechanical engineering. The precise routing of pressurized air dictates the flawless execution of every rotational stroke.
When the pressurized air source enters the air cavity of the cylinder (left A and right A) from the air port (A), the two pistons and the piston rod assembly move synchronously to the right end of the cylinder, forcing the spring assembly to compress.
The air in the opposite cavity is discharged through air port (B), and simultaneously, the piston assembly drives the fork shaft to rotate counterclockwise, completing the angular stroke of 0° to 90°.
After the solenoid valve is ventilated, the air source pressure generates elastic force from the spring assembly at the pressure relief end, moving the pistons toward the left end of the cylinder. The fork then rotates the shaft clockwise to complete the 90° to 0° return motion.
Industrial environments are unforgiving, which is why the material processing of this actuator is executed with exacting standards. The tactile finish of the internal components reflects a commitment to longevity and sustained performance.
Cylinder inner walls and piston rods undergo rigorous hard chrome polishing to achieve a mirror-like, wear-resistant surface.
Optional Teflon coatings provide an extra layer of chemical and moisture defense.
All internal sliding interfaces are fortified with oil-free bearings, drastically cutting down the friction coefficient and extending the overall service life under continuous operation.
The mechanical advantage of the Scotch yoke design shines through its unique performance metrics, specifically tailored for quarter-turn valves that require varying levels of force throughout their stroke.
Generates a distinct U-shaped torque curve, delivering peak power precisely at the 0° and 90° positions.
Overcomes the high static friction (breakaway torque) of tightly sealed ball and butterfly valves effortlessly.
Ensures tight, reliable shut-offs, preventing hazardous fluid seepage in high-pressure lines.
Seamless integration into existing control networks is paramount for modern facility upgrades. This actuator is built with universal compatibility in mind, streamlining the installation process for procurement and engineering teams.
Fully compliant with ISO 5211 valve connection standards for rapid, secure mounting.
Features NAMUR standard top and side interfaces for the effortless addition of control accessories.
Easily expandable with solenoid valves, limit switch boxes, electro-pneumatic positioners, and manual override gearboxes to create a comprehensive automated control loop.
In high-stakes industries like petrochemical processing, system failures are not an option. The control logic of the AW series is designed to protect your personnel and infrastructure during unexpected power or air supply losses.
Available in both double-acting and single-acting (spring return) configurations to match specific safety protocols.
During an air supply failure, the compressed spring assembly releases its stored elastic energy, automatically driving the fork shaft to rotate.
Instantly returns the valve to a predetermined safe position (Normally Open or Normally Closed), fulfilling strict fail-safe requirements in hazardous zones.
Built to thrive where standard actuators fail, this robust unit is the backbone of fluid control in some of the world's most demanding industrial sectors.
Widely deployed across oil and gas refineries, chemical processing plants, and metallurgical facilities.
O-ring sealed cylinder architecture completely eliminates air leakage, maintaining stable pressure even during rapid, high-frequency cycling.
Performs flawlessly across extreme temperature ranges, ensuring reliable fluid management in both sub-zero environments and high-heat industrial processes.
Selecting the right manufacturing partner for your industrial automation needs goes beyond simply comparing technical specifications. We provide a comprehensive procurement experience rooted in deep engineering expertise, stringent quality control, and a thorough understanding of heavy-industry demands. When you source your pneumatic actuators directly from our production lines, you are investing in long-term operational stability and unparalleled technical support.
Uncompromising Quality Assurance: Every single actuator undergoes rigorous pressure and torque testing before leaving our facility, ensuring it meets exact performance metrics and safety standards.
Direct Source Advantage: By streamlining the supply chain, we offer highly competitive pricing structures for large-scale projects without ever sacrificing material integrity or craftsmanship.
Tailored Engineering Solutions: Our technical team collaborates closely with your engineers to customize temperature ratings, coating options, and accessory packages to perfectly match your specific environmental challenges.
Reliable Global Fulfillment: We maintain robust production capacities and optimized logistics networks to ensure your critical components arrive on schedule, keeping your facility upgrades and maintenance turnarounds perfectly on track.
To assist your engineering and procurement teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding the AW series pneumatic actuator.
The U-shaped curve, inherent to the Scotch yoke (fork-type) transmission, provides maximum torque output at the beginning (0°) and end (90°) of the stroke. This is precisely when large ball and butterfly valves require the most force to overcome seating friction and fluid pressure, ensuring smooth opening and tight, leak-proof closing without the need to oversize the actuator.
In a single-acting (spring return) configuration, the actuator utilizes a built-in fail-safe mechanism. When pressurized air is lost, the mechanical energy stored within the compressed spring assembly is instantly released. This forces the pistons back to their original position, automatically driving the valve to a predetermined safe state (either fully closed or fully open) to prevent hazardous system overloads.
Yes, both the double-acting and single-acting models feature manually adjustable travel stops at both ends of the cylinder. This allows field technicians to fine-tune the rotation angle by -5° to +5°, ensuring precise alignment with the valve's internal seating and compensating for any minor installation variances.
Absolutely. The internal cylinder walls are treated with hard chrome polishing or a specialized Teflon coating, while the external housing is finished with industrial-grade anti-corrosive paint. For extremely aggressive atmospheres, we can provide further customized surface treatments to ensure long-lasting durability against chemical exposure.
The AW series is designed with standard NAMUR and ISO 5211 interfaces, making it highly versatile. You can easily mount a wide range of accessories, including solenoid valves for directional control, limit switch boxes for position feedback, electro-pneumatic positioners for proportional flow adjustment, and declutchable manual gearboxes for emergency manual operation.
