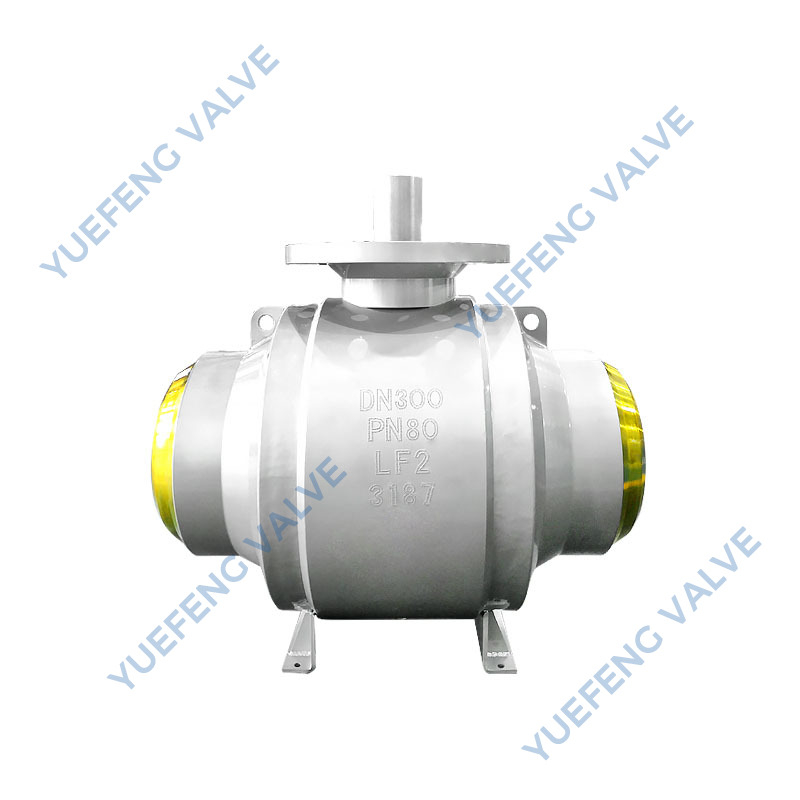

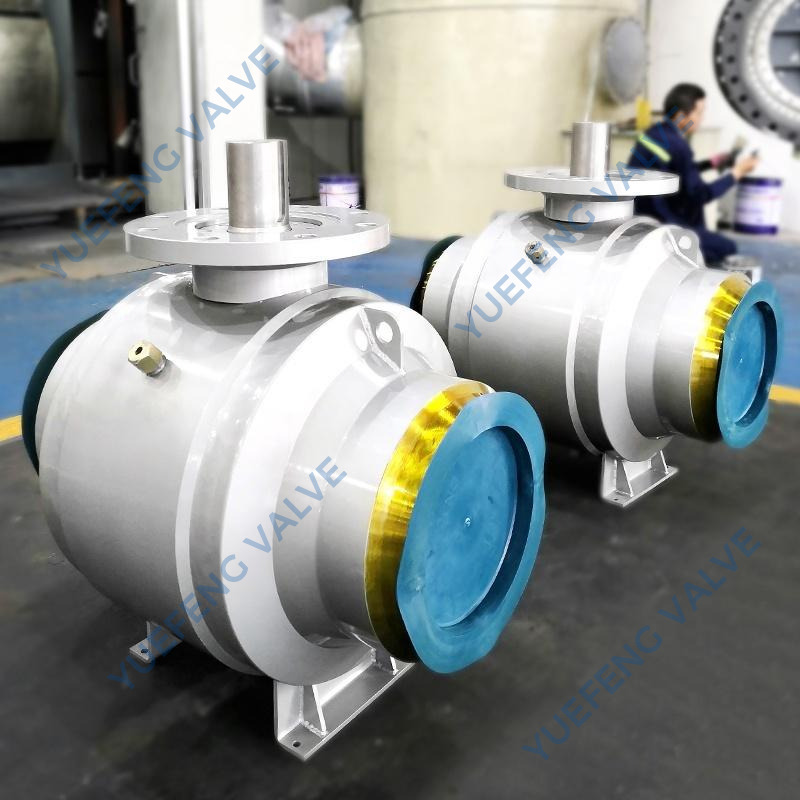

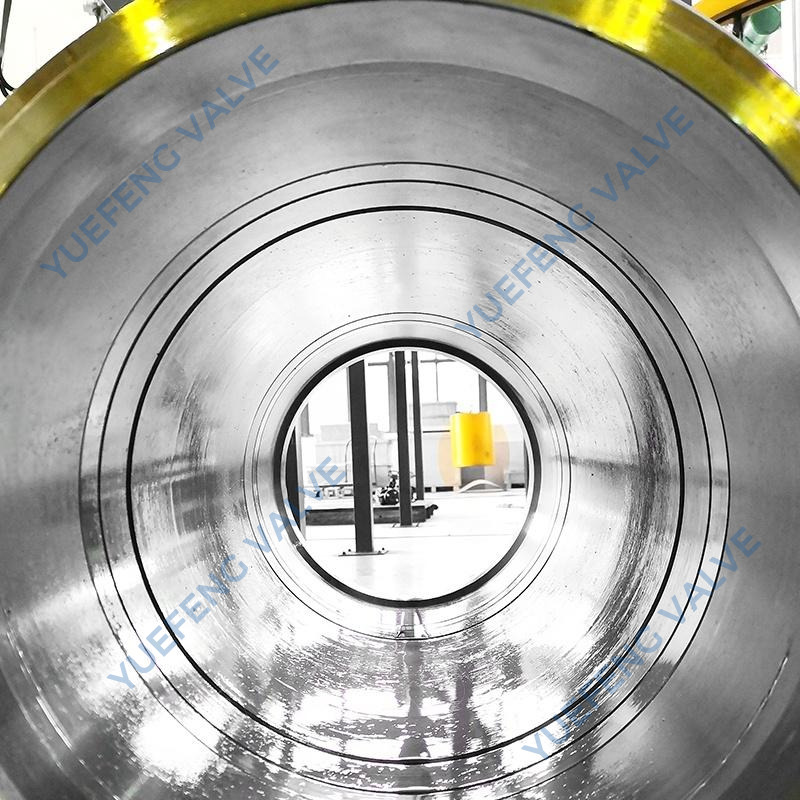

As a premier manufacturer and supplier of industrial flow control solutions, we present the Bare Stem High-Pressure Fully Welded Ball Valve. Engineered for rigorous pipeline integrations, this valve eliminates external leakage points through its seamless forged construction.
Direct-from-manufacturer structural integrity for high-stress applications.
ISO 5211 bare stem design for seamless automation integration.
Zero-leakage fully welded body optimized for bulk project procurement.
When managing critical fluid infrastructure, the physical integrity of your flow control components dictates the safety and efficiency of your entire operation. The Bare Stem High-Pressure Fully Welded Ball Valve is meticulously forged to deliver a seamless, robust industrial heft that instantly communicates unmatched durability. Running your hands along the smooth, continuous metallic contours of its fully welded body, you can feel the complete absence of traditional bolted joints—a deliberate engineering choice that permanently eradicates potential external leak paths. This seamless construction not only presents a visually streamlined profile but also ensures that volatile media, from pressurized natural gas to cryogenic liquids, remain absolutely contained within the pipeline architecture.
By eliminating the vulnerabilities associated with flanged or bolted connections, this valve dramatically transforms the reliability of your pipeline network. The bare stem configuration, crowned with a precision-machined ISO 5211 mounting pad, offers a tactile readiness for automation, allowing engineering teams to effortlessly drop in electric, pneumatic, or hydraulic actuators. The internal mechanics glide with a silent, frictionless precision, a testament to the self-lubricating bearings and heavy-duty trunnion design. Whether installed in a subterranean gas distribution network or a corrosive offshore platform, the inherent structural strength and flawless surface finish of this valve reduce maintenance interventions to near zero, safeguarding your operational continuity and protecting your bottom line against unexpected downtime.
Our engineering standards ensure that every dimensional and material specification meets the rigorous demands of global industrial projects. The following table details the precise technical parameters of the Bare Stem High-Pressure Fully Welded Ball Valve, providing procurement engineers with the exact data required for complex pipeline integration.
| Product Name | Bare Stem High-Pressure Fully Welded Ball Valve |
|---|---|
| Nominal Size | DN50 ~ DN1200 (2" ~ 48") |
| Nominal Pressure | Class 150 ~ Class 2500 (PN16 ~ PN420) |
| Body Material | Carbon Steel (A105, WCB, 20# steel), Stainless Steel (SS304, SS316), Alloy Steel, Duplex Steel |
| Seat Material | PTFE, RPTFE, PEEK, Devlon, Nylon, Metal-to-Metal |
| Connection Type | Butt Weld (BW), Flange (RF, RTJ) |
| Drive Mode | Bare Stem (with ISO 5211 standard mounting pad, supports gear, pneumatic, electric, hydraulic expansion) |
| Structure | Fully Welded Body, Trunnion Mounted / Floating |
| Applicable Temperature | -196°C ~ 427°C (Covering cryogenic to high-temperature conditions) |
| Applicable Medium | Water, Oil, Natural Gas, Liquefied Natural Gas (LNG), Chemical Solvents, etc. |
| Design & Manufacturing Standards | API 6D, ASME B16.34, GB/T12237 |
| Test & Inspection Standards | API 598, ISO 5208 |
| Safety & Environmental Certifications | API 607 / API 6FA (Fire-safe), ISO 15848-1 / API 641 (Low fugitive emissions), SIL 3 |
Engineered to elevate operational safety and streamline system integration, this valve integrates advanced mechanical features that directly address the most pressing challenges in fluid management. Every component is designed to maximize uptime and facilitate effortless control expansion.
Seamless Structural Integrity: The elimination of body flanges removes the risk of fugitive emissions, ensuring a pristine operational environment and compliance with strict environmental regulations.
Universal Actuator Readiness: The precision-machined bare stem configuration acts as a blank canvas for automation, allowing rapid deployment of custom actuation systems without the need for complex modifications.
Frictionless Operation: Internally equipped with self-lubricating bearings and highly polished spherical components, the valve operates with a smooth, silent rotation that minimizes wear and extends the mechanical lifespan.
Heavy-Duty Trunnion Support: The fixed ball design absorbs massive line pressures, preventing seat deformation and ensuring consistent, low-torque operation even under maximum load conditions.
Corrosion-Resistant Armor: The exterior is treated with industrial-grade protective coatings, providing a resilient shield against harsh atmospheric conditions, subterranean moisture, and saline offshore environments.
To fully understand the transformative impact this valve brings to industrial fluid networks, it is essential to examine its core engineering dimensions. Each aspect has been refined to deliver unparalleled performance, safety, and long-term economic value for large-scale infrastructure developments.
Adopting an integrated fully welded forged steel body design, this valve completely eliminates the potential external leakage points inherent in traditional bolted or flanged connections. In high-pressure and high-risk applications such as natural gas transmission, urban heating, and submarine pipelines, it guarantees the absolute isolation of the medium and the ultimate safety of the pipeline network.

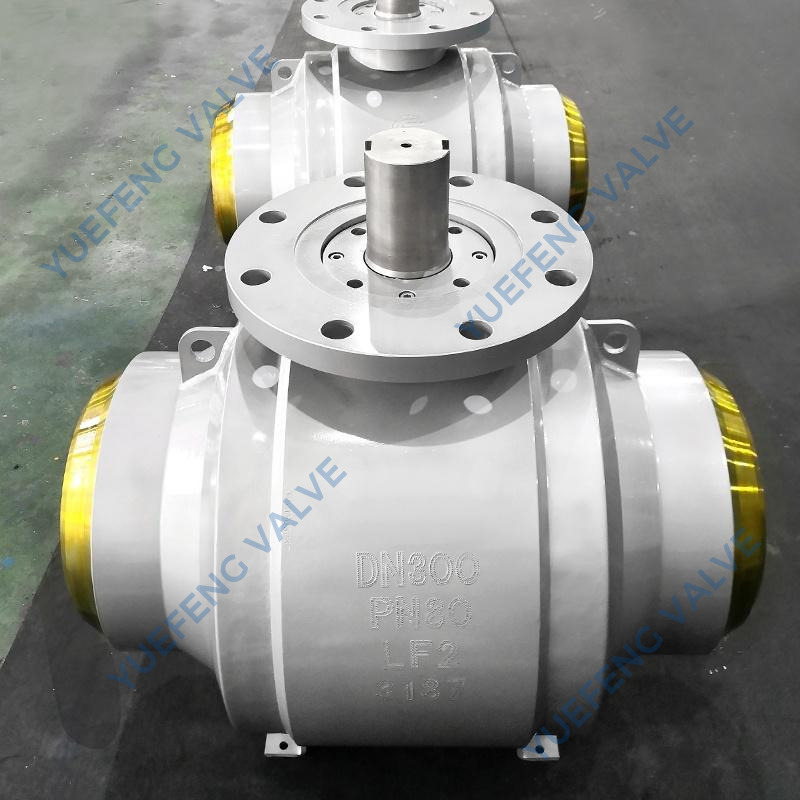

Exclusively engineered for system integrators and automation projects, it features a standard ISO 5211 top mounting pad. The bare stem configuration empowers procurement teams to flexibly and rapidly integrate various actuators based on exact site requirements.
Seamlessly accepts pneumatic, electric, hydraulic, or gear actuators.
Reduces inventory overhead by standardizing the base valve body.
Simplifies procurement complexity for multi-phase engineering projects.
Offering a comprehensive spectrum of seat options ranging from soft seals like PEEK and Devlon to robust Metal-to-Metal hard seals. This adaptability allows the valve to effortlessly conquer severe industrial environments.
Withstands ultra-high pressures up to Class 2500 without deformation.
Maintains tight shut-off in cryogenic LNG applications down to -196°C.
Resists abrasive media and high temperatures reaching 427°C.
Internally fortified with Double Block and Bleed (DBB) capabilities, an anti-blowout stem, and anti-static devices, while carrying standard API 607/6FA fire-safe certifications. It strictly adheres to ISO 15848-1 and API 641 standards for low fugitive emissions, directly assisting enterprises in achieving their energy conservation, emission reduction, and ESG environmental targets.
The synergy of a fully welded structure, self-lubricating bearings, and high-performance spring-loaded seats grants this valve a truly maintenance-free operational profile. It is exceptionally suited for scenarios with prohibitively high maintenance costs.
Ideal for direct-buried underground networks requiring zero excavation.
Proven reliability in deep-sea installations at 500-meter depths.
Design life exceeding 25 years to drastically lower the Total Cost of Ownership.
Manufactured in strict accordance with the highest international standards, including API 6D and ASME B16.34. Prior to dispatch, every single unit undergoes 100% rigorous API 598 pressure and sealing tests. It is fully capable of providing NACE MR0175 certification for hydrogen sulfide resistance and SIL 3 Safety Integrity Level certification, fulfilling the stringent entry requirements of top-tier global energy projects.
Selecting the right supplier for critical pipeline infrastructure is a decision that impacts decades of operational stability. We bridge the gap between heavy-duty industrial manufacturing and precise, client-focused engineering solutions, ensuring your procurement process is as seamless as our welded valves.
Direct Manufacturing Authority: By controlling the entire forging, machining, and welding process, we eliminate intermediary markups and guarantee uncompromising material traceability from the foundry to the final assembly.
Scalable Production Capacity: Our advanced manufacturing floors are equipped to handle large-scale volume orders simultaneously, ensuring timely delivery for expansive pipeline expansions and urgent infrastructure upgrades.
Custom Engineering Support: We do not just supply valves; our technical teams collaborate with your engineers to tailor dimensions, materials, and automation interfaces to the exact specifications of your fluid network.
Rigorous Testing Protocols: Every valve is subjected to punishing hydrostatic and pneumatic testing in our in-house laboratories, ensuring that the product you receive performs flawlessly under the most extreme pressure spikes.
Global Logistics Expertise: We possess the logistical infrastructure to securely crate, ship, and deliver massive industrial valves to remote project sites across the globe, maintaining the physical integrity of the product during transit.
To assist your engineering and procurement teams in making informed decisions, we have compiled detailed technical answers to the most common inquiries regarding our fully welded bare stem valves.
The bare stem design, equipped with an ISO 5211 mounting pad, provides ultimate flexibility. It allows project managers to standardize the valve body across a facility while applying different actuators—electric, pneumatic, or hydraulic—based on the specific power availability and control requirements of each individual pipeline node.
A fully welded body is the optimal choice for underground or direct-buried installations. Because it lacks bolted body joints, there is zero risk of soil moisture or subterranean pressure causing external leaks over time. The robust exterior coating combined with the seamless structure ensures decades of maintenance-free operation beneath the surface.
Absolutely. When configured with extended bonnets and cryogenic-grade materials like specialized stainless steel and PEEK seating, the valve maintains perfect dimensional stability and tight shut-off capabilities in liquefied natural gas environments plummeting to -196°C, preventing thermal contraction from compromising the seal.
Our valves are rigorously tested and certified to ISO 15848-1 and API 641 standards for low fugitive emissions. This guarantees that microscopic leaks of volatile organic compounds (VOCs) are kept well below stringent global thresholds, protecting the atmosphere and ensuring your facility meets all environmental compliance mandates.
In high-pressure lines, a floating ball is pushed aggressively against the downstream seat, causing severe wear and high turning torque. Our trunnion-mounted design secures the ball on a fixed vertical axis, absorbing the massive line pressure through the trunnion bearings rather than the seat. This results in significantly lower operating torque and exponentially longer seat life under Class 2500 pressures.
