The valve is available in different materials and finishes to suit various application requirements. It features a precision - machined ball that provides smooth and accurate flow control. The valve is easy to install and maintain, with a simple design that minimizes the number of components.
It is used in the beverage industry for the blending and distribution of different flavors and ingredients. In the cosmetics industry, it is used for the mixing and dispensing of liquid products. It is also used in the printing and dyeing industry for the control of dye solutions and water flow. In the mining industry, it is used for the handling of slurry and other fluids.
Q: What are the advantages of using a 3 - Way Ball Valve over other types of valves?
A: The 3 - Way Ball Valve offers several advantages, including low - flow resistance, excellent sealing performance, and the ability to handle a wide range of fluids. It also provides a compact and efficient solution for fluid control, reducing the need for multiple valves and complex piping arrangements.
Q: Can the valve be used for high - viscosity fluids?
A: Yes, the 3 - Way Ball Valve can be used for high - viscosity fluids. However, it is important to select the appropriate size and type of valve based on the viscosity of the fluid to ensure proper flow and operation. A larger - sized valve or a valve with a wider port may be required for high - viscosity fluids.
Q: How do I select the right material for the valve?
A: The selection of the material depends on the characteristics of the fluid being handled, such as its chemical composition, temperature, and pressure. For corrosive fluids, stainless steel or other corrosion - resistant alloys are recommended. For high - temperature applications, materials with high - temperature resistance should be chosen.
3-WAY BALL VALVE
STRUCTURAL CHARACTERISTICS
The three-way/four-way ball valve is provided with reliable sealing and smooth flow channel so as to ensure accuracy of opening and closing through small fluid pressure loss and stable flow channel. According to the forms of flow channel, the valve can be classified into "Y" pattern three-way ball valve, "L" pattern three-way ball valve, "T" pattern three-way ball valve and "LL" pattern four-way ball valve.
"Y" pattern Three-way Ball Valve(q42 Type)
The form of flow channel is "Y" pattern, which can effectively realize switching from service condition 1 to service condition 2. It is mainly used for switching "Y" pattern pipeline flow direction.
"L" Pattern Three-way Ball Valve(q44 Floating Type,Q49 Trunnion Type)
The "L" pattern therr-way ball valve is used for switching pipeline medium flow direction. It can connect two flow channels that are vertical with each other. The ordinary "L" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
STRUCTURAL FEATURES

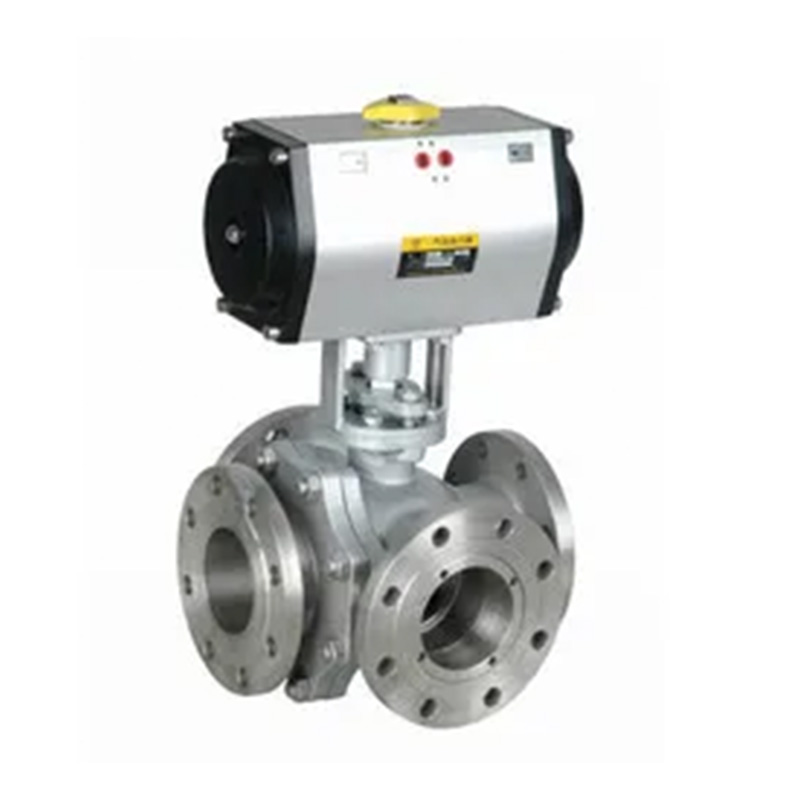

"T" Pattern Three-way Ball Valve(q45 Floating Type,Q48 Trunnion Type)
The "T" pattern three-way ball valve is used for switching, converging and diverging medium flow direction. The "T" pattern ball channel can make three channels connect with each other or two of them connect with each other to realize two, three of found kinds of functions. Different valve designs are adopted to realize different functions. Therefore, users shall make detailed descriptions to the service requirements when selecting and ordering the "T" pattern three-way ball valve, so that our company can make designs and configurations correctly. The ordinary "T" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
"LL" Pattern Four-way Ball Valve
The "LL" pattern four-way ball valve is provided with four seats to realize switching from service condition 1 to service condition 2. It can simultaneously switch the flow direction of two media, which realizes the effect of multiple functions in one valve with convenience and swiftness.
The work form is shown as follows:
1. When A(C) is the inlet, the two connections of A →B(C→D) or A→C(C→A) can be realized.
2. A cannot be realized.
3. A→D(C→B) or D→A(B→C) is impossible.

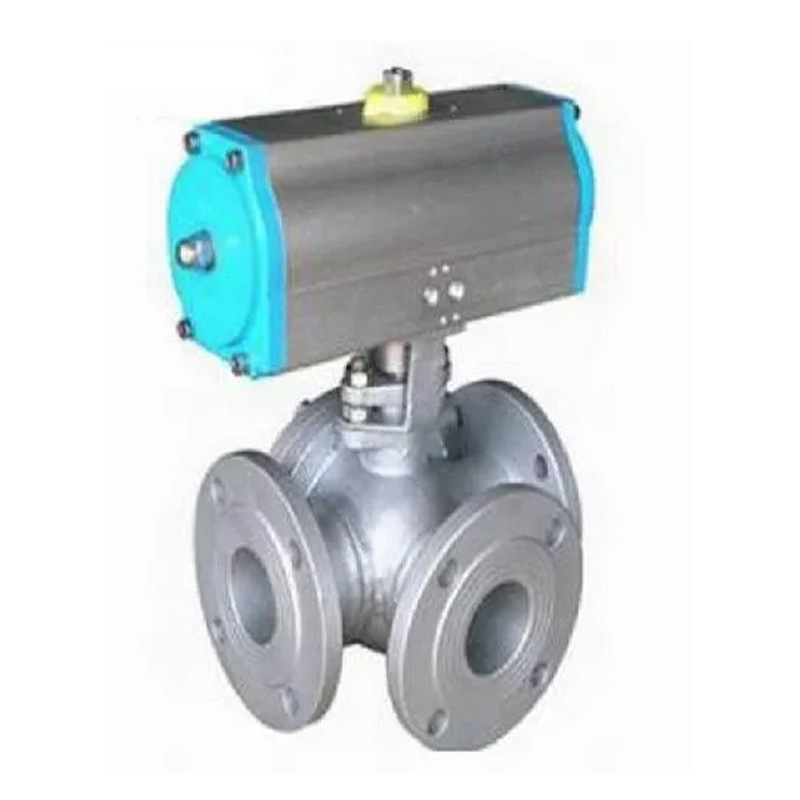

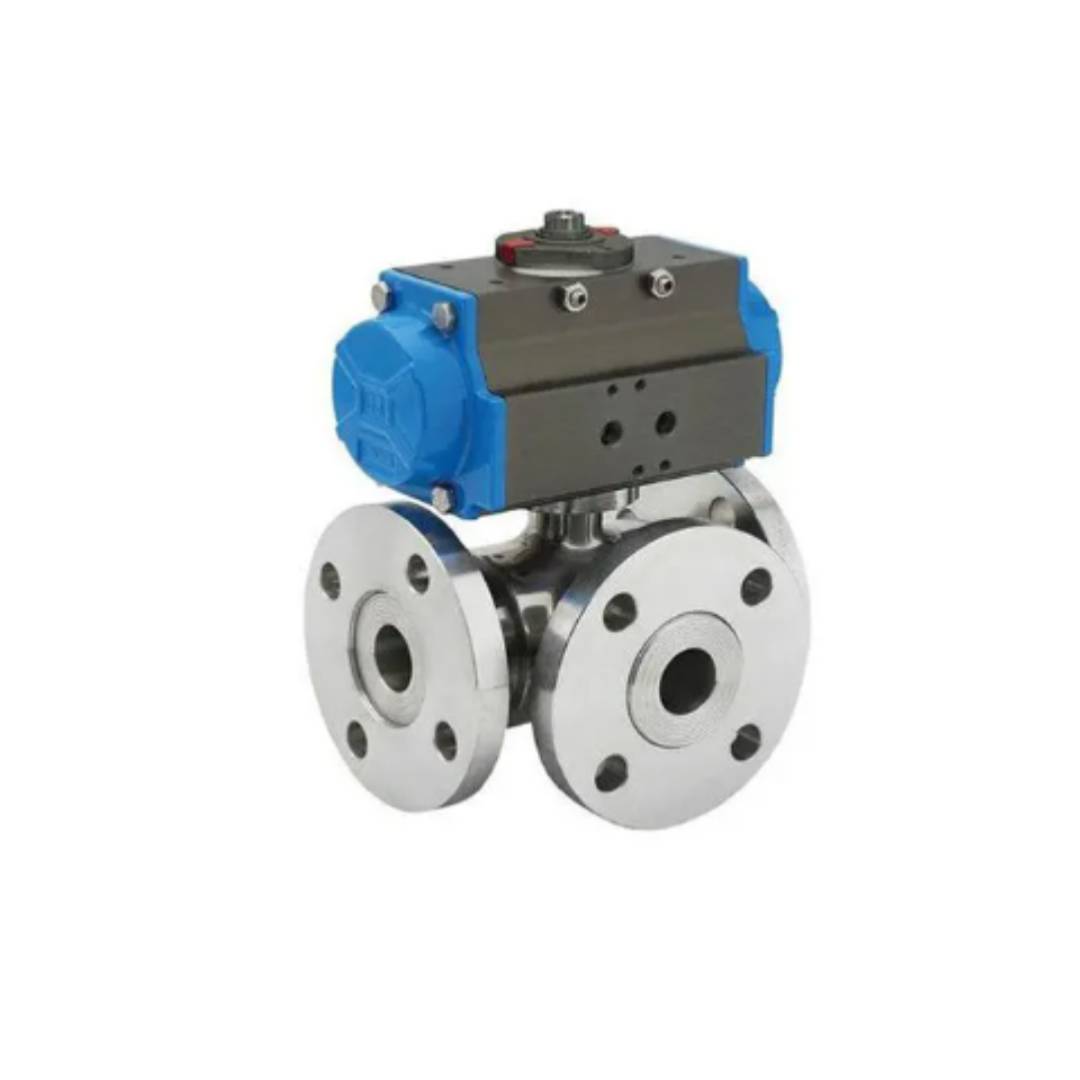

| Name | T Type Three Way Ball Valve |
| 1.Size | 1/2"-16" |
| 2.Pressure | 150LB-900LB, 1.6MPa-10MPa |
| 3.Material | WCB, LCB, 304/CF8, 316/CF8M, 316L/CF3M, A105, etc |
| 4.Temperature | -20-350 |
| 5.Design Standard | API, JIS, DIN or manufacturing according to your requirements |
| 6.Operation | Pneumatic |
