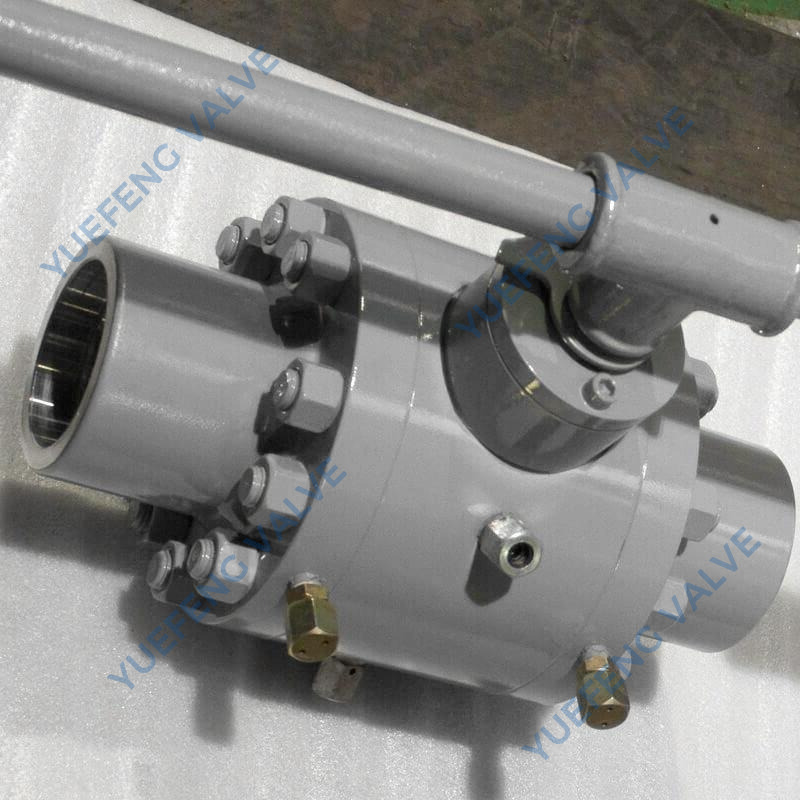

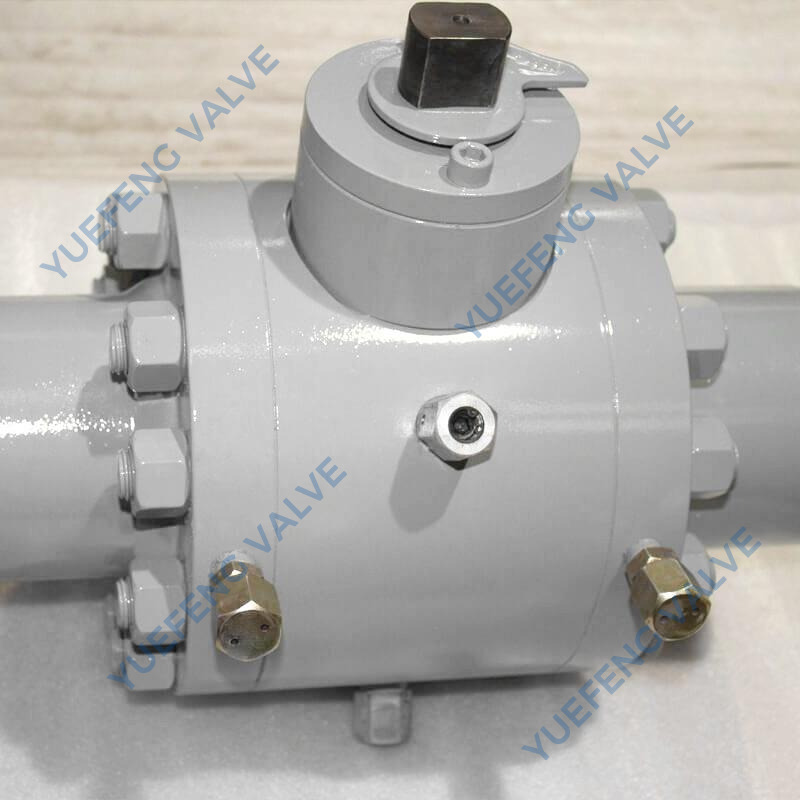

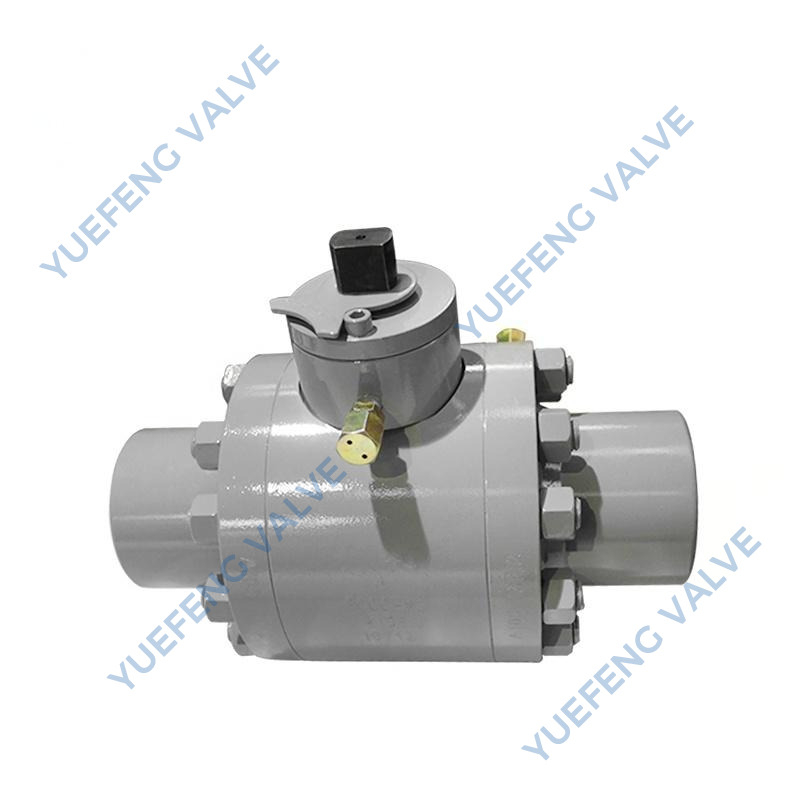

As a premier manufacturer and direct supplier of industrial fluid control solutions, we present the Butt-Weld Trunnion Mounted Ball Valve. Engineered for high-stress pipeline integration, this valve delivers uncompromising shut-off capabilities for critical infrastructure.
Direct Source Advantage: Procure directly from the manufacturer for optimized project cost-efficiency and reliable lead times.
Seamless Integration: Butt-weld ends completely eliminate potential leak paths associated with traditional flanged connections.
Heavy-Duty Actuation: Trunnion-mounted architecture ensures significantly reduced operating torque, even in ultra-high-pressure transmission lines.
When managing volatile fluids under extreme pressures, the structural integrity of your pipeline is paramount. The Butt-Weld Trunnion Mounted Ball Valve is engineered to provide an impenetrable barrier, seamlessly fusing with your existing piping infrastructure. Unlike traditional flanged connections that introduce potential leak points, require constant retorquing, and demand regular gasket replacements, the butt-weld design creates a continuous, high-strength metallic continuum. This translates to a profound reduction in fugitive emissions and maintenance overhead, ensuring your facility operates with uninterrupted efficiency and maximum environmental safety.
The tactile feedback of the smooth, low-torque actuation speaks volumes about the precision machining of the internal trunnion mechanism. As the highly polished sphere rotates, it glides effortlessly against the precisely contoured seats, delivering a satisfying, definitive shut-off sound that operators trust. Whether subjected to the biting chill of cryogenic processing or the searing heat of petrochemical refining, the robust housing maintains its dimensional stability. By eliminating heavy, bulky flanges, this valve also significantly reduces the overall weight of your piping assemblies, easing installation burdens and minimizing structural stress on pipeline supports. It stands as the definitive choice for procurement specialists seeking a permanent, zero-leakage solution for critical underground networks or long-distance transmission systems.
| Parameter | Specification |
|---|---|
| Pipe Size | 2" - 48" (DN50 - DN1200) |
| Port Size | Full Bore / Reduced Bore |
| Pressure (Max) | Class 150 ~ Class 2500 (PN10 ~ PN420) |
| Working Temperature of Assembly | -46°C ~ 425°C (Depending on material and seals) |
| Valve Body | Carbon Steel (WCB, A105, LCB), Stainless Steel (CF8M, F316), Duplex Steel |
| Ball/Stem | Stainless Steel (SS304, SS316, F51), Carbon Steel with ENP |
| Stem Seals | PTFE, Graphite, FPM, Fluorocarbon |
| Ball Seats | PTFE, RPTFE, Nylon, Devlon, PEEK, Metal-to-Metal |
| Valve Rated Temperature | -29°C ~ 200°C (Standard soft seal), up to 550°C (Metal-to-metal high temperature) |
| Cycle Time | Depending on actuator specifications and size |
| Air Pilot Pressure | 3 ~ 8 Bar (For pneumatic actuators) |
| Air Connections | 1/4" NPT or 1/2" NPT |
| Actuator Seals | NBR / Viton |
| Weight | Depending on specific size and pressure rating |
| Connection Form | Butt-Weld (BW) - Compliant with ASME B16.25 standard |
| Driving Mode | Manual (Lever/Gear), Pneumatic, Electric, Hydraulic |
| Design Standard | API 6D, API 608, ASME B16.34, ISO 17292 |
Engineered for longevity and absolute reliability, this valve integrates advanced mechanical features that directly address the most demanding industrial challenges. Every component is meticulously crafted to ensure consistent performance, minimizing costly downtime and maximizing your operational output.
Zero-Leakage Integration: By welding directly to the pipeline, it eradicates the risk of flange gasket failures, offering a permanent, maintenance-free connection ideal for buried, subsea, or inaccessible lines.
Friction-Optimized Architecture: The fixed ball mechanism absorbs immense line pressure, transferring it to the robust body rather than the downstream seat. This drastically lowers operating torque, extending the lifespan of both the valve internals and the automated actuators.
Blowout-Proof Stem Design: Safety remains non-negotiable. The internally loaded stem ensures that even under severe pressure spikes or operational errors, the stem remains securely retained within the valve body, protecting personnel and surrounding equipment.
Double Block and Bleed (DBB): This critical feature allows for the simultaneous sealing of both upstream and downstream sides, enabling safe, in-line cavity pressure relief and verifying seat integrity without halting the entire process flow.
To meet the rigorous demands of modern industrial fluid transportation, our manufacturing process adheres to the highest global standards. The meticulous engineering behind every unit ensures that your procurement investment yields decades of reliable service across diverse and aggressive applications.
Material & Corrosion Resistance: Forged from high-strength carbon steel, stainless steel, or advanced duplex steel, with optional Electroless Nickel Plating (ENP) on the ball and stem. Fully NACE MR0175 compliant, it actively defies the aggressive corrosion typical of sour gas, petrochemicals, and harsh marine environments.
Sealing & Safety Mechanisms: Equipped with DBB/DIB capabilities, anti-blowout stems, and anti-static devices. The API 607 and API 6FA certified fire-safe design features a secondary metal-to-metal sealing mechanism that guarantees absolute safety and zero leakage during thermal emergencies or fire events.
Pipeline Integration & Butt-Weld Design: Featuring ASME B16.25 compliant butt-weld ends, it forms a high-strength, seamless continuum with your piping. This structural continuity eliminates flange leakage risks, making it the superior, fail-safe choice for high-pressure transmission and large-diameter fluid transport.
Temperature & Pressure Adaptability: Spanning an impressive Class 150 to Class 2500, this valve masters extreme conditions. With a curated selection of soft (PTFE/PEEK/Devlon) and metal-to-metal seats, it flawlessly controls media from cryogenic -46°C up to a searing 550°C.
Actuation & Automation Compatibility: The trunnion-mounted geometry inherently minimizes dynamic torque. Coupled with an ISO 5211 standard top mounting pad, it seamlessly integrates with manual gear, pneumatic, electric, or hydraulic actuators, drastically reducing your automation upgrade costs and improving system responsiveness.
Maintenance & After-Sales Service: Designed for operational continuity, it features an emergency sealant injection system for both seats and stems to instantly rectify minor seal damage caused by pipeline debris. Available in multi-piece or top-entry configurations, enabling rapid, in-line maintenance and significantly slashing facility downtime.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. As a dedicated supplier to global industrial projects, we combine decades of metallurgical expertise with rigorous quality assurance protocols to deliver unparalleled value to our clients.
Uncompromising Quality Control: Every single valve undergoes exhaustive hydrostatic and pneumatic testing before leaving our facility. Our certified quality management systems ensure that the product you install performs exactly as specified, under the most demanding conditions.
Direct Manufacturer Economics: By streamlining the supply chain and eliminating intermediaries, we offer highly competitive pricing structures for large-scale project outfitting and bulk procurement without sacrificing an ounce of material quality or craftsmanship.
Customized Engineering Solutions: We understand that no two pipelines are identical. Our dedicated engineering team collaborates directly with your technical staff to tailor materials, dimensions, and actuation setups to perfectly match your unique operational parameters.
Robust Packaging & Global Logistics: Industrial valves are heavy, precision instruments. We utilize reinforced, export-grade plywood casing and specialized internal dampening to ensure your order arrives in pristine condition, regardless of the global destination or transit method.
Navigating the technical nuances of high-performance pipeline valves can be complex. Below, we address the most critical inquiries from engineering and procurement professionals regarding our butt-weld solutions.
A: This highly robust valve is engineered for critical infrastructure where leakage is not an option. Primary applications include:
Long-distance oil and natural gas transmission pipelines.
Underground or buried pipeline networks where maintenance access is severely limited.
Petrochemical processing plants requiring high-pressure fluid isolation.
Power generation facilities handling high-temperature steam or cooling water.
A: Our valves are highly adaptable based on your specified materials and internal components:
Pressure: Capable of managing broad ranges from Class 150 up to Class 2500 (PN10 to PN420).
Temperature: Standard soft-seated models handle -29°C to 200°C. With specialized metal-to-metal seating, the maximum rated temperature can reach up to 550°C, while cryogenic modifications allow safe operation down to -46°C.
A: To minimize operational disruption and avoid immediate shutdowns, our valves are equipped with an emergency intervention system:
Sealant Injection: If the soft seat is scratched by pipeline debris, specialized sealing grease can be injected directly into the seat ring or stem area via the external injection fittings.
Temporary Restoration: This action creates an instant, temporary seal, allowing the pipeline to continue operating safely until scheduled maintenance or a full system shutdown can be arranged.
A: Proper installation is vital to prevent internal damage during the high-heat welding process:
Valve Position: Ensure the valve is in the fully open position during welding to protect the highly polished surface of the ball from weld spatter.
Temperature Control: Monitor the temperature of the central valve body closely. Excessive heat transfer can warp or melt the internal soft seals (such as PTFE or Nylon).
Active Cooling: Apply wet rags or active cooling mechanisms to the central body cavity area while welding the extended ends to the pipeline.
A: To guarantee safety, longevity, and strict regulatory compliance, our valves adhere to stringent international standards:
Design & Testing: Fully compliant with API 6D, API 608, ASME B16.34, and ISO 17292.
Fire Safety: Tested and certified to API 607 and API 6FA standards for reliable fire-safe performance.
Material Standards: Meets NACE MR0175 requirements for sour gas environments, ensuring maximum resistance to sulfide stress cracking.
