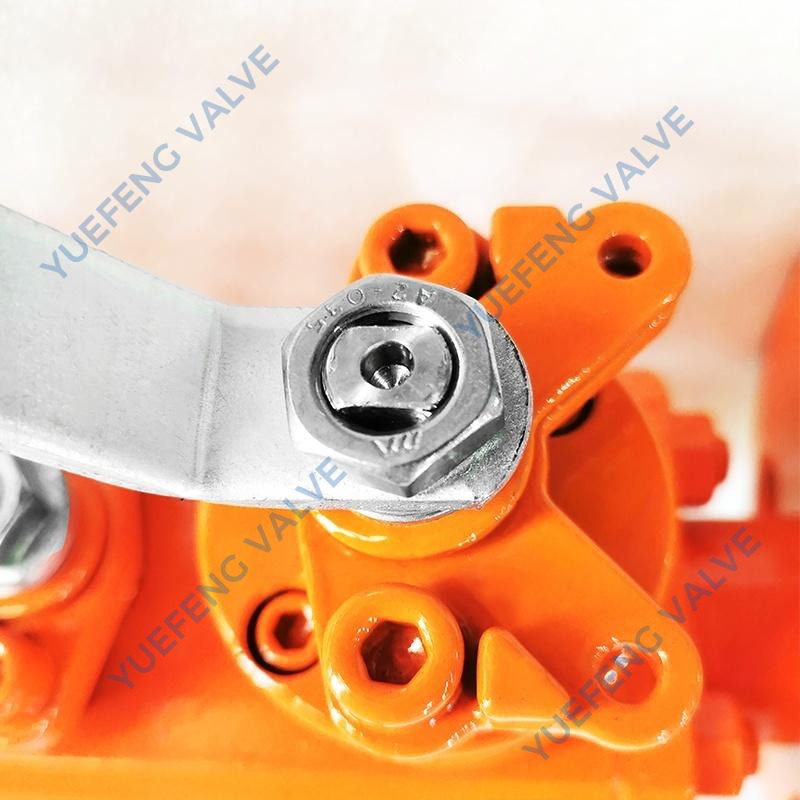

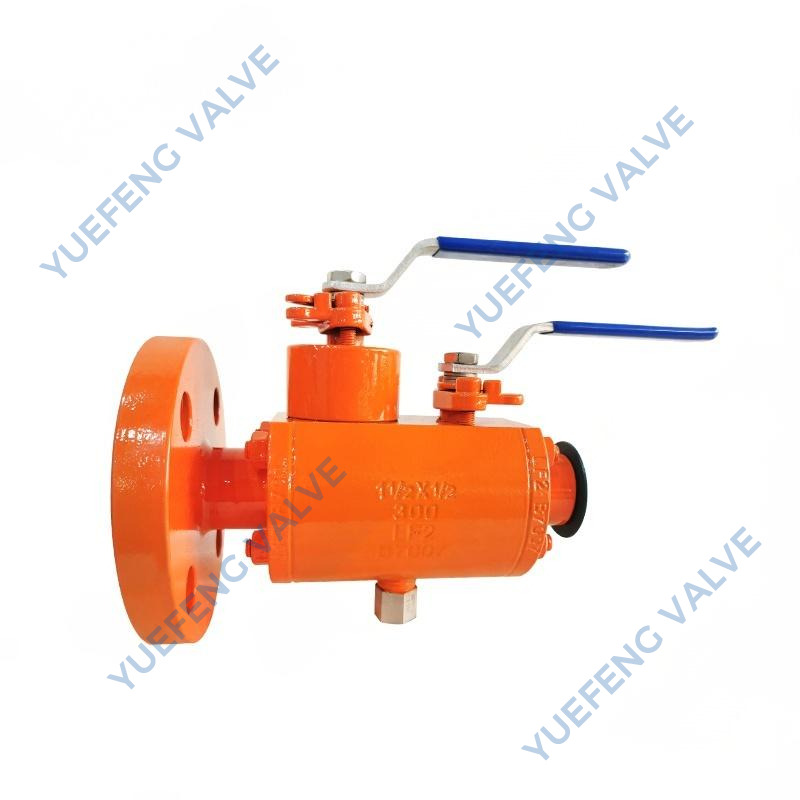

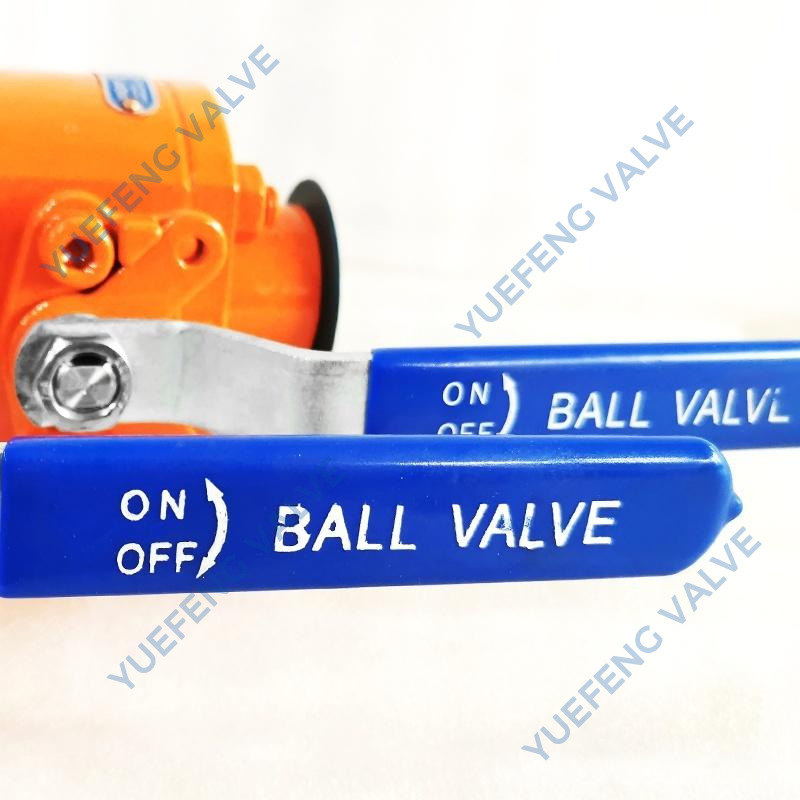

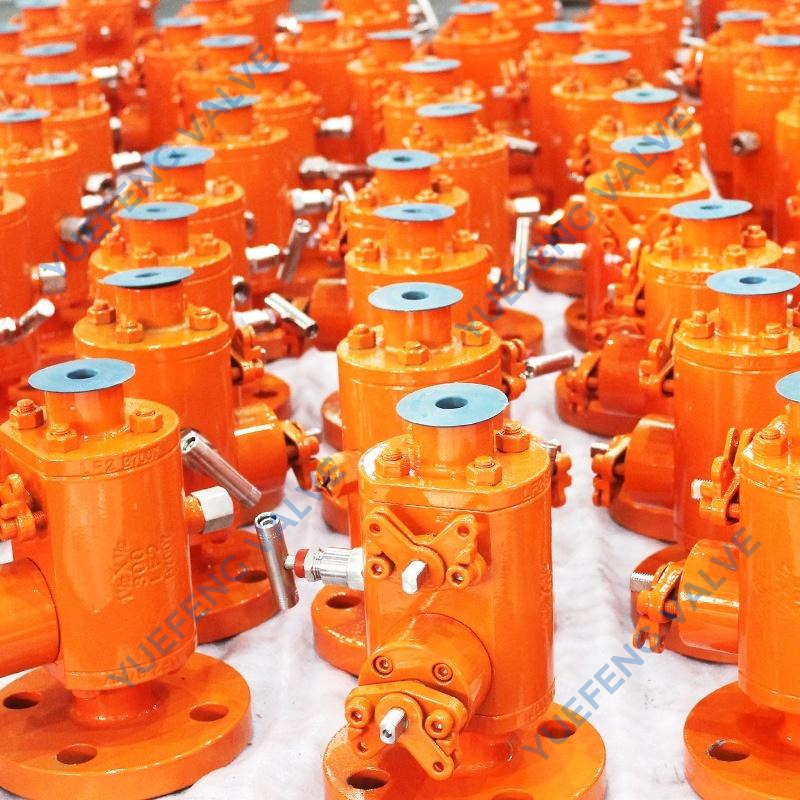

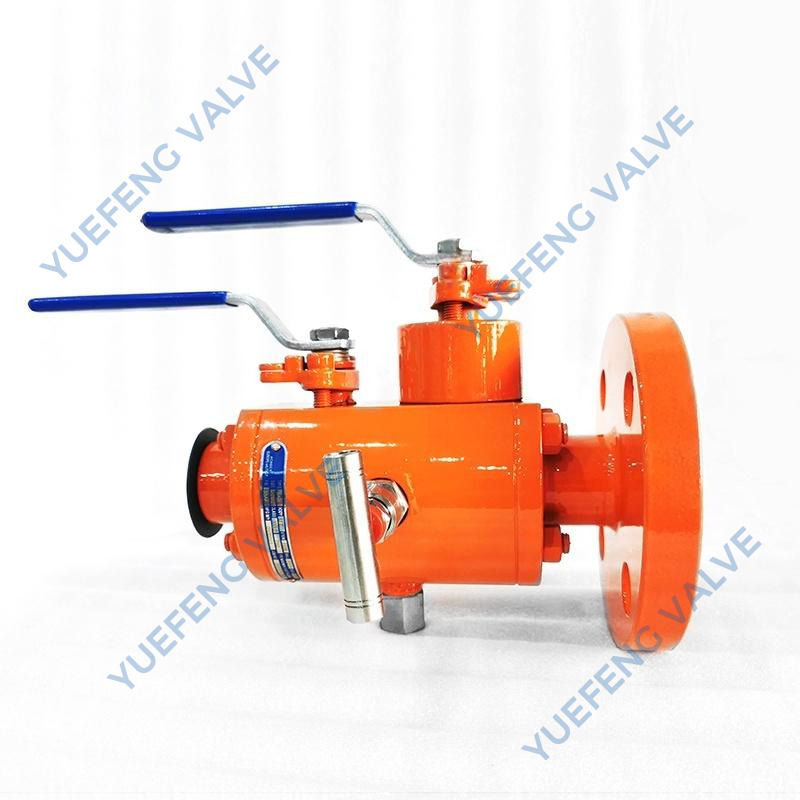

Double Block and Bleed (DBB) Ball Valve

When dealing with volatile hydrocarbons, aggressive chemicals, or high-pressure steam, standard isolation methods often fall short, leaving maintenance crews exposed to hazardous energy. The Double Block and Bleed (DBB) Ball Valve replaces the traditional, cumbersome two-valve-and-a-spool configuration with a singular, masterfully machined unit. Running your hands along the precisely cast and forged exterior, you can feel the heavy-duty metallurgical integrity that promises decades of uninterrupted service. The internal bore is polished to a mirror finish, ensuring that as the spherical closure members rotate into position, they glide with a silent, frictionless precision that instantly halts fluid momentum.

This architectural masterpiece of fluid dynamics is designed to solve your most pressing operational bottlenecks. By integrating two block valves and a central bleed valve into one solid body, it eliminates redundant flange connections, thereby stripping away excess weight and drastically reducing potential fugitive emission points. For procurement managers and project engineers tasked with outfitting sprawling petrochemical complexes or offshore platforms, this means accelerated installation timelines and a massive reduction in structural support requirements. The satisfying, firm resistance of the actuator engaging the stem translates to absolute control, giving operators the confidence that downstream pipelines are completely depressurized and safe for immediate maintenance. Every unit represents a seamless fusion of relentless engineering and practical application, delivering a fortified barrier against catastrophic leaks while keeping your operational budget strictly optimized.

Product Specifications

Key Features & Highlights

Engineering excellence is defined by how effectively a product mitigates risk while enhancing systemic efficiency. This DBB Ball Valve is meticulously crafted to serve as the ultimate fail-safe in your fluid transport network. By stripping away the vulnerabilities associated with traditional multi-valve setups, it delivers a streamlined, high-performance isolation solution that protects both your personnel and your bottom line.

• Uncompromised Structural Integrity: Forged and cast from premium-grade alloys, the heavy-wall construction absorbs intense vibrational stress and hydraulic shocks without deformation.

• Friction-Optimized Operation: The precisely machined spherical core and advanced seat polymers ensure a smooth, low-torque actuation, eliminating the harsh grinding sounds typical of inferior valves.

• Environmental Compliance: Engineered to meet stringent fugitive emission standards, keeping your facility compliant with global environmental regulations and preventing atmospheric contamination.

• Rapid Depressurization: The centralized bleed port allows for instantaneous venting of trapped cavity pressure, providing immediate visual confirmation of absolute isolation.

• Maintenance-Friendly Architecture: Whether opting for a top-entry or multi-piece design, internal components can be accessed and serviced with minimal disruption to the surrounding pipeline infrastructure.

Compact Design & Space Saving

Traditional isolation configurations require multiple valves, spools, and extensive bolting, creating a sprawling, heavy footprint. This integrated DBB Ball Valve revolutionizes pipeline architecture by condensing dual isolation and bleed capabilities into a singular, tightly engineered unit. The resulting space efficiency drastically lowers structural support costs and simplifies complex piping layouts.

• Footprint Reduction: Replaces the bulky three-component setup, freeing up critical real estate on offshore platforms, marine vessels, and crowded refinery floors.

• Weight Minimization: By eliminating redundant flanges and massive connecting pipes, the overall weight imposed on the pipeline infrastructure is significantly diminished.

• Fewer Leak Paths: A unified body design inherently reduces the number of mechanical joints, systematically eliminating potential failure points and fugitive emission sources.

• Accelerated Installation: Lifting, aligning, and bolting a single, perfectly balanced unit takes a fraction of the time compared to managing multiple heavy components.

Ultimate Safety & Protection

When handling lethal or highly flammable media, equipment failure is not an option. This valve is fortified with layers of mechanical safeguards designed to withstand catastrophic external events and internal pressure surges. Every component is subjected to rigorous metallurgical testing to guarantee absolute resilience when your facility faces extreme conditions.

• Blow-Out Proof Stem: The internally loaded stem architecture ensures that even under severe pressure spikes, the stem remains securely anchored within the body, preventing dangerous blowouts.

• Anti-Static Device: Built-in grounding mechanisms prevent the accumulation of static electricity, neutralizing the risk of spark-induced ignitions in highly explosive atmospheres.

• Certified Fire-Safe: Strictly adhering to API 607 and API 6FA standards, the secondary metal-to-metal seating guarantees a secure seal even if the primary soft seats are destroyed by intense flames.

• Cavity Relief Mechanism: Automatically and safely vents excess pressure caused by the thermal expansion of the trapped medium, preventing catastrophic body rupture.

Superior Sealing & Zero Leakage

The core promise of any isolation valve is absolute containment. Through a combination of advanced polymer science and micro-precision machining, this DBB valve achieves a flawless, zero-leakage barrier. Whether managing thin, penetrating gases or abrasive slurries, the dual-barrier system ensures that downstream maintenance crews can work with total peace of mind.

• Dual Barrier Assurance: Two independent sealing surfaces act in tandem; if the upstream seal faces unexpected debris, the downstream seal provides an impenetrable backup.

• Versatile Seat Options: Choose from resilient soft seats like PTFE and PEEK for bubble-tight gas sealing, or robust Metal-to-Metal seats for high-temperature and abrasive applications.

• Dynamic Loading: Spring-energized seat rings maintain constant, uniform pressure against the ball, compensating for wear and temperature fluctuations over years of continuous cycling.

• Visual Safety Verification: The integrated bleed valve allows operators to physically verify the integrity of the block seals before initiating any downstream maintenance.

Material Durability for Harsh Environments

Industrial fluids are notoriously unforgiving, capable of eating through standard metals in a matter of months. To combat aggressive corrosion, erosion, and extreme thermal cycling, this valve is available in an extensive matrix of high-performance alloys. The tactile solidity of the metallic housing speaks volumes about its ability to endure the harshest processing environments on the planet.

• Sour Service Ready: Fully compliant with NACE MR-01-75, making it highly resistant to sulfide stress cracking in high-sulfur natural gas applications.

• Marine-Grade Resilience: Options like Duplex Steel and SS316 provide exceptional resistance to chloride-induced pitting, perfect for offshore platforms and desalination plants.

• High-Pressure Mastery: Forged carbon steel variants (such as A105) easily handle the intense mechanical stress of 6000 psi systems without yielding or micro-fracturing.

• Chemical Inertness: Specialized internal coatings and alloy combinations ensure that acidic and alkaline media pass through without degrading the valve's structural integrity.

Wide Range & High Adaptability

No two industrial facilities are identical, which is why a one-size-fits-all approach is inherently flawed. This product line offers an exhaustive spectrum of sizes, pressure classes, and connection types, ensuring seamless integration into your existing infrastructure. From massive mainlines to delicate instrumentation tubing, the adaptability of this valve simplifies procurement and standardizes your operational hardware.

• Expansive Size Coverage: Ranging from compact 1/2" units for sampling lines up to massive 48" behemoths for primary pipeline isolation.

• Extreme Pressure Ratings: Engineered to perform flawlessly across a broad spectrum, from standard ANSI Class 150 up to the punishing demands of Class 2500.

• Versatile Connectivity: Available with Flanged (RF, RTJ) for easy maintenance, Butt Weld (BW) for high-pressure permanence, or Threaded (NPT) for quick instrumentation hookups.

• Actuation Readiness: Features a standardized mounting pad that seamlessly accepts manual gearboxes, pneumatic cylinders, or electric actuators for automated control systems.

Multi-functionality & Customization

Modern process control requires equipment that does more than just open and close. This DBB valve serves as a customizable hub for fluid management, allowing you to integrate diagnostic and chemical treatment tools directly into the isolation point. This level of customization empowers engineers to design smarter, more responsive fluid networks.

• Integrated Injection Quills: Seamlessly introduce chemical inhibitors, anti-freeze, or cleaning agents directly into the fluid stream at the exact point of isolation.

• Built-in Sample Probes: Safely extract real-time fluid samples for laboratory analysis without needing to install separate, costly sampling stations.

• Instrumentation Compatibility: Perfectly suited for mounting pressure transmitters and gauges, providing accurate, real-time readings of the isolated cavity.

• Tailored Flow Paths: Available in various port configurations to match specific flow dynamics and minimize pressure drops across the piping system.

Factory Direct & Cost-Effectiveness

Procurement efficiency is just as critical as mechanical efficiency. By sourcing directly from Lishui Gowin Valve, you bypass the inflated margins of third-party distributors and secure premium-grade equipment at the true manufacturer's price. This direct pipeline to the factory floor ensures not only significant capital savings but also a transparent, highly responsive support system.

• Aggressive Cost Optimization: Eliminating intermediary markups allows you to allocate your procurement budget more effectively across large-scale projects.

• Uncompromising Quality Control: Every unit is machined, assembled, and hydro-tested in-house, ensuring that the product arriving at your facility meets exact engineering specifications.

• Expedited Delivery Schedules: Direct communication with the manufacturing floor translates to faster production lead times and highly reliable shipping logistics.

• Expert Technical Support: Gain immediate access to the engineers who designed the valve, providing unparalleled guidance for installation, actuation sizing, and long-term maintenance.

Why Choose Us

Selecting the right manufacturing partner is a strategic decision that impacts the safety and profitability of your entire operation. We do not merely assemble metal components; we engineer certainty. Our production facilities are equipped with state-of-the-art CNC machinery and automated testing rigs, ensuring that every valve leaving our floor is a testament to industrial perfection. We understand the high stakes of your industry, and we deliver solutions that perform flawlessly under pressure.

• Decades of Forged Expertise: Deep-rooted experience in metallurgical science and fluid dynamics ensures our designs are both innovative and battle-tested in the field.

• Rigorous Global Certifications: Our manufacturing processes strictly adhere to international quality management systems, guaranteeing compliance with API, ASME, and ISO standards.

• End-to-End Traceability: From the raw steel billet to the final painted assembly, every component is fully traceable, providing you with comprehensive material test reports (MTRs).

• Dedicated After-Sales Engineering: Our relationship extends far beyond the point of delivery. We provide comprehensive operational training, troubleshooting, and rapid-response spare parts availability.

FAQ

What is the primary operational advantage of a Double Block and Bleed (DBB) valve over a traditional two-valve system?

The primary advantage lies in the consolidation of space and the elimination of redundant leak paths. A traditional setup requires two separate block valves and a central bleed valve, connected by heavy flanges and piping. A DBB valve integrates all three functions into a single, compact body. This not only drastically reduces the overall weight and footprint—which is critical for offshore and densely packed facilities—but also minimizes the number of mechanical joints where fugitive emissions or catastrophic leaks could occur.

How does the bleed function enhance maintenance safety?

The bleed valve is strategically positioned to vent the cavity between the two primary isolation points. When operators close both block valves, they open the bleed valve to depressurize the trapped fluid. If the bleed port stops venting, it provides undeniable visual and physical confirmation that both upstream and downstream seals are holding perfectly. This guarantees that the isolated section of the pipeline is completely de-energized and safe for technicians to perform maintenance without the risk of sudden fluid release.

Can this valve handle highly abrasive media or extreme temperatures?

Absolutely. While standard soft seats (like PTFE or Nylon) are excellent for clean fluids and gases, we offer specialized Metal-to-Metal seating configurations for severe service conditions. These hardened metal seats are precision-lapped to the spherical core, allowing the valve to shear through abrasive particulates like sand or catalyst fines without damaging the sealing surface. Additionally, metal seats are impervious to the extreme thermal degradation that would melt or deform standard polymer seals.

Are these valves compliant with NACE standards for sour gas applications?

Yes, we provide specialized material trims that fully comply with NACE MR-01-75 / ISO 15156 standards. For environments containing lethal and corrosive hydrogen sulfide (H2S), we utilize strictly controlled hardness levels in our carbon steel, stainless steel, or duplex alloys. This metallurgical precision prevents Sulfide Stress Cracking (SSC) and Hydrogen-Induced Cracking (HIC), ensuring the structural integrity of the valve remains intact over decades of sour service exposure.

What actuation options are compatible with this valve series?

Our DBB valves are engineered with standardized ISO 5211 top mounting pads, making them universally adaptable to a wide array of driving modes. For smaller sizes or infrequent operation, manual levers or gear operators provide smooth, high-torque control. For automated process loops or emergency shutdown (ESD) applications, the valves seamlessly integrate with heavy-duty pneumatic cylinders, hydraulic actuators, or electric motors. We can also calibrate the torque requirements directly with your chosen actuation hardware prior to shipment.
