As a premier manufacturer and dedicated supplier of advanced fluid control solutions, we engineer components designed for rigorous facility integration and large-scale procurement demands. Our directional flow valves are meticulously crafted to optimize pipeline architecture, ensuring that your operational infrastructure operates with maximum efficiency and minimal interruption. The flanged Y-port 3-way stainless steel ball valve is specifically developed to handle a vast array of media, providing precise control over air, conventional gases, volatile liquids, and highly corrosive chemical substances. By integrating this component, facilities can address complex fluid network challenges while maintaining absolute systemic reliability across diverse industrial sectors.
Engineered for seamless and precise flow diversion across complex industrial networks
Constructed from premium, corrosion-resistant metallurgy to withstand aggressive fluid media
Robust flanged connections for secure pipeline integration and absolute leak prevention
Direct-mount automation capability for modern facility upgrades and smart system control

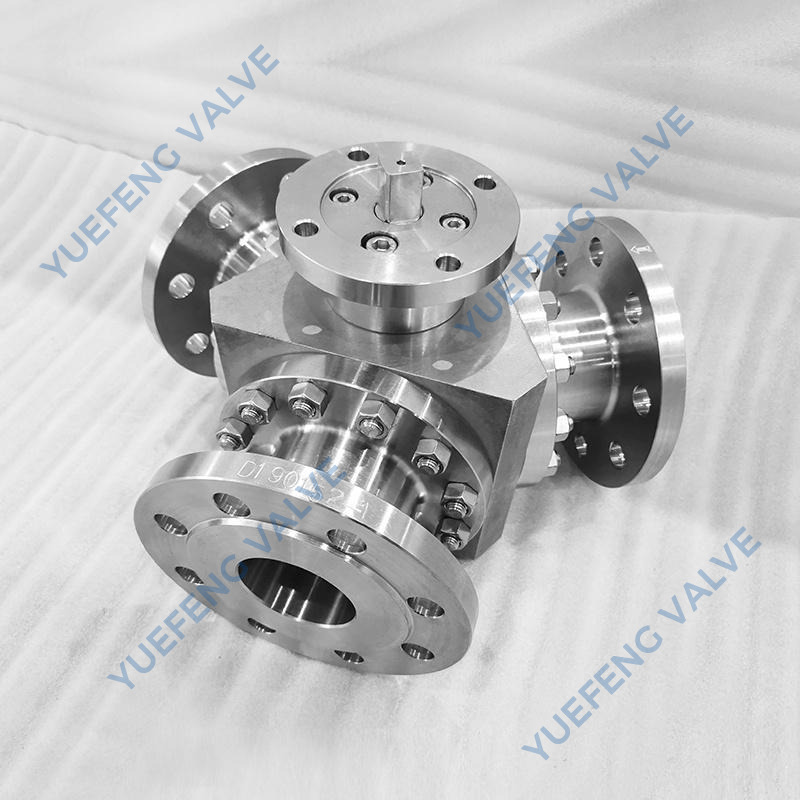

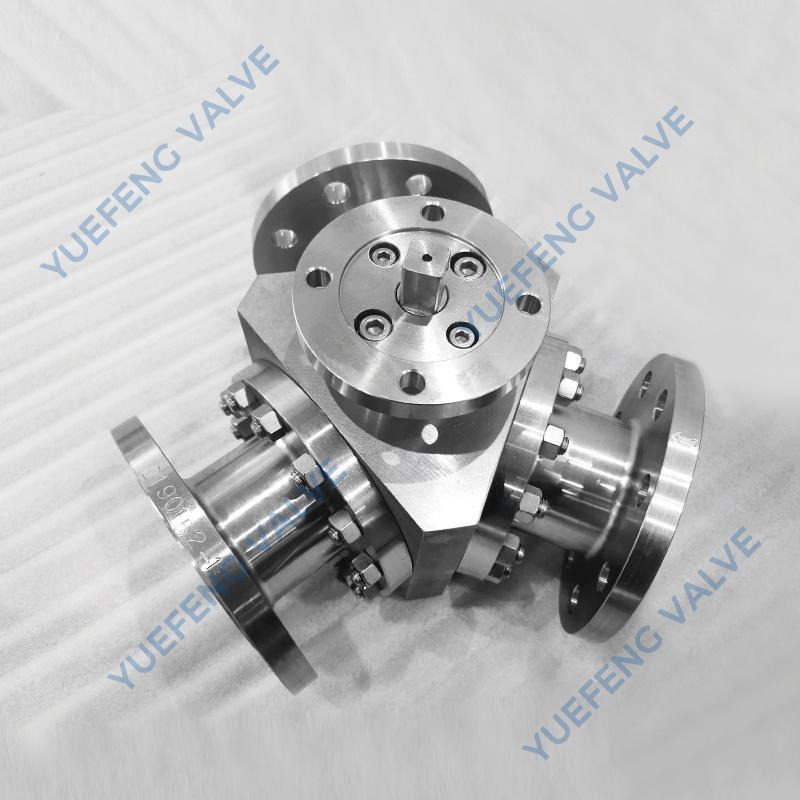

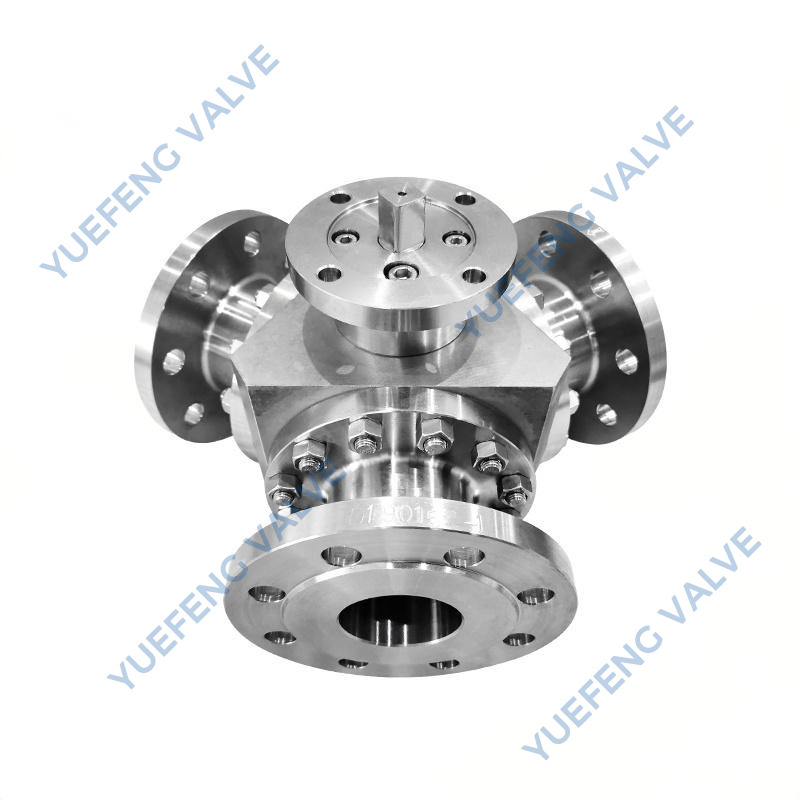

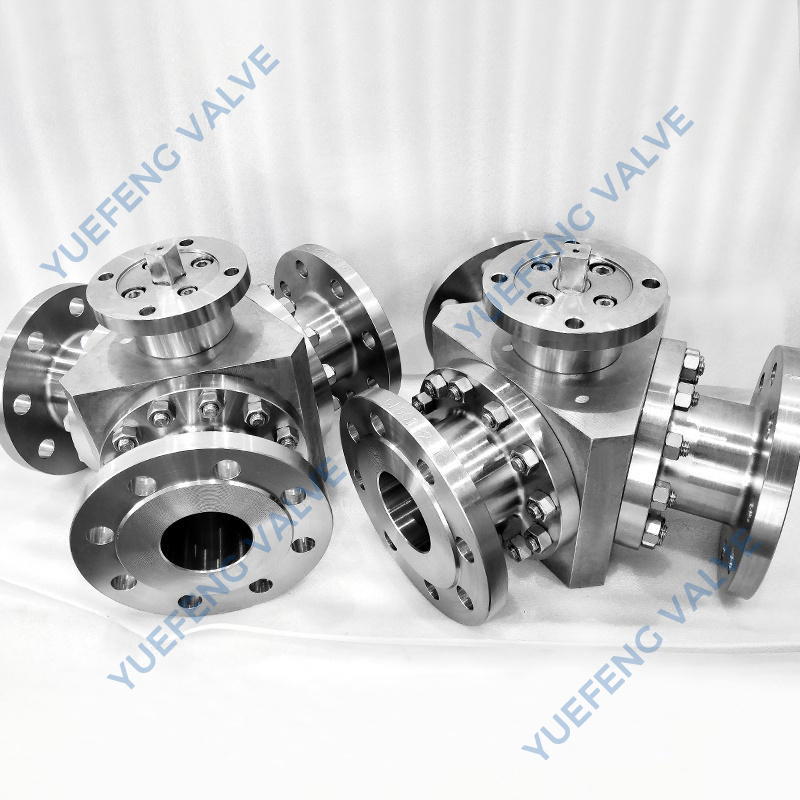

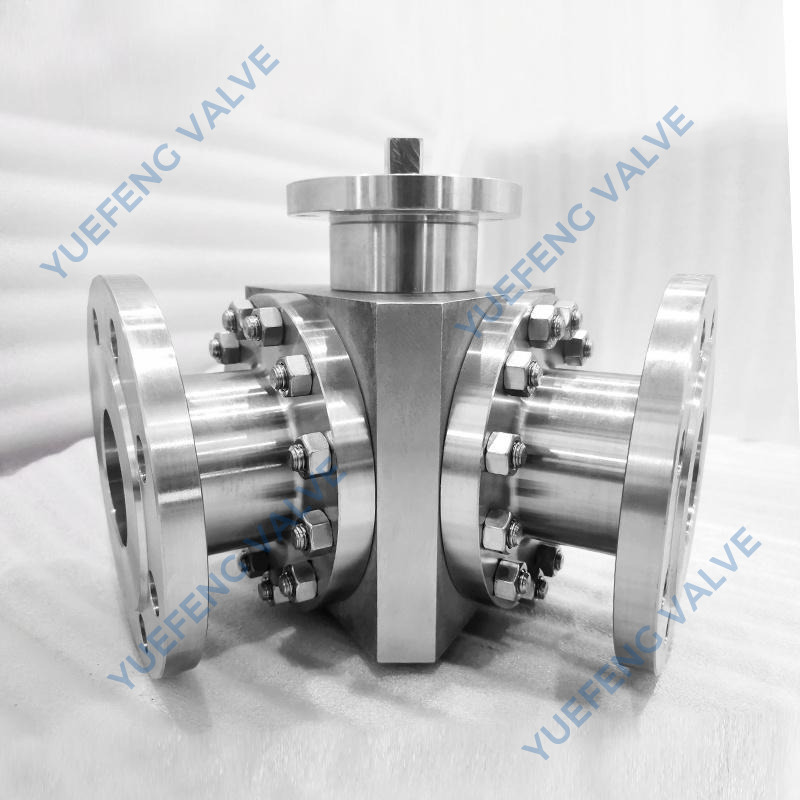

Introducing the Flanged Y-Port 3-Way Stainless Steel Ball Valve, a premium solution engineered for precise flow control within demanding industrial applications. Crafted with high-grade stainless steel, this valve ensures unparalleled durability and reliability in environments where standard components rapidly degrade. The innovative Y-Port design allows for seamless diversion of flow, offering exceptional versatility and efficiency in your daily operations. Trust in this specialized ball valve for exceptional performance and longevity, making it an essential structural component for your comprehensive fluid handling systems.
Beyond its fundamental capabilities, the physical presence of this directional control valve speaks volumes about its manufacturing pedigree. Running a hand along the heavy-duty cast body reveals a flawless, unyielding surface, meticulously machined to eliminate microscopic vulnerabilities where localized corrosion typically takes root. The tactile feedback of the operating lever is smooth yet deliberately firm, a direct result of precision-machined internal spheres and tightly toleranced seating mechanisms. When integrated into an active pipeline, it operates with a quiet confidence, actively dampening the acoustic vibrations and fluid turbulence that often plague lesser components. This is not merely a piece of hardware; it is a meticulously calibrated instrument designed to protect your process integrity, reduce ambient noise in the facility, and provide operators with a tangible sense of security during manual or automated actuations.
Precision engineering requires strict adherence to dimensional and material tolerances. The specifications outlined below represent the exact metallurgical and structural parameters that define this fluid control unit. Every component is subjected to rigorous quality assurance protocols to ensure it meets the exact criteria required for integration into complex, high-pressure industrial networks. These parameters guarantee that procurement managers and facility engineers are sourcing a component that aligns perfectly with stringent operational demands. To further assist site engineers, comprehensive sizing guidelines, precise weight data, and accurate flow capacity coefficients are strictly maintained, enabling accurate matching of the valve to specific pipeline capacity and pressure drop requirements.
Specification Category | Technical Details |
|---|---|
Product Name | Flanged Y-Port 3-Way Stainless Steel Ball Valve |
Body Material | Premium Stainless Steel (CF8M / 316 Stainless Steel) |
Port Configuration | Y-Port 3-Way |
Connection Type | Flanged (ANSI Class 150) |
Core Function | Seamless diversion of flow & precise flow control |
Seat Material | PTFE / RPTFE |
Stem Design | Blow-out-proof stem |
Mounting Standard | ISO 5211 Direct mounted pad |
Applications | Industrial applications, demanding environments |
Our engineering team has focused on delivering a product that directly addresses the pain points of modern fluid management. By prioritizing structural integrity and fluid dynamics, this unit offers tangible improvements to your daily operations, ensuring that your processes remain uninterrupted and highly efficient under varying operational loads.
Optimized Fluid Dynamics: The internal geometry is specifically cast to guide media smoothly, drastically reducing the shearing forces that cause premature wear on internal components and preserving the integrity of sensitive fluids.
Acoustic Dampening Construction: The heavy-wall stainless steel body naturally absorbs the kinetic noise of high-velocity fluids, contributing to a safer and quieter working environment for plant personnel while minimizing structural vibrations.
Environmental Resilience: The exterior finish is treated to repel harsh atmospheric corrosives, making it highly suitable for coastal facilities or chemical processing plants where ambient air degrades standard equipment rapidly.
Tactile Operational Confidence: Manual operation provides immediate, tactile confirmation of the valve's position, with a locking mechanism that snaps into place with an audible, reassuring click to prevent unintended actuation.
The foundation of any reliable pipeline component lies in its metallurgical composition. This unit is precision-cast from premium CF8M stainless steel, which is the cast equivalent of 316 stainless steel, a material universally recognized for its exceptional mechanical strength and profound resistance to localized corrosion. Unlike standard alloys that succumb to pitting and crevice corrosion in aggressive environments, this high-grade stainless steel maintains its structural integrity even when exposed to harsh chemicals, saline water, or volatile petrochemicals.
For facility operators, this translates directly into unparalleled durability across diverse application scopes. The robust material composition ensures that the valve can withstand extreme thermal cycling and mechanical stress without warping or degrading over time. By integrating this level of material excellence into your infrastructure, you effectively eliminate the frequent replacement cycles associated with inferior metals, guaranteeing long-term, reliable operation in the most demanding industrial environments where aggressive fluid media is constantly processed.
Traditional L-port or T-port configurations often force fluids through abrupt 90-degree turns, creating significant pressure drops and turbulent flow patterns that strain pumping equipment and increase energy consumption. This unit features an innovative Y-Port 3-Way configuration, specifically engineered to facilitate a much smoother, 120-degree directional transition. This specialized geometry allows for the seamless diversion of flow, drastically reducing fluid resistance and internal friction across the entire pipeline network.
The operational benefits of this design are substantial for large-scale fluid handling systems. By minimizing the pressure drop across the valve, the entire system requires less energy to maintain optimal flow rates, directly reducing the electrical load on your pumps and lowering operational costs. Furthermore, the streamlined flow path minimizes the accumulation of particulate matter within the valve body, ensuring consistent, precise flow control and elevating the overall efficiency of your fluid handling network. The carefully calculated flow coefficient ensures that engineers can accurately predict system performance under varying load conditions.
Seamless integration into existing infrastructure is a critical requirement for any facility upgrade or expansion project. To guarantee immediate compatibility and compliance, this directional valve is manufactured in strict accordance with globally recognized industrial standards. Featuring an ANSI Class 150 flanged connection, it aligns perfectly with standard pipe flanges, ensuring a secure, flush fit without the need for custom modifications, specialized adapters, or extensive on-site fabrication.
This strict adherence to rigorous structural and testing standards, including comprehensive ASME and ANSI protocols, means the unit serves as a true drop-in replacement for aging infrastructure. Procurement teams managing large-scale engineering projects or multinational sourcing can specify this component with absolute confidence, knowing it will interface flawlessly with existing pipework. This universal compatibility significantly accelerates installation timelines, allowing maintenance crews to complete changeouts swiftly and return the system to full operational capacity with minimal disruption to daily output.
In high-stakes industrial environments, the containment of hazardous or high-pressure media is non-negotiable. This directional flow valve is engineered with a multi-tiered approach to safety and sealing integrity, providing clear maximum working pressure limits and extreme temperature endurance ratings. At its core is a blow-out-proof stem design, a critical safety feature that physically prevents the stem from being ejected by sudden pressure spikes, thereby protecting personnel and preventing catastrophic systemic failures during unexpected operational surges.
Complementing the robust stem architecture are high-performance PTFE and RPTFE seats, which provide a tight, resilient seal against the polished stainless steel ball. This advanced material combination ensures zero-leakage performance even under fluctuating thermal and pressure conditions common in heavy industrial processing. Additionally, the inclusion of a locking handle mechanism prevents accidental actuation caused by ambient vibration or human error, providing plant managers with the absolute peace of mind that their critical processes remain safely contained and strictly controlled at all times.
As industrial facilities increasingly transition toward smart, automated control systems, component adaptability becomes paramount for future-proofing infrastructure. This specialized flow control valve is designed with the future in mind, featuring an integrated ISO 5211 direct mounted pad on its top works. This standardized platform allows for the immediate, secure attachment of pneumatic, electric, or hydraulic actuators without the cumbersome and costly addition of external mounting brackets or proprietary drive couplers.
This direct-mount capability is a significant advantage for system integrators and automation engineers. It completely eliminates the alignment issues and mechanical hysteresis often associated with bracket-mounted setups, ensuring highly responsive and exceptionally accurate automated flow control. By streamlining the automation process, this structural design drastically reduces installation labor and integration costs, allowing your facility to upgrade to sophisticated automated processes swiftly, economically, and with minimal engineering overhead.
Evaluating a component's true value requires looking beyond the initial acquisition and analyzing its performance over its entire lifecycle. The robust architecture of this flanged Y-port valve is specifically intended to minimize ongoing maintenance requirements and reduce operational downtime. The high-grade materials and self-lubricating PTFE seats reduce internal wear, meaning the valve requires significantly less frequent servicing compared to standard market alternatives.
When routine inspections or maintenance are eventually required, the flanged design allows for straightforward removal from the pipeline, while the intuitive internal assembly permits quick replacement of internal components. To further support facility teams, comprehensive installation, operation, and maintenance manuals are provided alongside standardized repair kits. By drastically reducing both the frequency and duration of maintenance-related downtime, this valve ensures your processes remain highly productive. Ultimately, this reliability and ease of service culminate in a remarkably low Total Cost of Ownership, delivering sustained value to your operational budget.
Selecting the right manufacturing partner is just as critical as selecting the right fluid control component. We pride ourselves on delivering not just hardware, but comprehensive reliability for your large-scale operational needs. Our production facilities operate under the strictest quality control protocols, ensuring that every single unit performs flawlessly right out of the crate and meets exact engineering specifications.
Uncompromising Quality Assurance: Every single valve undergoes rigorous industrial-grade pressure and leak testing before it leaves our facility, guaranteeing zero-defect, field-ready performance upon arrival.
Scalable Production Capacity: We possess the advanced infrastructure and supply chain resilience to fulfill high-volume project requirements rapidly, ensuring your facility construction or pipeline upgrade stays strictly on schedule.
Deep Engineering Expertise: Our technical teams possess decades of specialized experience in fluid dynamics and metallurgy, ensuring our product designs are grounded in real-world industrial realities and complex application demands.
Reliable Global Fulfillment: We understand the critical nature of supply chain stability for major engineering projects, providing consistent, on-time delivery and comprehensive documentation for your most vital operational components.
A Y-Port configuration features a 120-degree angle between ports, which provides a significantly straighter flow path compared to the sharp 90-degree turns found in a traditional T-Port valve. This specialized design minimizes fluid turbulence, drastically reduces the pressure drop across the valve body, and lowers the overall energy required by system pumps to move the media. Consequently, it is highly efficient for directional flow splitting or blending applications, particularly in systems where maintaining fluid velocity and reducing internal friction are critical to operational success.
Yes, Reinforced Polytetrafluoroethylene (RPTFE) seats are specifically engineered to withstand significantly higher temperatures and mechanical pressures than standard virgin PTFE. While the exact operational limits depend on the specific working pressure and media type, RPTFE generally performs exceptionally well in demanding thermal environments. The reinforcement materials prevent the seats from cold flowing or deforming under stress, ensuring that the valve maintains a reliable, bubble-tight seal even when subjected to the extreme thermal cycling common in chemical processing and heavy industrial applications.
The blow-out-proof stem is meticulously machined with an integral collar at its base and is inserted from the inside of the valve body during assembly. In the event of a severe, unexpected pressure surge or system hammer within the pipeline, the internal pressure actively pushes the stem's collar upward against the interior of the valve body. This mechanical design physically prevents the stem from being ejected outward, thereby protecting nearby operators from hazardous blowouts and ensuring the structural integrity of the fluid containment system remains uncompromised.
No, the ISO 5211 standard is a globally recognized and standardized interface specifically developed for valve automation. The direct mount pad on this directional valve allows facility engineers to bolt standard ISO 5211 compliant pneumatic, electric, or hydraulic actuators directly to the top works of the valve body. This intelligent design completely eliminates the need for custom-fabricated mounting brackets or proprietary drive adapters, ensuring a rigid, zero-play connection that translates to highly accurate and responsive automated flow control.
Absolutely. CF8M is the cast equivalent of 316 stainless steel, which contains a specific addition of molybdenum. This crucial metallurgical addition significantly enhances the alloy's natural resistance to pitting and crevice corrosion, particularly when deployed in environments containing chlorides, aggressive industrial solvents, and various volatile chemicals. This superior environmental resilience makes the CF8M stainless steel construction an ideal and highly durable choice for harsh chemical processing environments, offshore platforms, and coastal industrial facilities where standard materials would rapidly deteriorate.
