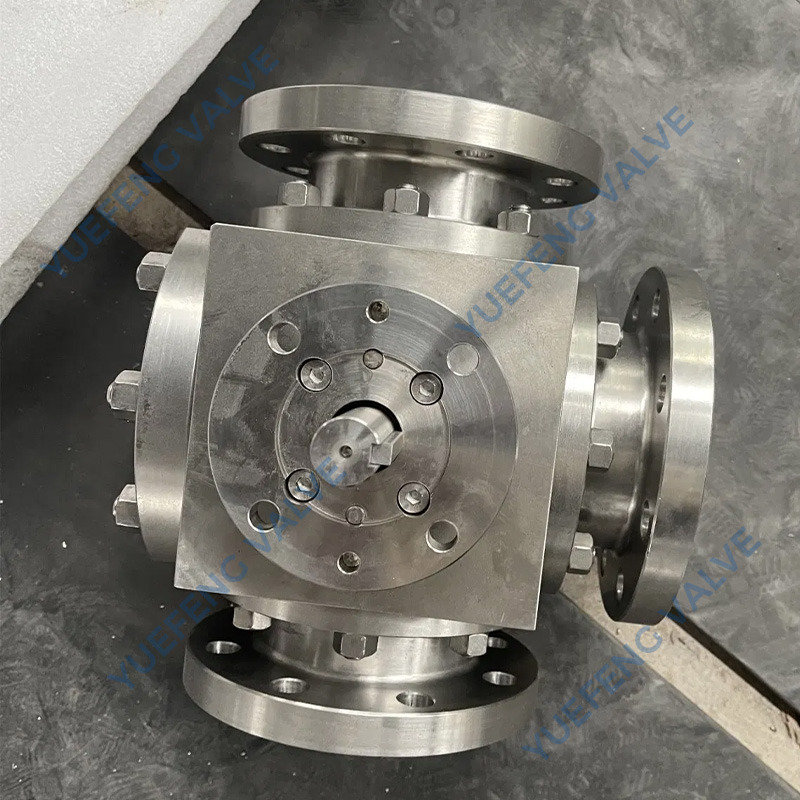

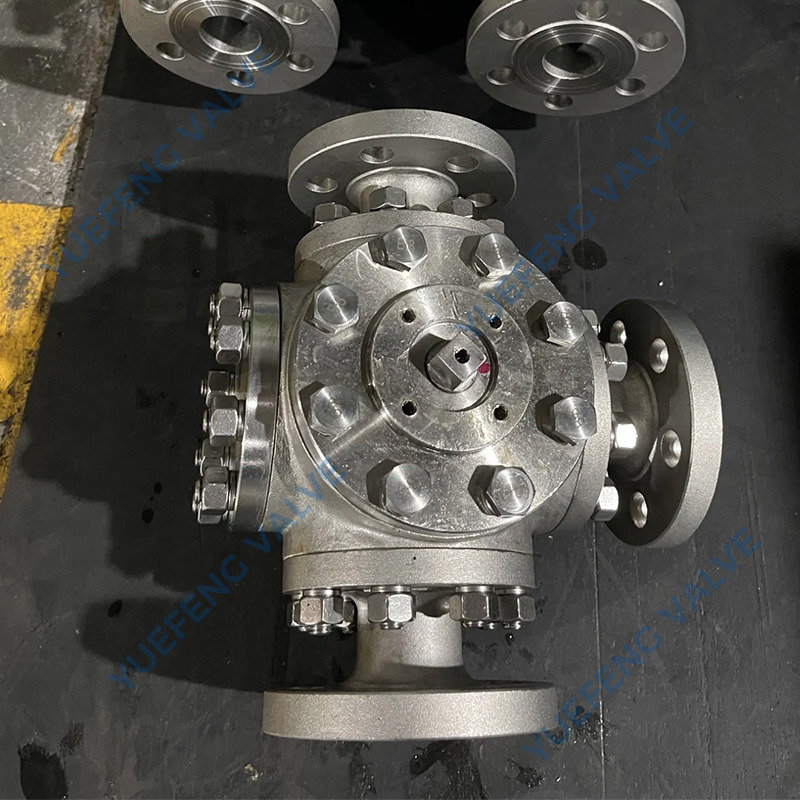

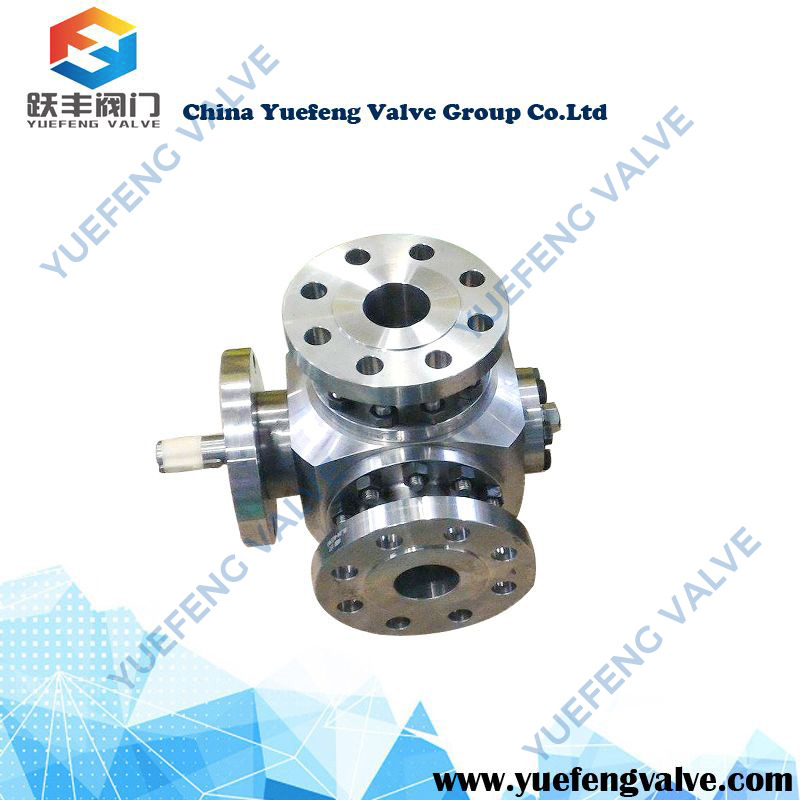

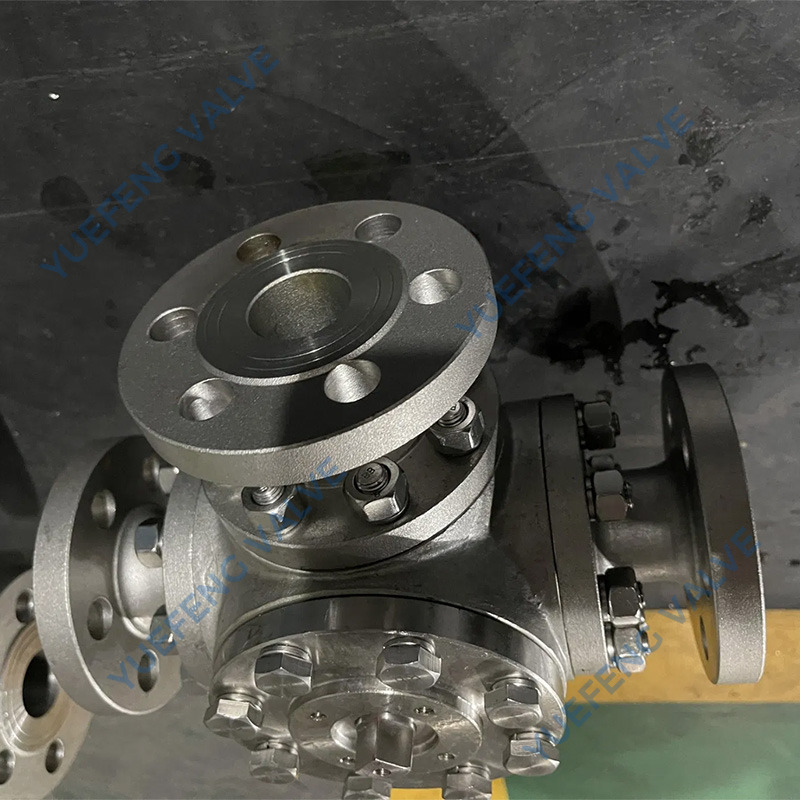

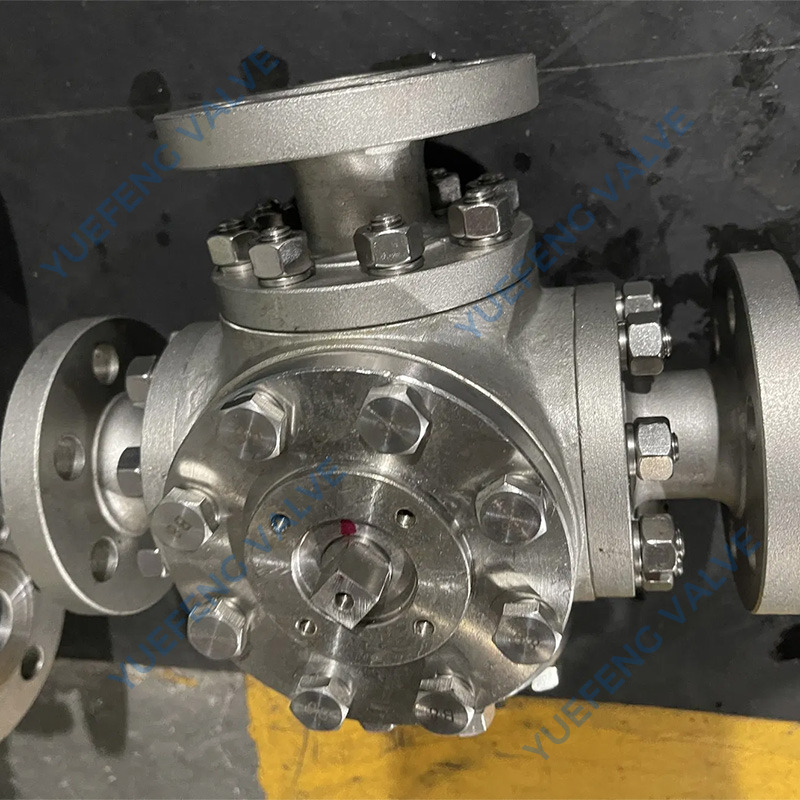

The L - type is commonly used as a diverter valve, allowing fluid to be redirected from one port to another by rotating the handle 90 degrees. The T - type, on the other hand, is often used as a mixer valve, enabling the mixing of two inlet flows into one common outlet port. It can be of floating or trunnion design, with different valve end connections such as flanged, socket, or threaded, and is made of various materials including plastics, metals, alloys, and stainless steel.
This valve is widely used in industrial processes where there is a need to control the flow of fluids. It can be used to mix different fluids, divert flow from one destination to another, or block one outlet while allowing flow in another direction. It is commonly found in the chemical, food and beverage, and water treatment industries. In the chemical industry, it is used for process control and fluid mixing. In the food and beverage industry, it is used for product transfer and blending. In the water treatment industry, it is used for flow control and distribution.
Q: How does the L - type 3 - Way Ball Valve work?
A: In the L - type valve, when the handle is rotated 90 degrees counter - clockwise, the flow is diverted from the bottom port and left port to the right outlet. A complete 360 - turn returns the valve to its original position, and there are two shut - off positions and three flow choices.
Q: Can the T - type valve be used for precise flow control?
A: While the T - type valve is not designed for extremely precise flow control like some specialized control valves, it can restrict the flow to two ports or facilitate the passage to all three ports, providing a certain degree of flow control flexibility.
Q: What are the advantages of the floating design?
A: The floating design allows the ball to float slightly in the valve body, which helps to achieve better sealing performance and reduces the operating torque required to turn the ball.

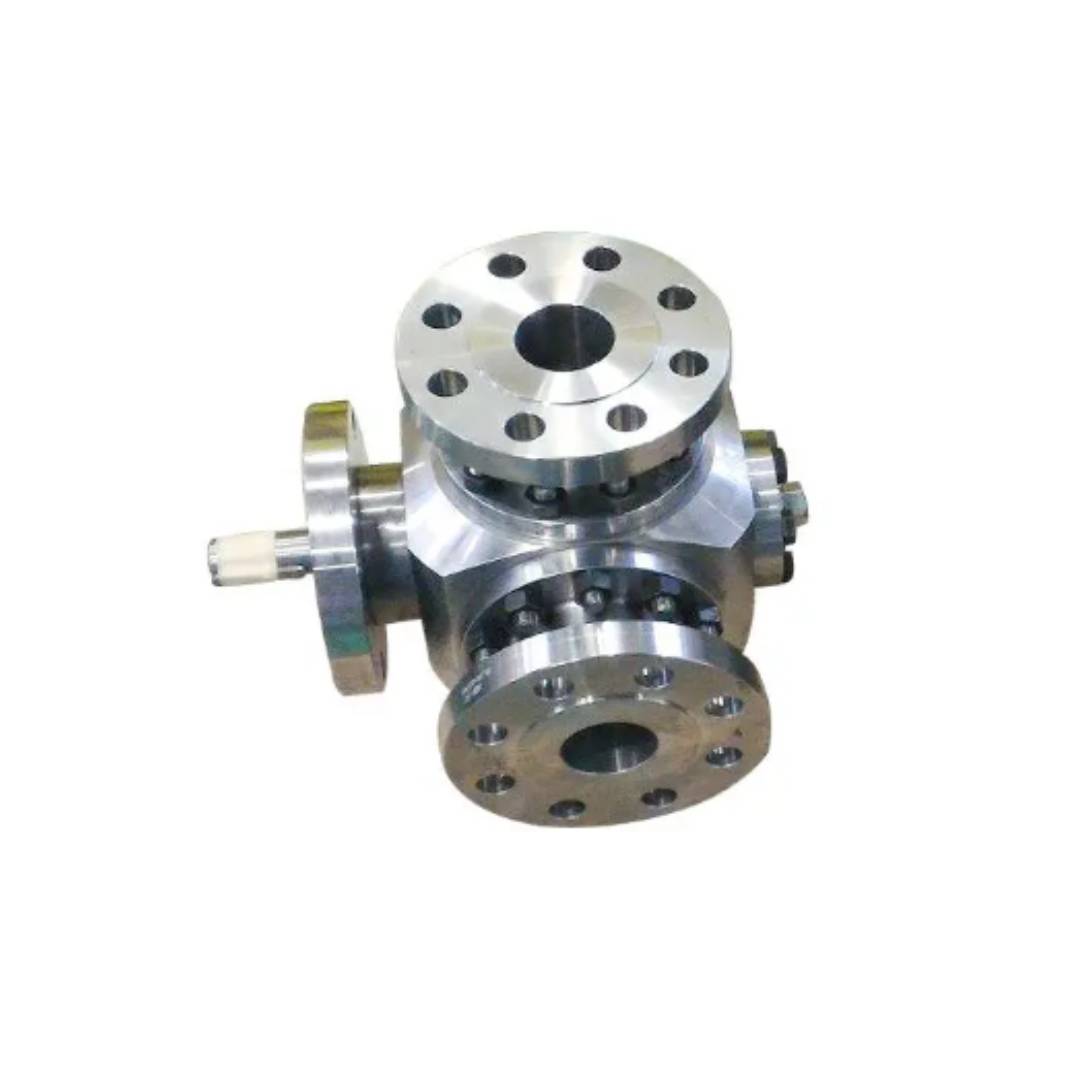

MAIN FEATURES
The three-way/four-way ball valve is used for switching, converging and diverging pipeline medium flow direction. It is widely applied in metallurgy, mine, petroleum, chemical industry, electric power, light industry, shipping industry and automation control systems, suitable for service conditions such as switching, mixing and diverging of fluid, gas and power.
STRUCTURAL CHARACTERISTICS
The three-way/four-way ball valve is provided with reliable sealing and smooth flow channel so as to ensure accuracy of opening and closing through small fluid pressure loss and stable flow channel. According to the forms of flow channel, the valve can be classified into "Y" pattern three-way ball valve, "L" pattern three-way ball valve, "T" pattern three-way ball valve and "LL" pattern four-way ball valve.
"Y" pattern Three-way Ball Valve(q42 Type)
The form of flow channel is "Y" pattern, which can effectively realize switching from service condition 1 to service condition 2. It is mainly used for switching "Y" pattern pipeline flow direction.
"L" Pattern Three-way Ball Valve(q44 Floating Type,Q49 Trunnion Type)
The "L" pattern therr-way ball valve is used for switching pipeline medium flow direction. It can connect two flow channels that are vertical with each other. The ordinary "L" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
STRUCTURAL FEATURES
"T" Pattern Three-way Ball Valve(q45 Floating Type,Q48 Trunnion Type)
The "T" pattern three-way ball valve is used for switching, converging and diverging medium flow direction. The "T" pattern ball channel can make three channels connect with each other or two of them connect with each other to realize two, three of found kinds of functions. Different valve designs are adopted to realize different functions. Therefore, users shall make detailed descriptions to the service requirements when selecting and ordering the "T" pattern three-way ball valve, so that our company can make designs and configurations correctly. The ordinary "T" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
"LL" Pattern Foru-way Ball Valve
The "LL" pattern four-way ball valve is provided with four seats to realize switching from service condition 1 to service condition 2. It can simultaneously switch the flow direction of two media, which realizes the effect of multiple functions in one valve with convenience and swiftness.
The work form is shown as follows:
1. When A(C) is the inlet, the two connections of A →B(C→D) or A→C(C→A) can be realized.
2. A cannot be realized.
3. A→D(C→B) or D→A(B→C) is impossible.

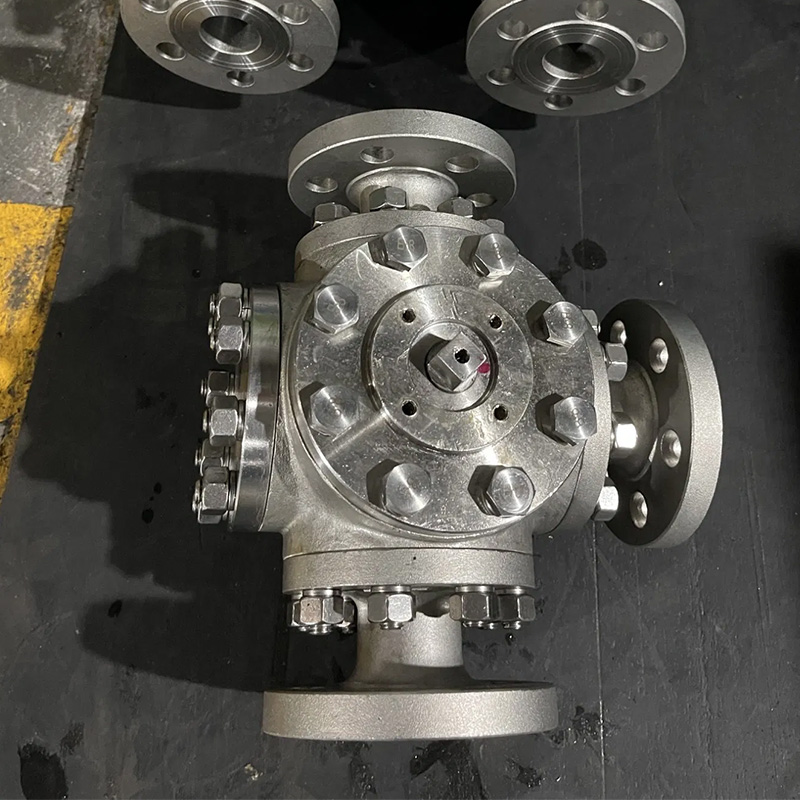

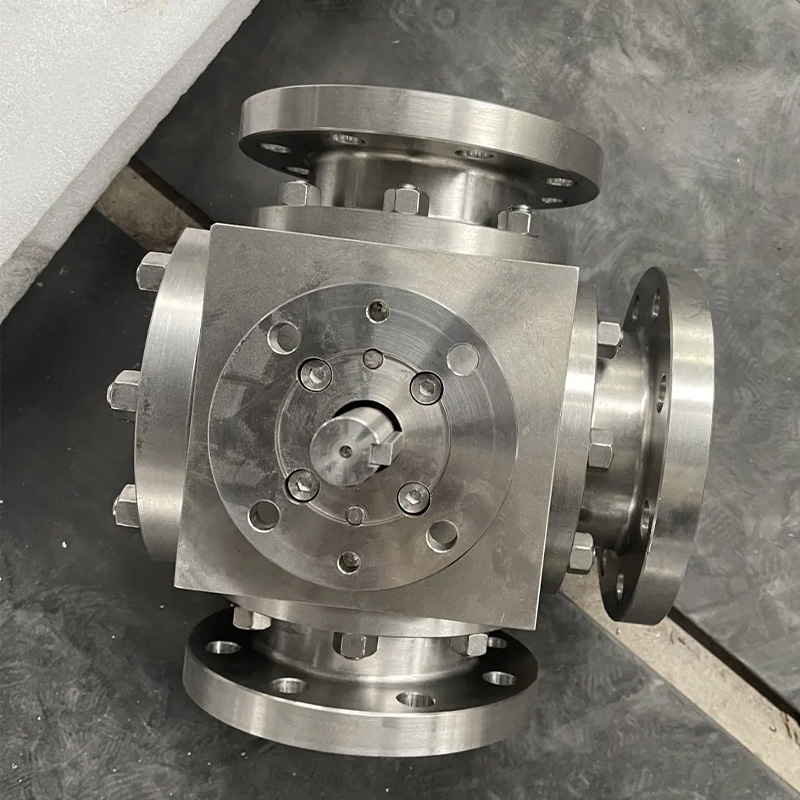

| Name | T Type Hydraulic Three Way Ball Valve |
| 1.Size | 1/2"-16" |
| 2.Pressure | 150LB-900LB, 1.6MPa-10MPa |
| 3.Material | WCB, LCB, 304/CF8, 316/CF8M, 316L/CF3M, A105, etc |
| 4.Temperature | -20-350 |
| 5.Design Standard | API, JIS, DIN or manufacturing according to your requirements |
| 6.Operation | Pneumatic |
Production process
Certificates & Test reports
Packing&Shipping
