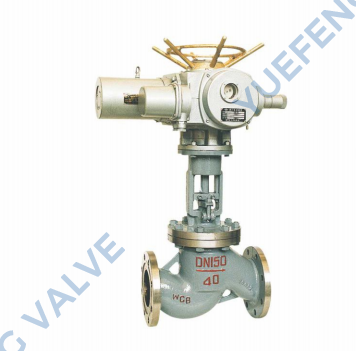

Heavy-Duty Electric Globe Valve

Electric globe valve is suitable for petroleum, chemical industry, pharmaceutical, chemical fertilizer, power industry and other working conditions of nominal pressure PN1.6 ~ 16MPa, working temperature -29 ~ 550℃ pipeline. Cut off or connect the pipeline medium. Applicable medium: water, oil, steam, and acid, alkali, ammonia, urea, sulfur-containing natural gas, etc.

Availability:
Quantity:

Overview of Heavy-Duty Electric Globe Valve

The heavy-duty electric globe valve represents a pinnacle of fluid control technology, engineered to meet the most demanding industrial requirements. Designed for precise shut-off and seamless connection of pipeline media, this automated valve excels in nominal pressure ranges from PN1.6 to 16MPa and operating temperatures spanning extreme cold to intense heat. Manufactured in strict compliance with international frameworks including ANSI, DIN, and API standards, the equipment ensures flawless integration and regulatory compliance for multinational procurement projects. By integrating advanced electric actuation mechanisms with a highly robust structural design, it serves as an indispensable asset for critical infrastructure in the petroleum, chemical processing, pharmaceutical, fertilizer production, and power generation sectors. Every unit undergoes rigorous quality control protocols, including comprehensive shell hydrostatic testing and precision pneumatic seat sealing assessments prior to deployment. Accompanied by complete Material Test Certificates and performance validation reports, this valve guarantees absolute safety and reliability in high-pressure environments. Whether managing standard fluids like water and steam or highly corrosive substances such as mixed acids, ammonia, urea, or sulfur-containing natural gas, the system delivers consistent operational excellence, minimized downtime, and an exceptionally long service life.

Heavy-Duty Electric Globe Valve for Industrial Fluid Control

Technical Specifications of Electric Globe Valve

Material Configurations & Temperature Adaptability

Selecting the correct material configuration is vital for maintaining pipeline integrity and achieving optimal flow control. The following specifications outline the diverse metallurgical options available for the valve body, bonnet, disc, and seat, ensuring compatibility with varying operational severities. By offering an extensive range of materials, operators can effectively manage highly corrosive media and extreme thermal conditions without compromising structural stability. The optimized valve body flow path design, combined with precise flow coefficient calculations, significantly reduces system pressure drop. This meticulous engineering satisfies the most stringent fluid regulation demands, allowing facilities to maintain high throughput efficiency while minimizing energy consumption across complex piping networks.

Body

Bonnet

Disc

Seat

Stem

Packing

Applicable Medium

Applicable Temperature (≤°C)

WCB

-

WCB+D507Mo

D577

2Cr13

Flexible Graphite

Water, Oil, Steam

425

ZG1Cr18Ni9Ti

-

0Cr18Ni9Ti+Stellite12

Stellite 6

1Cr18Ni9Ti

PTFE

Nitric Acid Series

200

ZG1Cr18Ni2Mo2Ti

-

CF8M+Stellite12

1Cr18Ni2Mo2Ti

1Cr18Ni2Mo2Ti

PTFE

Nitric Acid, Alkalis, Mixed Acids

200

ZG00Cr17Ni14Mo2

-

CF3M+Stellite12

Stellite 6

316L

PTFE

Phosphoric Acid, Urea, Methylamine Solution

200

ZG1Cr5Mo

-

ZG1Cr5Mo+Stellite12

Stellite 6

25Cr2Mo1VA

Flexible Graphite

Water, Oil, Steam

550

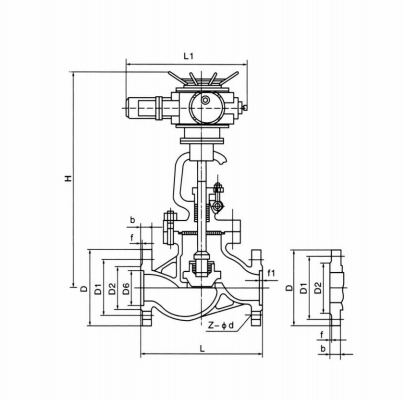

Standard Pipeline Connection Dimensions

To facilitate straightforward integration into both newly constructed facilities and existing infrastructure upgrades, the automated globe valve offers exceptional installation adaptability. The dimensional parameters detailed below provide comprehensive guidance for flange connections, actuator compatibility, and overall spatial requirements. Depending on specific project mandates, the equipment can be supplied with various standard connection end faces, including flanged, threaded, butt weld, and socket weld configurations. This flexibility ensures that engineering teams can seamlessly match the valve to their precise piping architecture, reducing installation time and mitigating the risk of structural misalignment during heavy-duty operations. Furthermore, the standardized dimensions align perfectly with global industrial practices, allowing maintenance crews to perform routine inspections or replacements with minimal disruption to ongoing processing activities.

PN(MPa)

DN(mm)

Standard Dimensions (L×D×D1×D2)

Flange Parameters (b×f1×Z-d)

Reference Dimensions (L1×H)

Denso Model Number

1.6

50

230×160×125×100

16×3×4-18

590×645

48

1.6

100

350×215×180×155

20×3×8-18

590×770

71

4.0

150

480×300×250×218

30×3×8-25

810×875

226

10.0

200

650×430×360×312

54×3×12-41

830×1425

850

Core Advantages of Automated Electric Globe Valves

Precise Flow Regulation & Zero Leakage Sealing

Equipped with a highly responsive electric actuator, the valve enables accurate flow control and rapid shut-off capabilities, ensuring maximum operational efficiency across complex piping networks. To address the challenges of varying fluid dynamics, the internal trim can be deeply customized. By selecting specific combinations of wear-resistant discs and corrosion-resistant seats, facilities can achieve long-lasting, zero-leakage performance even under extreme working conditions. This precise sealing mechanism minimizes medium loss, prevents environmental contamination, and drastically reduces ongoing maintenance expenditures, providing a highly reliable solution for critical fluid management. The advanced sealing architecture also compensates for thermal expansion and contraction, maintaining a tight barrier against fugitive emissions. This level of precision is essential for facilities handling hazardous or high-value materials, where even minor leaks can result in significant operational setbacks.

Broad Medium Compatibility & Thermal Resilience

With multiple advanced material configurations and compatible premium packings, the automated globe valve effortlessly handles both neutral fluids and highly aggressive corrosive media. It is engineered to withstand extreme temperature fluctuations, adapting seamlessly to diverse industrial working environments. Whether deployed in cryogenic applications or high-heat processing lines, the carefully selected metallurgical components prevent degradation and maintain mechanical strength. This exceptional thermal resilience ensures that the flow control system remains fully operational during unexpected temperature spikes, safeguarding downstream equipment and preserving the integrity of the entire production process. By accommodating such a wide spectrum of chemical compositions and thermal ranges, plant operators can standardize their equipment inventory, utilizing a single, highly adaptable valve design across multiple distinct processing units.

Robust Structural Integrity for High-Pressure Environments

The one-piece valve body and cover are meticulously forged from premium alloy materials, ensuring unparalleled structural integrity when subjected to intense internal pressures. The heat-treated stem effectively resists mechanical deformation and frictional wear, while the flexible packing matrix prevents external leakage, substantially extending the operational lifespan of the equipment. Furthermore, the optimized internal flow path is specifically designed to minimize turbulence and fluid resistance, which directly contributes to a lower overall system pressure drop. This thoughtful engineering approach reduces the mechanical stress placed on the piping infrastructure, thereby enhancing the safety and longevity of the entire fluid transportation network. Operators benefit from a durable, low-maintenance solution that requires fewer interventions, allowing for continuous, uninterrupted processing in the most demanding heavy industry sectors.

Seamless Pipeline Integration & Smart Automation

Compliant with strict international connection dimensions, the equipment facilitates effortless integration into existing pipelines. The modular electric actuation design allows for quick disassembly and straightforward maintenance, reducing facility downtime and mitigating operational disruptions. Deeply compatible with a variety of intelligent electric actuators, the system supports mainstream industrial communication protocols for comprehensive digital oversight. Featuring high protection and explosion-proof ratings, such as IP67 and IP68, the automated control unit ensures safe and reliable remote monitoring in hazardous zones. This smart automation capability empowers facility managers to optimize flow rates in real-time, gather predictive maintenance data, and enhance overall plant efficiency without requiring manual on-site adjustments.

Industrial Applications for Heavy-Duty Globe Valves

Critical Pipeline Scenarios

The exceptional durability and precise regulation capabilities of this flow control equipment make it an ideal choice for a multitude of heavy industries. In the petroleum sector, it is heavily utilized within pipeline systems for crude oil transportation, complex refining processes, and large-scale storage facilities, where preventing leaks is paramount. The chemical and pharmaceutical industries rely on its robust construction for safely handling highly corrosive media, including concentrated acids and alkalis, as well as maintaining the purity of materials during sensitive drug synthesis. Within the power generation industry, it serves as a critical component in steam and water circulation pipelines for thermal power plants and auxiliary systems in nuclear facilities. Additionally, the fertilizer industry depends on its resilience for processing lines that manage urea, ammonia, and methylamine solutions, ensuring continuous production without chemical degradation.

Compatible Fluid Media

The versatile design accommodates an expansive array of fluids and gases, ensuring reliable performance regardless of the chemical composition. It effectively regulates standard utilities such as purified water, industrial lubricants, and superheated steam. For more aggressive applications, it provides secure containment and flow management for nitric acid, concentrated alkalis, complex mixed acids, and phosphoric acid. Furthermore, the specialized sealing mechanisms are highly effective when processing urea, methylamine solutions, and hazardous sulfur-containing natural gas. This broad compatibility allows engineering teams to deploy the equipment across various plant sectors, simplifying procurement and standardizing maintenance protocols. By utilizing customized internal trims tailored to the specific physical phase and corrosiveness of the medium, the system guarantees long-term stability and prevents premature wear of critical internal components.

Frequently Asked Questions About Electric Globe Valves

What is the nominal pressure range of this electric globe valve?

The equipment supports a comprehensive nominal pressure range from PN1.6MPa up to 16MPa. This broad spectrum covers the vast majority of industrial high-pressure pipeline requirements, from standard water distribution networks to intensive chemical processing facilities. Each unit undergoes rigorous shell hydrostatic testing prior to dispatch to certify its pressure-retaining capabilities, ensuring absolute safety and compliance with international manufacturing standards.

Can this heavy-duty valve handle high-temperature steam?

Absolutely. When specifically configured with a specialized alloy body and flexible graphite packing, the equipment is engineered to withstand extreme thermal environments up to 550 degrees Celsius. This makes it an exceptionally reliable choice for high-temperature steam applications found in thermal power plants and industrial boiler systems, where maintaining structural integrity under intense heat is critical for operational safety.

How do I select the right valve trim for corrosive media?

Selecting the appropriate internal components depends entirely on the specific corrosiveness and physical state of the medium. For highly aggressive substances like nitric acid or strong alkalis, we recommend a stainless steel body paired with PTFE packing. For challenging applications involving phosphoric acid or urea, upgrading to specialized molybdenum-bearing alloys ensures superior corrosion resistance. We offer deep customization of the core, seat, and packing combinations to achieve a zero-leakage seal tailored to your exact operational parameters.

What are the automation capabilities of the electric actuator?

The integrated electric actuator transforms the equipment into a highly intelligent control node within your pipeline network. It enables automatic, remote operation, significantly improving facility efficiency and eliminating the need for manual intervention in hazardous areas. The actuator supports mainstream industrial communication protocols and features high ingress protection ratings, ensuring reliable performance even in harsh, explosive environments. By matching the actuator model to the specific diameter and pressure requirements, operators achieve precise flow regulation and seamless integration into central control systems.

Main Parts and Material Uses of Electric Globe Valve

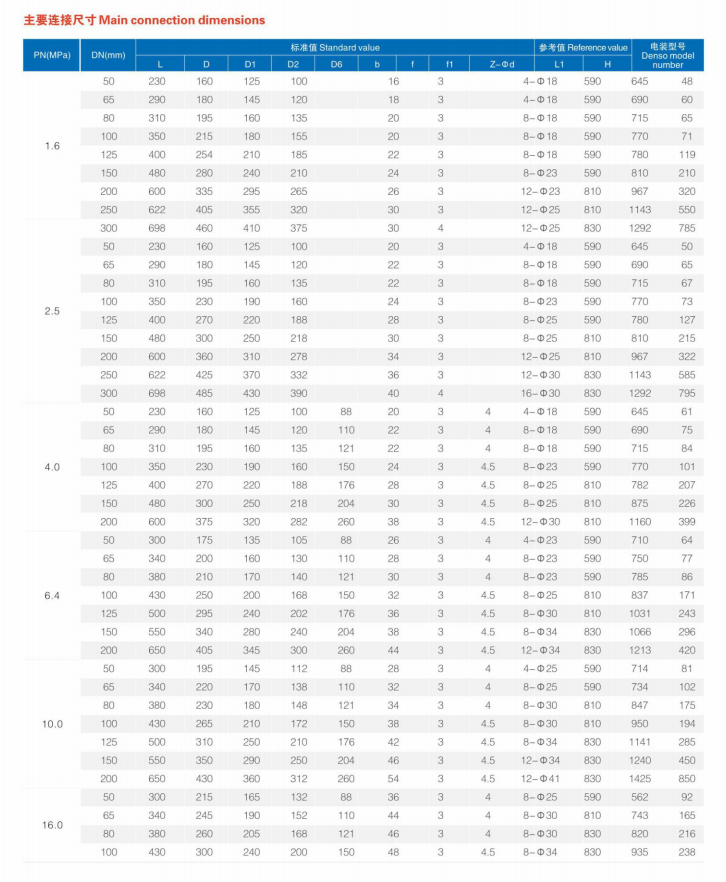

Main Connection Dimensions for Industrial Globe Valves
