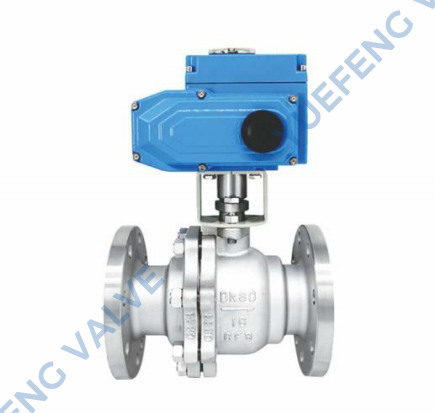

An electric ball valve is a kind of rotating type ball valve with rotary angle of 90° and features good sealing performance, large flow capacity, small flow resistance coefficient, simple structure, convenient maintenance and long service life. Valve body passage is equal to connecting pipe diameter in size and medium can almost flow through it with no loss. It is used together with a GMT/GMTQT high performance actuator. Such products are usually used on applications with strict sealing requirements.
| Quantity: | |
|---|---|
The Pneumatic Globe Valve Series from China’s trusted manufacturer Yuefeng Valve is engineered for precise flow regulation and shut-off in industrial systems. Designed in strict compliance with GB standards, this valve series integrates advanced structural design with high-quality materials to deliver reliable performance in diverse operating conditions. Whether handling general fluids, corrosive media, or high-temperature applications, the valve ensures tight sealing, smooth operation, and long service life. With customizable structural lengths, connecting flange sizes, and main spare parts materials, it meets the unique requirements of various industrial projects. Note: This series supports tailored manufacturing based on user-specific demands for enhanced versatility.

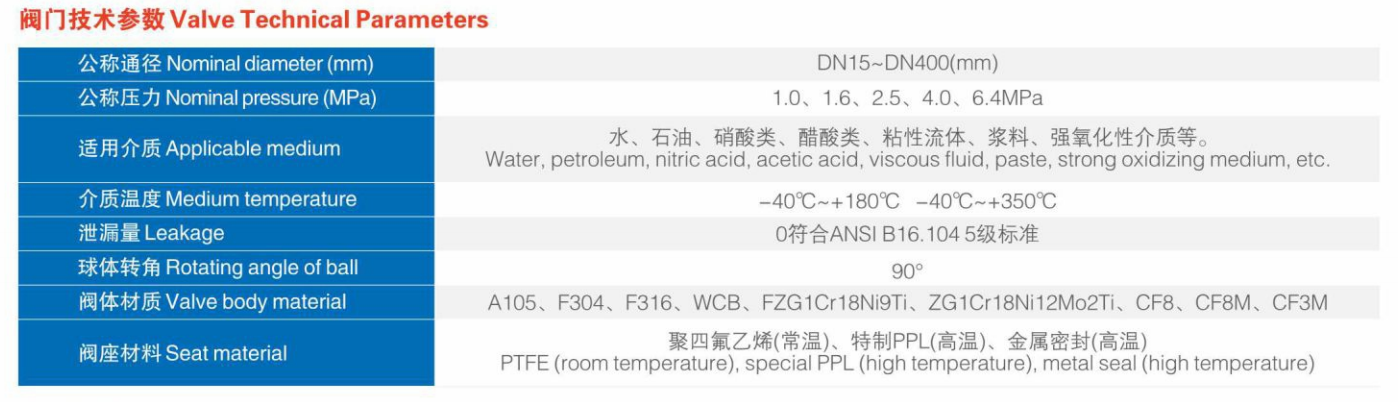

| Parameter | Specification |
| Nominal diameter (mm) | DN15~DN400(mm) |
| Nominal pressure (MPa) | 1.0, 1.6, 2.5, 4.0, 6.4MPa |
| Applicable medium | Water, petroleum, nitric acid, acetic acid, viscous fluid, paste, strong oxidizing medium, etc. |
| Medium temperature | -40℃+180℃ -40℃+350℃ |
| Leakage | 0 meets ANSI B16.104 Class 5 standard |
| Rotating angle of ball | 90° |
| Valve body material | A105, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3M |
| Seat material | PTFE (room temperature), special PPL (high temperature), metal seal (high temperature) |
Equipped with a well-designed valve disc and valve stem, the valve enables accurate adjustment of fluid flow rates, making it ideal for processes requiring strict flow control.
Premium materials such as 304 stainless steel, 1Cr18Ni12Mo2Ti, and PTFE ensure excellent resistance to corrosive media, extending the valve’s service life in harsh environments.
The combination of flexible graphite gaskets and PTFE packing provides tight sealing, preventing leakage and ensuring system efficiency and safety.
Supports personalized manufacturing of structural length, flange size, and spare parts materials, adapting to unique project requirements.
Compliant with GB standard dimensions, the valve ensures seamless integration with existing systems. Removable components and clear structural design simplify maintenance and part replacement.
Available in pressure ratings up to 40C/P/R, the valve handles high-pressure applications in industrial pipelines with stability.
Ideal for regulating and shutting off corrosive chemicals, petroleum products, and gas streams in refineries and chemical plants.
Suitable for boiler feedwater systems, steam pipelines, and cooling water circuits in thermal and nuclear power plants.
Used in municipal water supply, wastewater treatment, and desalination plants for fluid flow control.
Meets hygiene requirements with food-grade materials, suitable for processing pipelines handling pharmaceuticals, beverages, and food products.
Regulates hot and cold water flow in heating, ventilation, and air conditioning systems for commercial and industrial buildings.
Yes. The main spare parts and sealed seat materials can be selected or designed according to your special requirements, such as corrosion-resistant or high-temperature-resistant materials.
The valve is designed and manufactured in accordance with GB standards (GB/12233, GB/12221, etc.), and can be adapted to international standards upon request.
The nominal diameter (DN) ranges from 15 to 300, covering most industrial pipeline requirements.
Choose based on your system’s operating pressure. The series offers 16C/P/R, 25C/P/R, and 40C/P/R ratings; consult our team for personalized recommendations.
Typically 6 - 12 months, depending on operating conditions. Regular inspection of gaskets and packing ensures optimal performance.
