Yuefeng’s cage sleeve control valve features double-seat structure & sleeve-guided balanced trim, available in DN40-DN600, -100℃~560℃. Ideal for industrial flow regulation. Contact us for custom quotes!
| Quantity: | |
|---|---|
A high-performance cage sleeve control valve engineered by Yuefeng Valve, designed to deliver precise fluid flow and pressure regulation for a wide range of industrial applications. Built with a double-seat structure and sleeve-guided balanced trim, this control valve ensures stable operation, minimal pressure loss, and exceptional durability even under harsh working conditions. Compatible with pneumatic membrane, pneumatic piston, electric, and electro-hydraulic actuators, our cage sleeve control valve offers flexible integration into diverse industrial control systems, meeting the strictest performance standards for flow control projects.
Parameter Category | Details |
Size Range | 2"~24" (DN40~DN600) |
Pressure Rating | ASME 150~900#, PN1.6~16.0MPa |
Temperature Range | -100℃ ~ 560℃ |
Leakage Performance Standard | ASME B16.104, GB/T4213-2008, GB/T17213, IEC60534 |
Connection Standards | Flange: JB/T79-2015, GB/T9113-2010, HG/T20592-2009, ASME B16.5Butt Weld: GB/T9124-2010, ASME B16.25, GB/T12224-2015 |
Stem Seal Type | Standard packing seal, high-temperature packing seal, bellows seal (optional) |
Standard Leak Class | Class IV (metal seat) |
Flow Characteristics | Equal percentage, linear |
Adjustable Ratio | 50:1 |

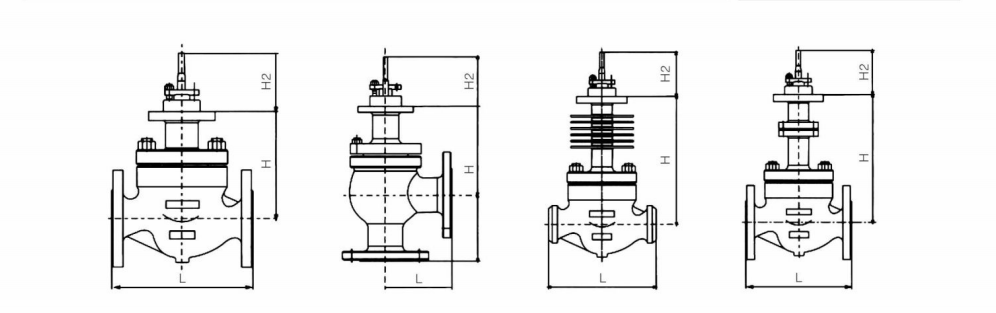

Body Type | Straight-through, angled, Z-shaped |
Upper Bonnet Type | Normal temperature type, high-temperature heat dissipation type, extension type |

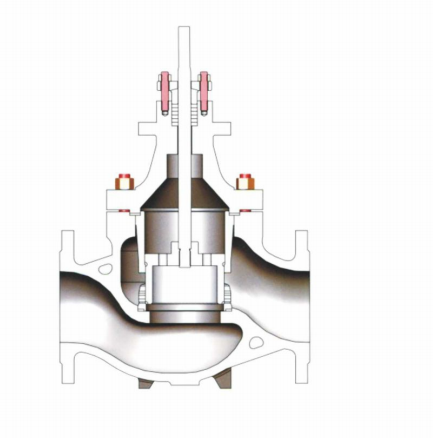

Feature: Split or integral standard cage design with balanced trim structure
Benefit: Eliminates excessive pressure impact on the valve core, ensures precise flow control, reduces wear and tear, and extends the valve’s service life by 30% compared to single-seat alternatives.
Feature: Normal temperature, high-temperature heat dissipation, and extension-type bonnets; optional bellows seal
Benefit: Adapts to extreme temperature environments from -100℃ to 560℃, prevents medium leakage effectively, and reduces maintenance frequency for high-risk applications.
Feature: Works with pneumatic membrane, pneumatic piston, electric, and electro-hydraulic actuators
Benefit: Flexibly matches different industrial control systems, supports both manual and automatic adjustment, and meets the control needs of various complex working conditions.
Feature: Adheres to ASME, GB, HG, and IEC standards for connections and leakage performance
Benefit: Ensures seamless integration into global industrial projects, eliminates compatibility issues, and simplifies procurement and installation processes.
Our cage sleeve control valve is widely recognized as a reliable flow control solution for the following industries:
Petrochemical Industry: Regulates the flow of crude oil, natural gas, and chemical media in refineries and chemical plants, withstanding corrosive and high-pressure working conditions.
Power Generation: Controls steam and water flow in thermal power stations, ensuring stable operation of boiler and turbine systems.
Water Treatment: Adjusts pressure and flow in water supply and sewage treatment systems, improving the efficiency of purification processes.
Metallurgy: Manages the flow of cooling water and molten medium in smelting processes, adapting to high-temperature industrial environments.
The standard leakage class is Class IV (metal seat), which complies with ASME B16.104 and GB/T4213-2008 standards. For applications requiring stricter leakage control, we can provide customized solutions upon request.

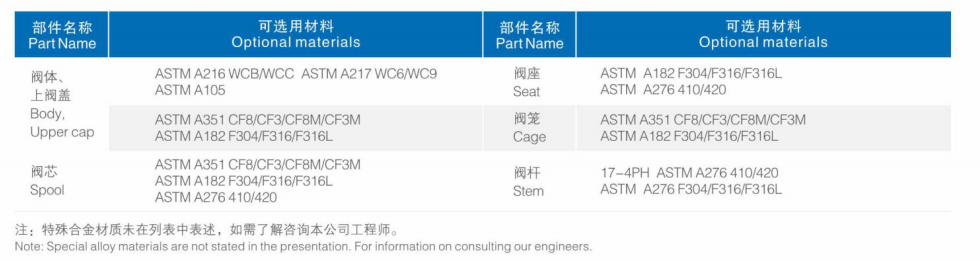

Yes. We offer customized body materials, bonnet types, and seal solutions to meet the needs of extreme temperatures, corrosive media, and high-pressure environments. Contact our technical team for detailed customization plans.
Our cage sleeve control valve is adaptable to four types of actuators: pneumatic membrane actuator, pneumatic piston actuator, electric actuator, and electro-hydraulic actuator, suitable for different control system requirements.
