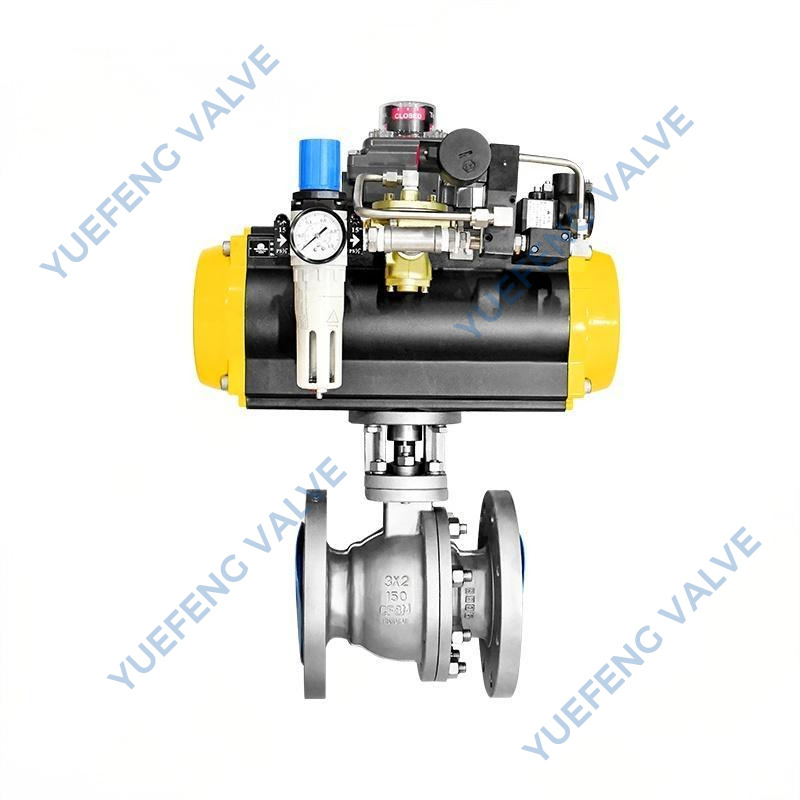

As a premier manufacturer and trusted global supplier of industrial fluid control solutions, we present the Pneumatic Actuated CF8M Stainless Steel Floating Ball Valve. Engineered specifically for rigorous procurement demands and large-scale facility integrations, this valve delivers exceptional cycle life, uncompromising safety, and precise automation for complex piping networks.
Premium CF8M (316) stainless steel construction
Rapid-response pneumatic actuation mechanism
Absolute bubble-tight sealing performance
Direct ISO 5211 mounting pad integration
Step into a new echelon of fluid control with our pneumatically actuated floating ball valve, meticulously crafted from premium CF8M stainless steel. When your engineering team handles this valve, the substantial weight and impeccably smooth, corrosion-resistant finish immediately communicate industrial-grade durability and precision manufacturing. Designed to eliminate the anxiety of unexpected downtime, the swift, authoritative mechanical sound of the pneumatic actuator engaging provides auditory confirmation of its rapid 0.5-second response time. The internal floating ball mechanism ingeniously utilizes the pipeline's own media pressure to forge an impenetrable, bubble-tight seal against the precision-machined PTFE seats, completely eradicating the risk of hazardous internal leaks. By integrating this valve into your facility's infrastructure, you are not merely installing a component; you are upgrading your entire operational efficiency. It seamlessly translates compressed air into formidable mechanical torque, ensuring your automated processes flow without interruption. The sleek, streamlined exterior resists environmental degradation in harsh chemical plants or salty marine environments, while the full-bore interior guarantees that your media glides through with zero turbulence and zero pressure drop. This is the definitive solution for facility managers and piping engineers who demand uncompromising reliability, minimal maintenance, and a profoundly extended service life from their fluid management systems.
| Product Name | Pneumatic Actuated CF8M Stainless Steel Floating Ball Valve |
|---|---|
| Valve Type | Floating Ball Valve (Typically 2-piece or 3-piece split body design) |
| Actuation Method | Pneumatic Actuator (Double Acting / Spring Return Single Acting) |
| Body Material | CF8M (316 Stainless Steel) |
| Ball / Stem Material | SS316 / CF8M Stainless Steel |
| Seat / Seal Material | PTFE / RTFE / FKM / Flexible Graphite (Customizable metal hard seal based on working conditions) |
| Size Range | 1/2" - 12" (DN15 - DN300) |
| Pressure Rating | Class 150/300/600, PN16-PN100, or 1000 WOG |

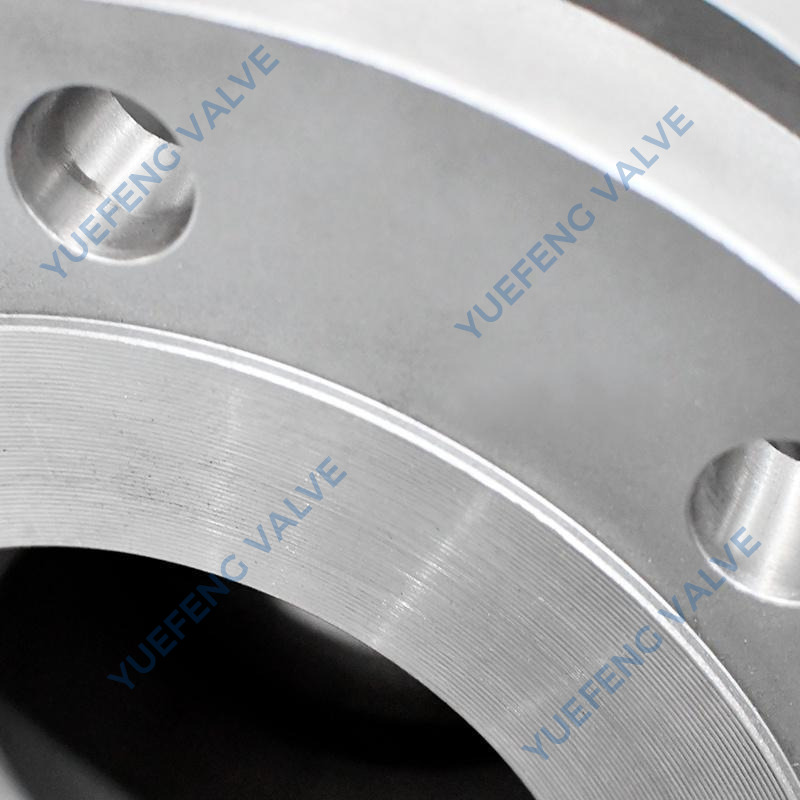

| Connection Type | Flanged (RF) / Threaded (NPT/BSPP) / Butt Weld (BW) |
| Applicable Temperature | -20°C to 180°C (PTFE soft seal) / Customizable for high temp or low temp (-196°C) versions |
| Port Type | Full Port / Full Bore |
| Design & Manufacturing Standards | API 6D, ASME B16.34, ISO 17292, DIN EN 12266 |
| Fire Safe Standards | API 607 / API 6FA |
| Mounting Standard | ISO 5211 Direct Mounting Pad |
Engineered to exceed the most stringent industrial requirements, this valve offers a suite of advanced features designed to optimize your piping infrastructure. Every element is deliberately structured to enhance operational safety, maximize throughput, and minimize the total cost of ownership for large-scale industrial projects.
Instantaneous Actuation Response: The high-torque pneumatic cylinder translates air pressure into immediate rotational force, enabling lightning-fast opening and closing cycles that keep your batch processes running on exact schedules without lag.
Unyielding Structural Integrity: Cast from top-tier CF8M stainless steel, the heavy-duty valve body withstands brutal mechanical stress and aggressive external environments, ensuring decades of reliable service in the harshest industrial zones.
Unrestricted Media Flow: The true full-bore architecture mirrors your pipeline's internal diameter perfectly, eliminating bottlenecks, preventing particulate accumulation, and dramatically reducing the energy load on your pumping systems.
Frictionless Operation: Highly polished SS316 ball components glide effortlessly against self-lubricating PTFE seats, minimizing operational torque and extending the lifespan of both the valve internals and the pneumatic actuator.
Universal Compatibility: Standardized connection ends and global pressure ratings ensure this valve integrates flawlessly into diverse international piping frameworks, simplifying procurement for multinational operations.
Corrosion is the silent destroyer of industrial infrastructure, leading to catastrophic system failures and contaminated product batches. Our valve is primarily constructed from premium CF8M (316 stainless steel), providing an impenetrable defense against aggressive media. This exceptional metallurgical composition drastically reduces the risk of equipment rust, safeguarding your operational continuity and protecting your bottom line.
Superior Pitting Resistance: The strategic addition of molybdenum in the CF8M alloy creates a resilient barrier against chloride-induced pitting, making it the ultimate choice for marine, coastal, and offshore applications.
Crevice Corrosion Immunity: Engineered to withstand harsh acidic and alkaline environments, this material prevents localized degradation in complex chemical processing plants where standard alloys rapidly fail.
Uncompromised Purity: The ultra-smooth, non-reactive stainless steel surface prevents media contamination, perfectly accommodating the strict hygiene and cleanliness protocols of the food, beverage, and pharmaceutical sectors.
Extended Asset Lifespan: By actively resisting both environmental weathering and internal chemical attacks, the valve significantly reduces replacement frequency, optimizing your long-term capital expenditure.
In the era of smart manufacturing, precise automation is not optional; it is a critical necessity. This valve is equipped with a high-performance pneumatic actuator, available in both double-acting and spring-return configurations, designed to execute control commands with flawless precision. It serves as the reliable, heavy-duty muscle behind your sophisticated automated control systems.
Lightning-Fast Cycling: Achieves a full 90-degree open or close stroke within a mere 0.5 to 2 seconds, providing the agility needed for emergency shutdowns or rapid, high-volume batching operations.
Direct ISO 5211 Integration: The standardized mounting pad eliminates the need for cumbersome brackets or custom adapters, ensuring a highly rigid, vibration-free connection between the valve stem and the actuator.
Seamless System Synergy: Effortlessly accommodates solenoid valves, limit switches, and smart positioners, allowing for instantaneous feedback and precision control within your facility's DCS or PLC networks.
Fail-Safe Reliability: The spring-return single-acting option guarantees that the valve will automatically revert to a predetermined safe position upon any loss of air pressure, averting potential system disasters.
Fugitive emissions and internal leaks represent lost revenue, environmental hazards, and severe safety risks. Our advanced floating ball design ingeniously harnesses the kinetic energy of the pipeline media. As pressure increases, it actively forces the highly polished ball against the downstream seat, creating an adaptive, bubble-tight seal that grows stronger as system demands intensify.
Bi-Directional Bubble-Tight Shutoff: Delivers absolute zero-leakage performance in both flow directions, providing ultimate isolation for critical pipeline segments and ensuring absolute fluid control.
Versatile Seating Options: Choose from standard PTFE, reinforced RTFE, FKM, or flexible graphite to perfectly match your specific temperature ranges and aggressive chemical compatibility requirements.
Custom Metal-to-Metal Hard Sealing: For severely abrasive slurries or extreme high-temperature applications, our customized hard-faced metal seats provide indestructible sealing integrity where soft polymers would fail.
Dynamic Wear Compensation: The floating architecture naturally compensates for microscopic wear over time, maintaining a pristine, leak-proof seal even after hundreds of thousands of high-pressure actuation cycles.
Protecting your personnel, your facility, and the surrounding environment is our paramount design philosophy. Engineered to meet the most rigorous global safety directives, this valve incorporates multiple layers of mechanical fail-safes. It provides procurement teams and safety engineers with the absolute certainty required for hazardous, high-stakes industrial environments.
Blow-Out Proof Stem Architecture: An internally loaded, bottom-entry stem design physically prevents the stem from being ejected by sudden pressure spikes, eliminating a critical safety vulnerability in high-pressure lines.
Anti-Static Device Integration: Built-in grounding mechanisms ensure that static electricity generated by fluid friction is safely dissipated into the piping, a mandatory feature for ATEX-certified explosive atmospheres.
Certified Fire-Safe Design: Strictly compliant with API 607 and API 6FA standards, featuring a secondary metal-to-metal seal that engages during a fire, preventing the valve from feeding combustible media into a blaze.
Global Regulatory Alignment: Manufactured in strict accordance with API 6D, ASME B16.34, and ISO 17292, ensuring your facility passes international safety audits with zero compliance issues.
Fluid dynamics play a crucial role in the overall energy consumption of your facility. Any restriction in the pipeline forces your pumps to work harder, driving up electrical costs and mechanical wear. Our valve features an optimized full-port (full-bore) structural design, ensuring the internal flow path is completely unobstructed and perfectly aligned with the connecting pipes.

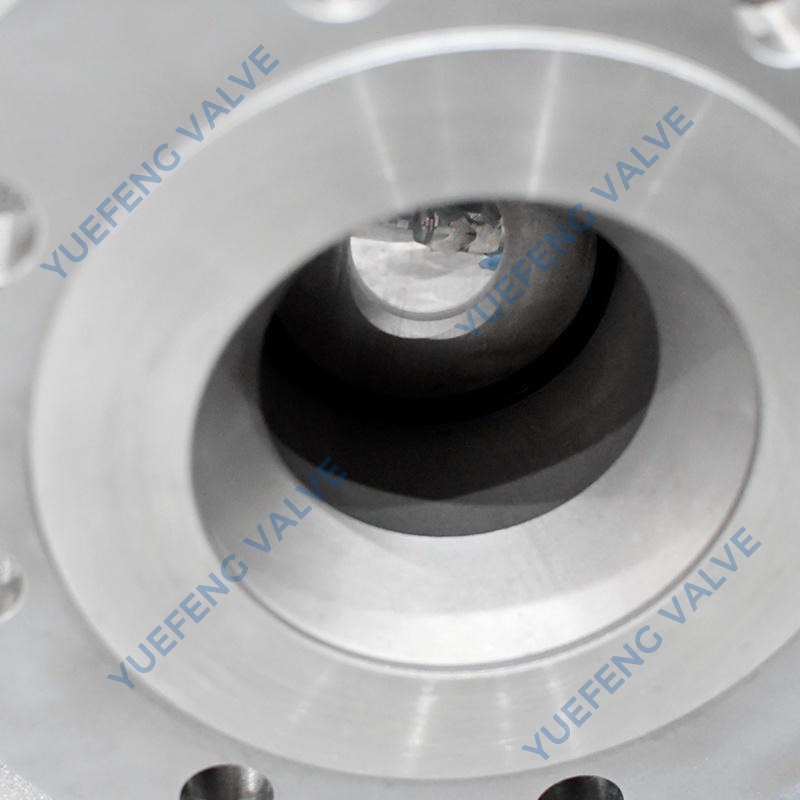

Zero Flow Restriction: The internal diameter of the ball matches the pipeline exactly, resulting in an ultra-low flow resistance coefficient and maximizing fluid transfer volume across your network.
Energy Cost Reduction: By eliminating pressure drops and turbulence across the valve, your pumping systems operate at peak efficiency, noticeably reducing your facility's overall energy footprint.
Anti-Clogging Geometry: The smooth, continuous internal cavity prevents the accumulation of suspended solids, making it exceptionally reliable for handling viscous fluids or media containing micro-particulates.
Cavitation Prevention: The streamlined flow path significantly reduces the risk of cavitation and accompanying vibration, protecting sensitive downstream instrumentation from destructive hydraulic shock.
Downtime is the most expensive metric in any industrial operation. We engineered this floating ball valve to be as accommodating to your maintenance crew as it is robust in operation. By drastically simplifying the repair process and utilizing ultra-durable components, this valve acts as a strategic asset that actively drives down your long-term operational expenses.
Rapid In-Line Servicing: The intelligent 2-piece or 3-piece split-body construction allows technicians to perform swift internal inspections and seal replacements without removing the entire valve body from the pipeline.
Minimized Factory Downtime: Streamlined maintenance procedures mean your critical processes are back online in a fraction of the time compared to servicing traditional, monolithic valve designs.
High-Cycle Durability: The combination of a heavy-duty pneumatic rack-and-pinion actuator and friction-optimized internal components guarantees millions of trouble-free operational cycles before overhaul is required.
Optimized TCO: A higher initial investment in premium CF8M materials and precision engineering pays massive dividends by virtually eliminating premature failures and costly emergency replacements.
Securing a reliable supply chain for critical fluid control components requires a partner who understands the high stakes of large-scale industrial operations. As a dedicated manufacturer and global supplier, we do not just distribute valves; we engineer comprehensive solutions tailored to the rigorous demands of modern procurement professionals. Our production facilities operate under strict quality management systems, ensuring every single unit performs flawlessly right out of the crate.
Uncompromising Quality Control: Every pneumatic actuated ball valve undergoes rigorous pressure, leakage, and actuation testing before it ever leaves our facility, guaranteeing 100% operational readiness upon arrival.
Scalable Production Capacity: Whether you require a specialized prototype for a pilot plant or thousands of units for a massive refinery expansion, our agile manufacturing lines ensure on-time delivery for high-volume bulk orders.
Deep Technical Expertise: Our in-house engineering team provides comprehensive support, from initial sizing and material selection to post-installation troubleshooting, acting as a seamless extension of your own technical department.
Customized Manufacturing Capabilities: We offer extensive customization options, including specialized alloy selections, custom actuation parameters, and bespoke sealing materials to solve your most unique flow control challenges.
Global Logistics Network: We leverage established international shipping partnerships to ensure your critical components arrive securely, fully documented, and precisely when your project schedule dictates.
To assist your engineering and procurement teams in making an informed, data-driven decision, we have compiled detailed answers to the most critical technical questions regarding our pneumatically actuated CF8M floating ball valves. If your specific operational parameters are not addressed below, our technical support staff is ready to assist you immediately.
The choice between actuators fundamentally dictates your system's fail-safe behavior. Double-acting actuators require compressed air to both open and close the valve, offering highly efficient, balanced torque for standard automated operations. Spring-return (single-acting) actuators use air to open (or close) the valve, but rely on heavy-duty internal mechanical springs to force the valve back to a default safe position if the air supply fails. Spring-return is absolutely mandatory for critical lines where a power or air loss must trigger an automatic emergency shutdown to prevent disasters.
CF8M is the cast equivalent of 316 wrought stainless steel. It contains 2% to 3% molybdenum, which dramatically enhances its resistance to pitting and crevice corrosion, particularly in chloride-rich environments like seawater, brine, or acidic processing lines. This makes it vastly superior to standard CF8 (304) stainless steel, ensuring the valve maintains its structural integrity and prevents media contamination over a drastically extended lifespan in harsh chemical plants.
Yes, but it requires a specific internal configuration. While our standard PTFE soft seals are rated for temperatures up to 180°C and are excellent for clean fluids, high-temperature steam or abrasive media will quickly degrade soft polymers. For these harsh conditions, we customize the valve with metal-to-metal hard sealing (such as Stellite-faced seats) and high-temperature flexible graphite packing, expanding its operational threshold to handle severe abrasion and extreme thermal stress without leaking.
Due to the self-lubricating nature of the PTFE seats and the fully sealed design of the pneumatic actuator, routine maintenance is exceptionally minimal. However, to guarantee optimal longevity, we recommend the following protocols:
Periodically checking the airline filters and lubricators to ensure only clean, dry air is reaching the actuator cylinder.
Conducting visual inspections of the ISO 5211 mounting bracket to ensure all bolting remains torqued to specification despite pipeline vibrations.
Scheduling preventative replacement of the valve's soft seals during major plant turnarounds, a process easily facilitated by the 2-piece or 3-piece split-body design.
Absolutely. Safety compliance is engineered into the very core of this product. It features a built-in anti-static spring mechanism that continuously grounds the ball and stem to the valve body, preventing dangerous static discharge in explosive environments (fully ATEX compliant). Furthermore, it is designed to meet strict API 607 and API 6FA fire-safe standards, utilizing a secondary machined metal seat that automatically engages if the primary soft seal is destroyed by extreme heat, preventing the valve from feeding combustible media into a facility fire.
