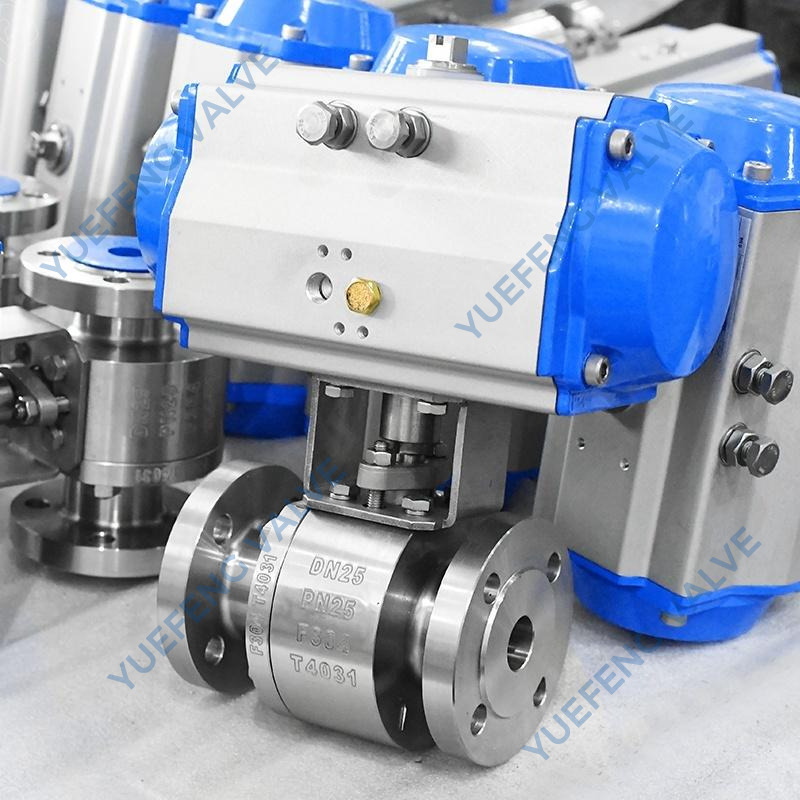

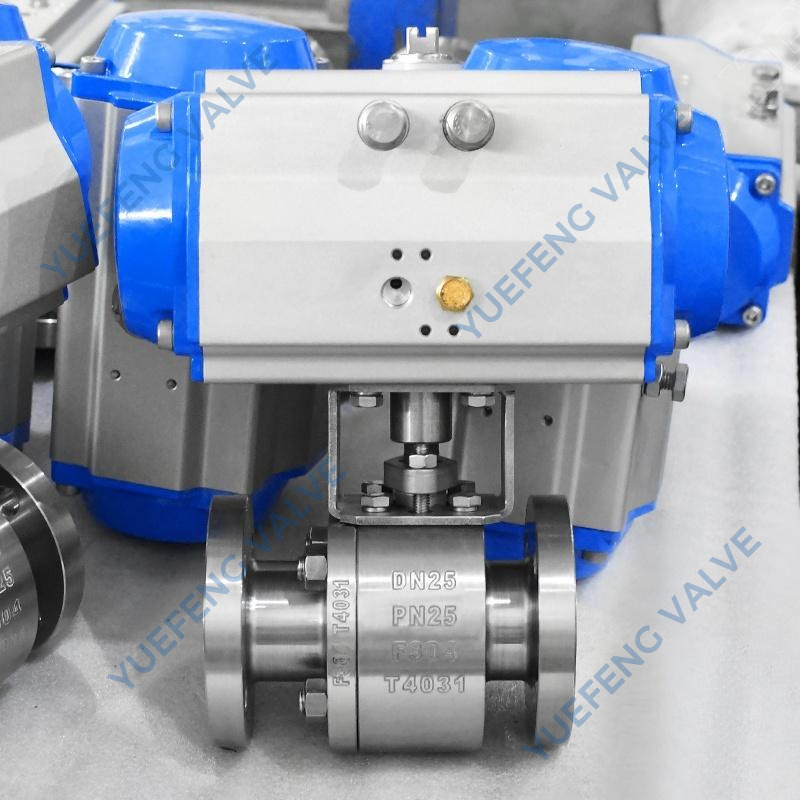

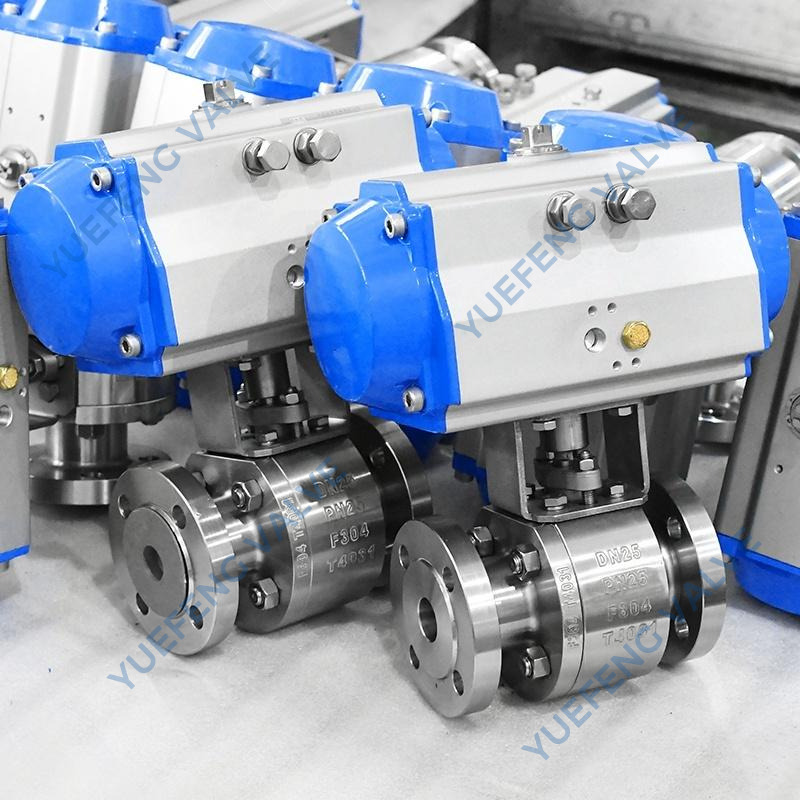

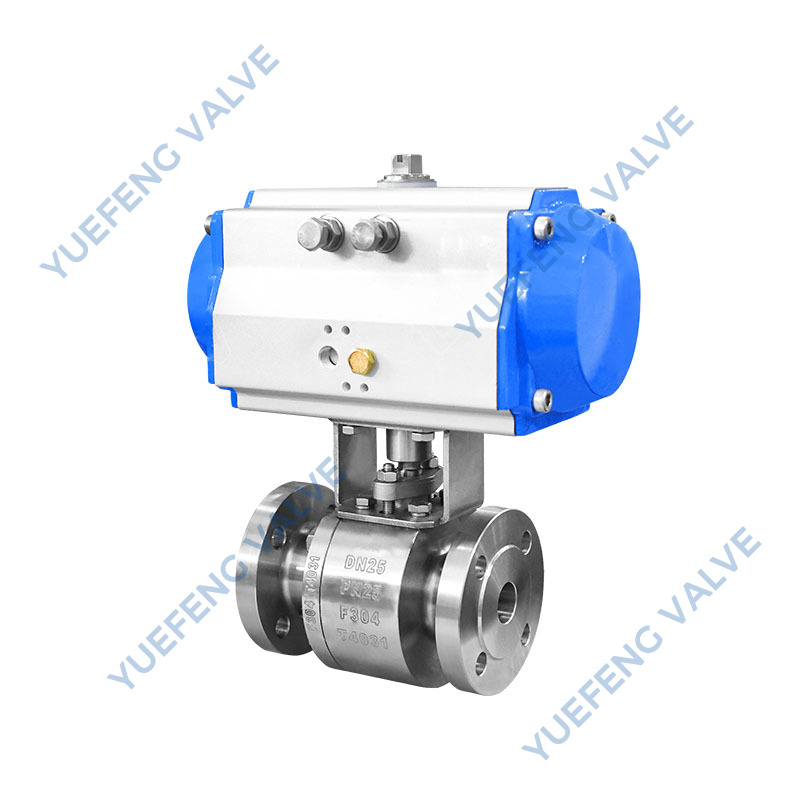

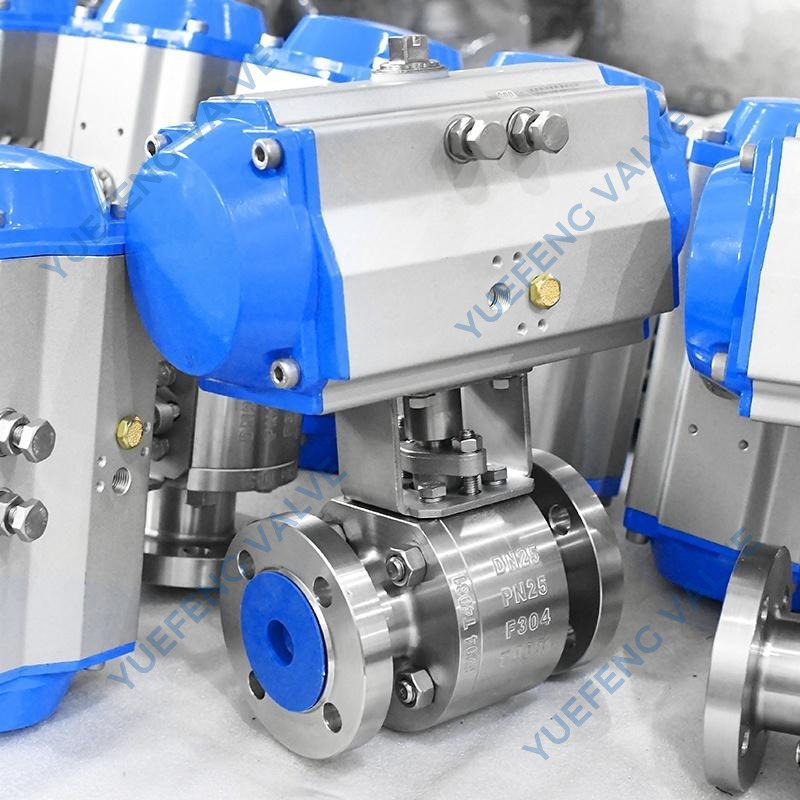

As a premier manufacturer and supplier of industrial fluid control solutions, we present our premium pneumatic actuated stainless steel floating ball valve. Engineered for rigorous fluid management, this valve delivers immediate response, exceptional durability, and uncompromised sealing for complex pipeline networks. Partnering with us ensures your facility receives components built to exacting international standards.
Automated pneumatic actuation for rapid and precise cycle times.
Corrosion-resistant stainless steel construction for harsh environments.
Versatile connection options tailored for diverse industrial procurement needs.
When you run your hands over the heavy-duty, meticulously machined surface of this pneumatic actuated stainless steel floating ball valve, the superior craftsmanship is immediately apparent. The cold, polished exterior speaks to its dense, non-porous metallic structure, specifically forged to withstand the most aggressive chemical environments and extreme pressures. There are no rough edges or casting flaws; every contour is engineered to facilitate seamless integration into your existing pipeline infrastructure.
In operation, the pneumatic actuator engages with a crisp, authoritative mechanical sound—a sharp release of air followed by a solid, decisive rotation of the internal floating ball. This immediate tactile and auditory feedback assures operators of its absolute precision. The smooth, unobstructed internal channel allows liquids and gases to glide through without turbulence, significantly reducing energy loss and mechanical wear. This immediate response ensures your fluid lines are controlled seamlessly, preventing hazardous spills and optimizing your flow rates.
By integrating this valve into your infrastructure, you are not merely installing a component; you are upgrading your entire system's reliability. For industrial facilities demanding uninterrupted performance, this valve serves as the ultimate safeguard against operational bottlenecks. It eliminates the physical strain of manual operation, protects your workforce from exposure to dangerous media, and ensures your production lines remain active, safe, and highly efficient around the clock.
Understanding the precise technical capabilities of your equipment is crucial for successful industrial procurement. Below is the comprehensive technical data for our pneumatic actuated stainless steel floating ball valve. These specifications are strictly adhered to during our manufacturing process to ensure every unit meets the rigorous demands of your specific engineering applications.
| Parameter | Specification Details |
|---|---|
| Material | 304/316 Stainless Steel (CF8, CF8M, CF3M) |
| Driving Mode | Pneumatic Actuator (Single Acting/Spring Return, Double Acting) |
| Connection Form | Flange, Thread, Wafer, Tri-Clamp |
| Structure | Floating Ball Valve (1-Piece, 2-Piece, 3-Piece) |
| Nominal Pressure | PN1.0-32.0MPa / ANSI Class 150-900 / 1000 WOG |
| Channel | Straight Through, Three-Way (L-Port/T-Port), V-Port |
| Seat Material | PTFE, RPTFE, PPL, Metal Hard Seal |
| Applicable Temperature | -40°C ~ 300°C (depending on seat material) |
| Applicable Medium | Water, Oil, Natural Gas, Steam, Chemical Corrosive Fluids, etc. |
| Standards | API 6D, ASME B16.34, DIN, JIS, ISO 5211 (Direct Mounting Pad) |
Each parameter listed above represents our commitment as a trusted supplier to deliver versatile, high-performance fluid control mechanisms. Whether you require specific pressure ratings or specialized seat materials, our manufacturing capabilities are aligned to provide the exact configuration your project demands.
Our pneumatic actuated stainless steel floating ball valve is engineered to resolve common pain points in fluid control, transforming potential operational hazards into streamlined, automated processes. By focusing on structural integrity and rapid response times, this product directly enhances your facility's operational throughput and safety protocols.
Instantaneous Flow Control: The pneumatic actuator translates compressed air into immediate mechanical action, allowing for rapid opening and closing cycles that prevent overflow and maintain strict batch consistency.
Zero-Leakage Assurance: Precision-machined floating balls press firmly against the downstream seat under pressure, creating a bubble-tight seal that eliminates product loss and environmental contamination.
Reduced Maintenance Burden: Engineered with self-lubricating seats and highly polished ball surfaces, the valve minimizes internal friction, drastically extending the lifespan of the internal components and reducing the frequency of maintenance shutdowns.
Seamless System Integration: Designed to fit effortlessly into existing automated setups, the standardized mounting pad allows for quick installation of limit switches, positioners, and solenoid valves without the need for custom fabrication.
Constructed from premium 304/316 stainless steel (CF8/CF8M) through precision casting or forging, this valve exhibits a formidable defense against corrosive attacks and abrasive wear. The dense molecular structure of the steel ensures it can withstand high-pressure surges without deformation. This exceptional durability makes it the perfect solution for the punishing environments found in chemical processing plants, pharmaceutical manufacturing, food and beverage production, and offshore marine applications, ensuring decades of reliable service.
Highly resistant to internal pitting and external environmental corrosion.
Maintains structural integrity under extreme pressure fluctuations.
Food-grade compatible materials available for sanitary applications.
Equipped with a high-performance pneumatic actuator, this valve brings unparalleled automation to your pipeline. You can select between a single-acting (spring return) mechanism for crucial fail-safe operations during power loss, or a double-acting mechanism for applications requiring high torque. The inclusion of an ISO 5211 standard direct mounting pad eliminates the need for cumbersome brackets, enabling rapid response times and highly accurate remote control. Furthermore, explosion-proof accessory upgrades are readily available for hazardous zones.
Fail-safe single-acting options protect systems during unexpected air loss.
Direct ISO 5211 mounting ensures rigid, vibration-free actuator attachment.
Readily accepts explosion-proof limit switches and solenoid upgrades.
Safety and containment are paramount in industrial fluid management. This valve utilizes premium seat materials like PTFE and RPTFE, or robust metal hard seals, to achieve bubble-tight, zero-leakage performance. Beyond standard sealing, it is fortified with an anti-static device to prevent dangerous electrical buildup and a blow-out proof stem design that keeps the stem securely seated even under immense internal pressure. Compliance with API 607 fire-safe standards guarantees that the valve will maintain its structural and sealing integrity during extreme fire emergencies.
Bubble-tight sealing prevents hazardous chemical leaks and product waste.
Built-in anti-static mechanisms protect volatile media from ignition.
API 607 fire-safe certification ensures containment during facility fires.
To accommodate various installation spaces and maintenance schedules, we offer this valve in 1-piece, 2-piece, and 3-piece body configurations. The highly sought-after 3-piece design is a revelation for facility managers; it allows the central valve body to be swung out for rapid online maintenance and seal replacement without the need to cut or dismantle the surrounding pipeline. This intelligent structural design drastically reduces factory downtime and slashes ongoing maintenance labor costs.
Swing-out 3-piece body allows for in-line repair and seal replacement.
Eliminates the need to drain or dismantle extensive pipeline sections.
Significantly lowers the total cost of ownership through reduced labor hours.
No two pipeline networks are identical, which is why this valve is engineered for maximum versatility. The full port design ensures the internal diameter matches the pipe, maximizing flow capacity and virtually eliminating pressure drops. For more complex operations, a V-port ball core can be selected for highly precise flow regulation, while three-way (L-Port or T-Port) configurations are available for the sophisticated diverting, mixing, or bypassing of fluid media within a single compact unit.
Full port construction prevents flow restrictions and pressure loss.
V-port options transform the valve into a highly accurate control instrument.
Three-way designs simplify complex piping layouts by combining multiple flow paths.
Global engineering projects require components that meet universally recognized benchmarks. Our valves are manufactured in strict accordance with leading international standards, including API 6D, ASME B16.34, DIN, and JIS. Before leaving our facility, every single unit undergoes 100% rigorous pressure and leakage testing. Backed by authoritative certifications such as CE, SIL3, and ATEX, this valve provides procurement managers and system engineers with the absolute certainty of compliance, safety, and operational reliability.
Strict adherence to ASME, API, DIN, and JIS dimensional and testing standards.
Every valve is individually pressure tested before shipment.
SIL3 and ATEX certifications ensure suitability for critical and explosive environments.
Selecting the right manufacturer and supplier is just as critical as selecting the right equipment. We have built our reputation on a foundation of uncompromising quality control, extensive engineering expertise, and a deep understanding of industrial procurement needs. When you source your fluid control components from us, you are securing a partnership dedicated to optimizing your operational efficiency.
Direct Manufacturer Advantage: By controlling the entire production process from foundry to final assembly, we ensure consistent quality and offer highly competitive pricing for bulk procurement.
Custom Engineering Solutions: Our technical team collaborates directly with your engineers to customize valve materials, actuator sizing, and connection types to perfectly match your specific media and pressure requirements.
Stringent Quality Assurance: We utilize advanced metallurgical analysis and automated pressure testing rigs to guarantee that every valve performs flawlessly under extreme conditions.
Reliable Global Fulfillment: With optimized inventory management and robust logistics networks, we ensure your critical components are delivered on schedule, preventing costly project delays.
In a single-acting (spring-return) configuration, compressed air is used to drive the valve into its open (or closed) position while simultaneously compressing internal springs. If the air supply is interrupted due to a system failure or power loss, the mechanical energy stored in the springs is instantly released, forcing the valve back to its designated safe position. This automatic response is critical for preventing hazardous spills or dangerous pressure buildups during emergencies.
Yes, the 3-piece structural design is specifically engineered for in-line maintenance. By simply removing a few structural bolts, the central body section containing the ball and seats can be swung out from between the two end caps, which remain welded or flanged to the pipeline. This allows technicians to easily clean the internals or replace worn seals in a matter of minutes, completely eliminating the need to cut pipes or dismantle large sections of your infrastructure.
The choice heavily depends on your operating temperature and the nature of the fluid. PTFE (Teflon) and RPTFE provide excellent bubble-tight sealing and low operating torque for standard media like water, oil, and gas at temperatures up to approximately 200°C. However, if your application involves highly abrasive media containing solid particulates, or extreme temperatures approaching 300°C, a Metal Hard Seal is required. Metal seals offer superior wear resistance and thermal stability, ensuring longevity in severe service conditions.
Absolutely. For facilities operating in hazardous zones, such as petrochemical refineries or grain processing plants, we offer pneumatic actuators and integrated accessories (like solenoid valves and limit switches) that are fully ATEX certified. Additionally, the valves themselves feature built-in anti-static devices that maintain continuous electrical continuity between the ball, stem, and body, safely grounding any static electricity generated by fluid friction and preventing accidental ignition.
The ISO 5211 direct mounting pad is an internationally standardized interface cast directly onto the top of the valve body. It allows pneumatic actuators to be bolted directly to the valve without the need for custom-machined mounting brackets or external drive couplings. This direct connection eliminates mechanical play (hysteresis) between the actuator and the valve stem, ensuring highly precise rotational control, reducing overall height, and significantly speeding up the installation and automation process.
