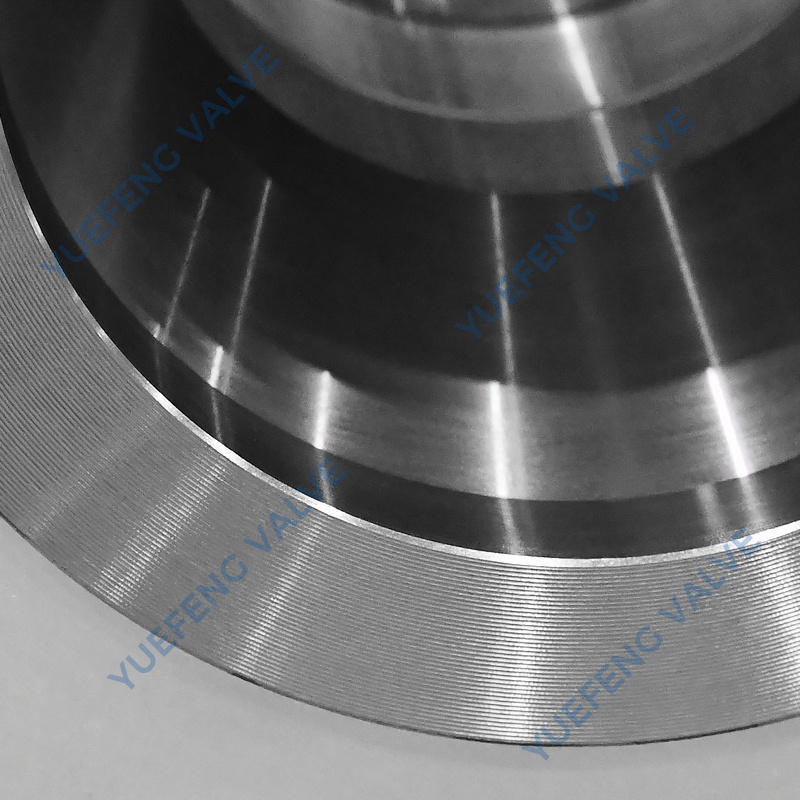

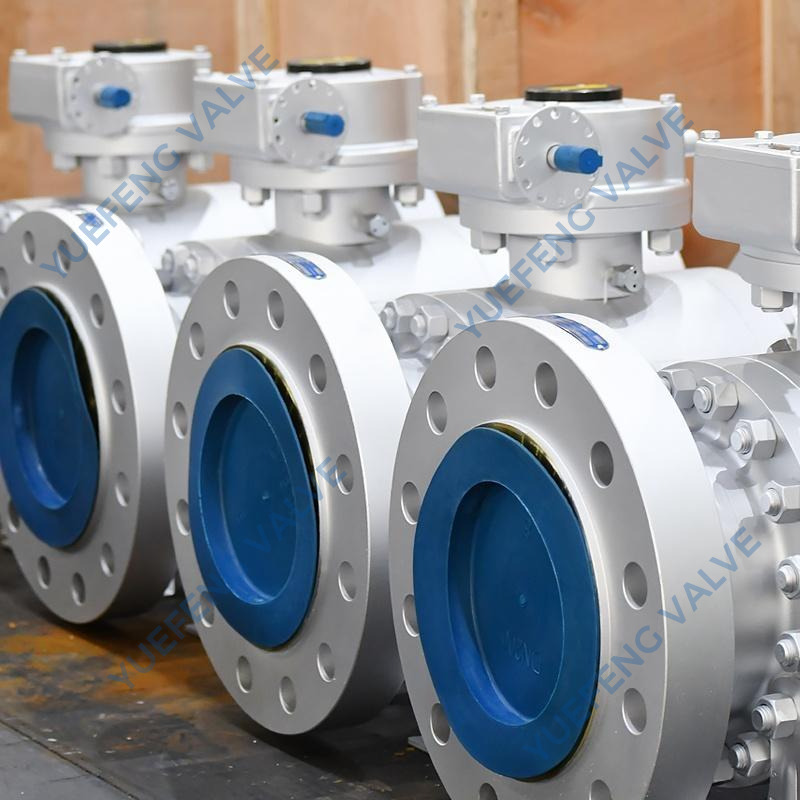

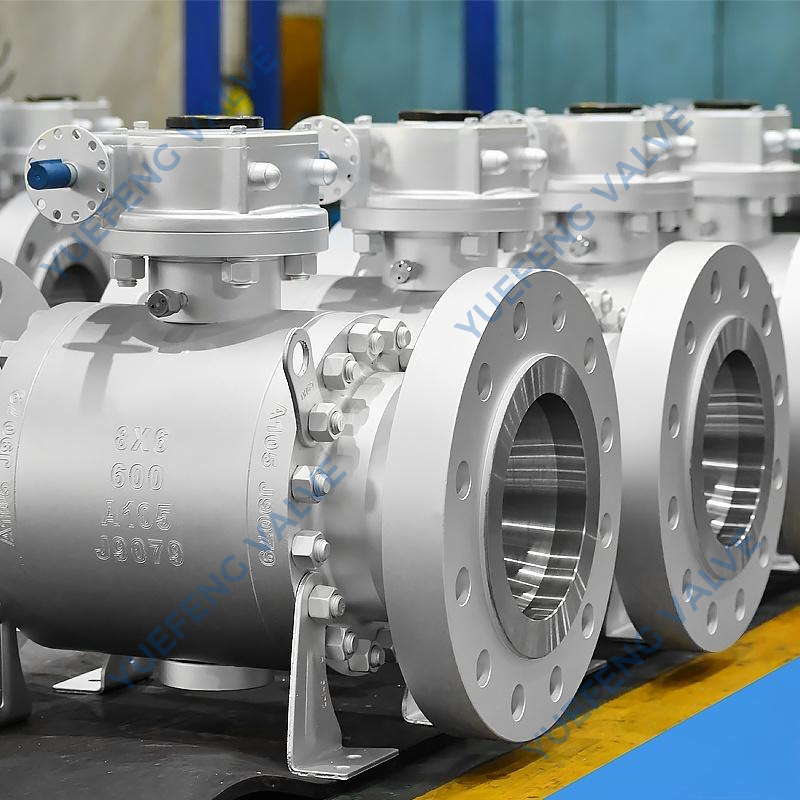

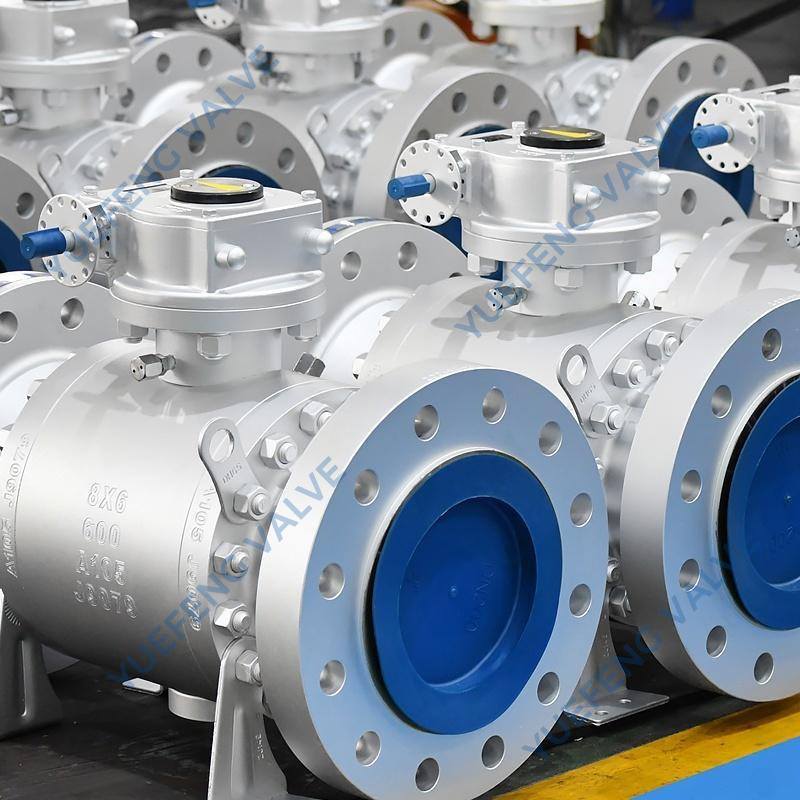

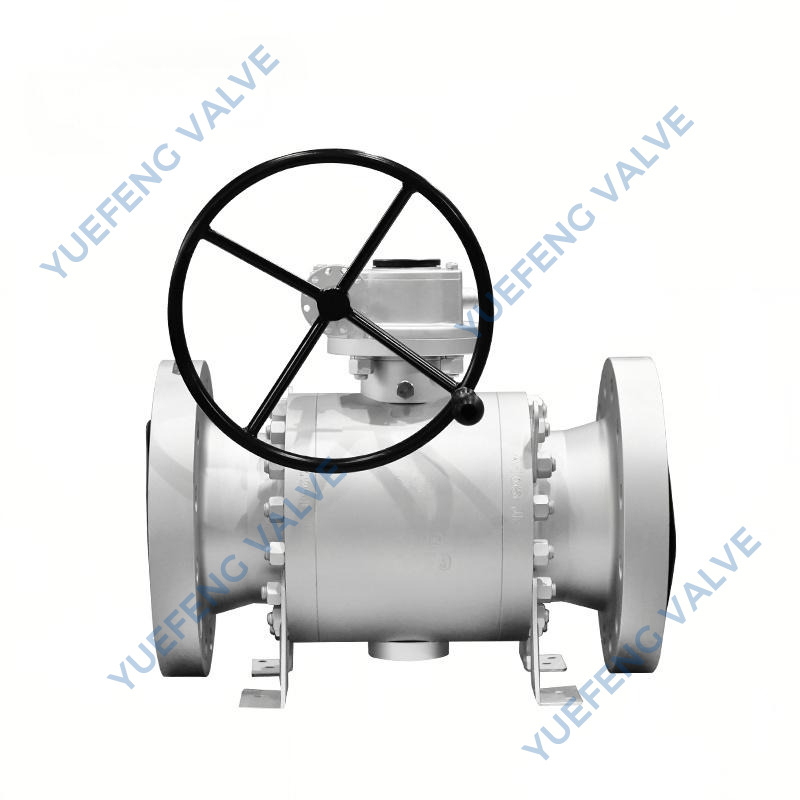

As a premier manufacturer and bulk supplier of industrial flow control solutions, we proudly offer the meticulously engineered Reduced Bore Flanged Trunnion Mounted Ball Valve. Designed specifically to optimize heavy-duty pipeline efficiency, this exceptional valve delivers profound cost-saving advantages without ever compromising on high-pressure sealing integrity. Ideal for large-scale procurement, facility upgrades, and demanding industrial networks, it guarantees reliable, long-lasting shut-off performance.
Compact, weight-saving reduced bore architecture
Robust, high-pressure trunnion mounted construction
Comprehensive material options for extreme environmental conditions
The Reduced Bore Flanged Trunnion Mounted Ball Valve represents the absolute pinnacle of fluid control engineering, meticulously crafted to conquer the most unforgiving pipeline environments. Upon physical inspection, the sheer density and solid metallic resonance of the forged or cast body immediately communicate an uncompromising industrial-grade durability. The exterior finish, whether coated in a heavy-duty, anti-corrosive industrial epoxy or presenting the raw, flawlessly machined gleam of premium stainless steel, speaks volumes about a manufacturing process deeply obsessed with precision. Internally, the perfectly spherical ball, polished to an immaculate mirror-like finish, glides with a smooth, deliberate, and deeply satisfying mechanical resistance against the precisely engineered seats. This tactile feedback ensures a flawless, bubble-tight seal every single time the actuator engages. Beyond its physical craftsmanship, this valve acts as a critical, fail-safe guardian for your infrastructure. By ingeniously utilizing a reduced bore design, the overall physical footprint and the gross weight of the unit are significantly minimized. This brilliant structural refinement translates directly into reduced mechanical strain on your complex piping systems and exceptionally streamlined installation processes. The heavy-duty trunnion mounting mechanism anchors the internal ball securely at both the top and bottom, effortlessly absorbing massive, fluctuating line pressures. This prevents any lateral displacement of the ball, guaranteeing that the operational torque remains consistently low and manageable, even when subjected to extreme stress. For facility operators, project engineers, and procurement specialists looking to maximize their infrastructural investments, this valve offers a highly sophisticated balance of rugged longevity, unparalleled operational safety, and profound economic efficiency.
| Specification | Details |
|---|---|
| Size Range | 1/2" ~ 60" (DN15 ~ DN1500) |
| Pressure Rating | ASME Class 150 ~ 2500 (PN16 ~ PN420, JIS 10K/20K) |
| Working Temperature | -200°C ~ +600°C (Depending on body and seat material) |
| Body Material | Carbon Steel (WCB, LCB, A105, LF2), Stainless Steel (CF8, CF8M, F304, F316), Duplex/Super Duplex Stainless Steel, Alloy Steel |
| Ball Material | Stainless Steel (F304, F316, F316L, F51, F53), Carbon Steel with ENP/Tungsten Carbide Coating (A105+ENP/TCC) |
| Seat Material | Soft Seal (PTFE, RPTFE, Nylon, PEEK, Devlon), Metal Hard Seal (Tungsten Carbide, Stellite) |
| Connection Type | Flanged (RF, FF, RTJ), Butt Welding (BW) |
| Driving Mode | Lever, Worm Gear, Pneumatic, Electric, Electro-hydraulic |
| Design Standards | API 6D, API 608, ASME B16.34, ISO 14313, BS 5351 |
| Face to Face | ASME B16.10, API 6D |
| Fire Safe Standards | API 607, API 6FA |
| Structural Features | Reduced Bore, Trunnion Mounted, 2PC/3PC Split Body, Double Block and Bleed (DBB/DIB) |
| Safety Design | Fire Safe, Anti-static, Blow-out Proof Stem, Cavity Pressure Self Relief |
Engineered for maximum operational excellence, our flanged trunnion mounted ball valves incorporate a suite of advanced mechanical features that directly enhance facility safety and fluid management efficiency. Every individual component is machined to exceptionally strict tolerances to ensure unyielding, long-lasting performance in the harshest industrial sectors.
Optimized Flow Dynamics: The highly streamlined internal geometry minimizes fluid turbulence, ensuring a steady, predictable transit while fully capitalizing on the profound economic benefits of a reduced bore architecture.
Frictionless Actuation: Self-lubricating PTFE or heavy-duty metallic trunnion bearings drastically reduce rotational friction, allowing for swift, exceptionally low-torque operation even after prolonged periods of pipeline inactivity.
Unyielding Structural Integrity: The robust split-body design, available in both two-piece and three-piece configurations, provides phenomenal resistance against severe pipeline stresses, vibrations, and rapid thermal expansion.
Flawless Dynamic Sealing: Spring-loaded, floating seat assemblies dynamically adapt to constant pressure fluctuations, maintaining a continuous, aggressively tight seal against the securely anchored ball.
Superior Corrosion Resistance: Premium surface treatments and a meticulously curated selection of exotic materials protect the critical valve core from aggressive chemical attacks and highly abrasive particulates.
The reduced bore architecture stands as a primary, highly strategic advantage for large-scale industrial projects where rigorous budget optimization is paramount. By intentionally narrowing the internal flow diameter, this valve offers a brilliant, highly effective compromise between top-tier mechanical performance and overall capital expenditure.
Reduces overall valve weight by approximately 30% compared to full bore equivalents, significantly lowering international shipping, handling, and heavy-lifting expenses.
Decreases the sheer volume of expensive raw materials required for manufacturing, resulting in a highly competitive procurement cost for large-volume pipeline developments.
Minimizes the physical footprint of the unit, making installation in tightly confined pipeline galleries, offshore platforms, or dense manifold systems effortlessly manageable.
Perfectly suited for applications where minimal pressure drops are structurally acceptable, delivering exceptional, heavy-duty value without unnecessarily over-engineering the solution.
High-pressure pipelines demand absolute, uncompromising shut-off capabilities to prevent catastrophic failures. The trunnion mounted configuration fundamentally alters how extreme pressure is managed within the internal valve cavity, intelligently shifting the mechanical load away from the delicate seats and onto the robust, forged trunnion stems.
The mechanically fixed ball design ensures absolute zero displacement under extreme fluid pressure, entirely preventing seat crushing, deformation, and uneven mechanical wear.
Floating seat rings, constantly energized by the upstream line pressure, actively push against the stationary ball to guarantee a highly secure, zero-leakage seal under all conditions.
Advanced Double Block and Bleed (DBB) and Double Isolation and Bleed (DIB) capabilities allow for safe cavity venting, maintenance verification, and simultaneous upstream/downstream isolation.
Maintains consistently smooth, low-torque operability regardless of the massive pressure differentials across the valve, dramatically extending the lifespan of all internal actuating components.
Industrial environments vary wildly, ranging from sub-zero cryogenic processing plants to scorching, highly corrosive high-temperature refining units. Our comprehensive, meticulously developed material matrix ensures that every single valve is perfectly tailored to survive and thrive in its specific operational climate.
Heavy-duty body constructions are readily available in Carbon Steel, Stainless Steel, and Super Duplex Stainless Steel to effectively combat varying degrees of environmental corrosivity and structural stress.
Premium soft seating options, including PTFE, PEEK, and Devlon, provide resilient, bubble-tight sealing for standard oil, natural gas, and high-pressure water applications.
Advanced metal-to-metal sealing solutions, featuring ultra-hard Tungsten Carbide or Stellite surface coatings, deliver unparalleled resistance against severe abrasion and high-temperature degradation.
Broad thermal endurance capabilities, specifically engineered to perform flawlessly and maintain sealing integrity in extreme temperature ranges from a freezing -200°C up to a blistering +600°C.
Protecting your on-site personnel, your valuable infrastructure, and the surrounding natural ecosystem is our highest engineering priority. These valves are rigorously tested, inspected, and certified to meet and exceed the most stringent global safety, structural, and environmental emission standards.
Manufactured in strict accordance with API 6D and ASME B16.34 specifications, guaranteeing absolute structural reliability and pressure containment under maximum load.
Fully certified Fire Safe to API 607 and API 6FA standards, ensuring the valve maintains its critical sealing integrity and prevents fuel feeding during catastrophic facility fire events.
Built-in, spring-loaded anti-static devices continuously ground the internal rotating components to the valve body, entirely eliminating the risk of dangerous spark generation in explosive atmospheres.
A highly secure, blow-out proof stem design mechanically retains the stem within the body shell, completely preventing dangerous ejections during sudden, extreme high-pressure spikes.
Fully compliant with ISO 15848 Low Emission standards and NACE MR0175 protocols, ensuring the exceptionally safe handling of lethal sour gas and aggressively minimizing fugitive environmental emissions.
Unplanned pipeline downtime can severely impact operational profitability and facility output. This sophisticated valve incorporates highly proactive maintenance features specifically designed to address unexpected seal degradation swiftly, keeping your critical processes running smoothly without requiring immediate shutdown.
Equipped with an advanced emergency sealant injection system for both the stem and the seats, allowing maintenance operators to restore sealing integrity instantly if the primary soft rings are compromised by debris.
An intelligent cavity pressure self-relief mechanism automatically vents abnormal, dangerous thermal expansion pressure trapped in the body cavity, protecting the valve shell from catastrophic rupture.
Extra-heavy-duty construction, combined with easily replaceable internal components, significantly extends the overall operational service life of the valve, providing decades of reliable service.
Drastically reduces the frequency of complete, labor-intensive valve change-outs, thereby lowering long-term maintenance budgets and minimizing costly operational disruptions.
Modern industrial facilities rely heavily on highly centralized, automated control systems to maximize efficiency and safety. Recognizing this critical necessity, the valve is engineered from the ground up for seamless, plug-and-play integration with a vast array of modern actuation technologies.
Features a standardized, precision-machined ISO 5211 top mounting pad, allowing for the rapid, direct-mount installation of various actuators without the need for complex, custom-fabricated brackets.
Highly adaptable to manual worm gear, heavy-duty pneumatic, high-torque electric, or rapid-response electro-hydraulic actuators, based entirely on specific site requirements and power availability.
Precision-machined stem connections ensure absolute zero-backlash power transmission from the actuator directly to the ball, guaranteeing highly accurate flow positioning and modulation.
Facilitates effortless, highly reliable integration into sophisticated plant-wide automation networks, allowing for real-time performance monitoring and instantaneous remote flow management.
Partnering with a dedicated, highly specialized manufacturer for your fluid control infrastructure means securing significantly more than just a piece of hardware; it means gaining a powerful strategic advantage. We pride ourselves on delivering absolute engineering excellence and uncompromising quality assurance to industrial operators worldwide.
Unrivaled Manufacturing Expertise: Decades of highly specialized, hands-on experience in machining and assembling high-performance industrial valves ensure every single unit meets exacting, microscopic tolerances.
Rigorous Quality Control: From initial raw material spectral analysis to the final, exhaustive hydrostatic and pneumatic pressure testing, our strict QA protocols guarantee zero-defect deliveries to your site.
Scalable Production Capacity: Our state-of-the-art manufacturing facilities are fully equipped to handle massive volume orders swiftly, ensuring your critical project timelines are strictly met without delay.
Customized Engineering Solutions: We offer deeply tailored modifications, including specific face-to-face dimensions, specialized anti-corrosion coatings, and exotic material sourcing to perfectly match unique project demands.
Comprehensive Technical Support: Our dedicated team of seasoned engineers provides end-to-end guidance, from initial specification consultation and blueprint review to post-installation troubleshooting and maintenance advice.
To assist procurement managers, facility operators, and site engineers in making highly informed purchasing decisions, we have compiled detailed, professional answers to the most common technical inquiries regarding our flanged trunnion mounted ball valves.
What is the primary operational advantage of choosing a reduced bore over a full bore design?
A reduced bore valve features a slightly smaller internal flow diameter than the connected pipeline. The primary advantage is a highly significant reduction in physical size, gross weight, and overall procurement cost. It is the absolute optimal choice for pipeline systems where a slight, calculated pressure drop is acceptable, allowing facilities to drastically optimize their budgets without sacrificing heavy-duty, high-pressure sealing capabilities.
How exactly does the trunnion mounted design perform better under extreme high pressure?
Unlike standard floating ball valves where the ball is aggressively pushed into the downstream seat by the line pressure, a trunnion mounted valve anchors the ball mechanically via sturdy shafts at the top and bottom. This entirely prevents the ball from moving laterally. Instead, the line pressure pushes the floating, spring-energized seats against the stationary ball. This results in significantly lower operational torque, vastly reduced seat wear, and superior, long-lasting sealing stability in high-pressure applications.
Can this specific valve handle highly abrasive or extreme high-temperature media?
Yes, absolutely. While our standard soft seats (such as PTFE, Nylon, or PEEK) are perfect for clean fluids, we offer specialized metal-to-metal sealing configurations for harsh, unforgiving environments. By utilizing ultra-hard Tungsten Carbide or Stellite surface treatments on both the ball and seats, the valve can easily withstand severe abrasion, heavy solid particulates, and extreme operational temperatures up to +600°C without losing sealing integrity.
What happens if the internal seat gets scratched or damaged during active operation?
Our high-performance valves are equipped with an external emergency sealant injection system. If a seat ring is scratched or compromised by sharp pipeline debris, maintenance personnel can safely inject a highly specialized, viscous sealing compound directly into the seat area from the outside of the valve. This instantly creates a temporary, highly reliable seal, preventing dangerous leaks and allowing the pipeline to continue operating safely until scheduled maintenance can be performed.
Are these valves suitable for fully automated, remote-controlled pipeline networks?
Absolutely. Every single valve is manufactured with an integrated, ISO 5211 compliant top mounting pad. This globally standardized interface allows for the seamless, highly secure integration of pneumatic, electric, or electro-hydraulic actuators. Furthermore, the inherently low-torque design of the trunnion mechanism means that smaller, significantly more cost-effective actuators can be utilized to achieve rapid, precise, and highly reliable automated control across your facility.
