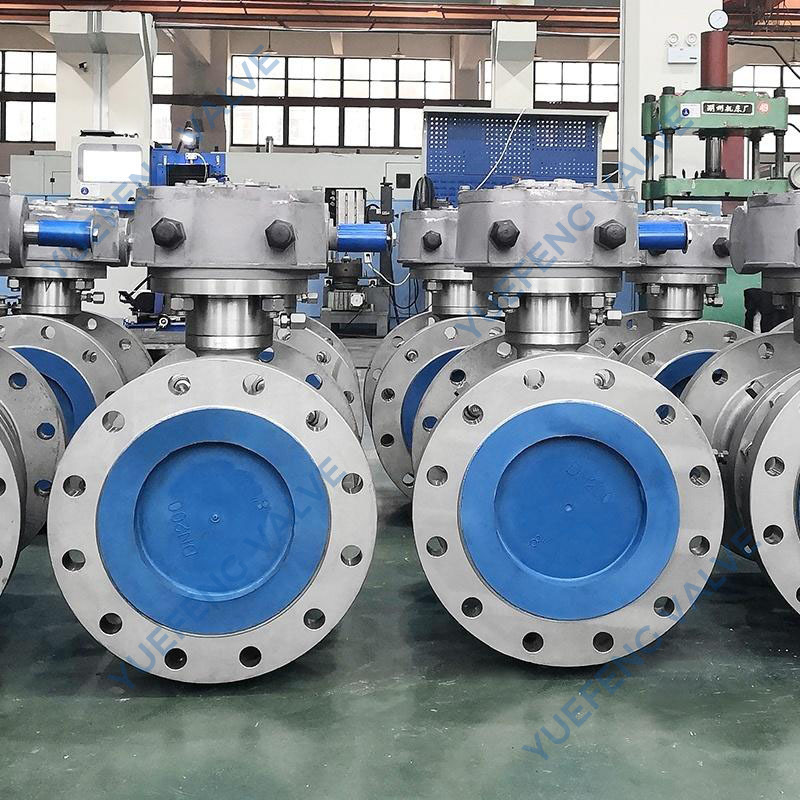

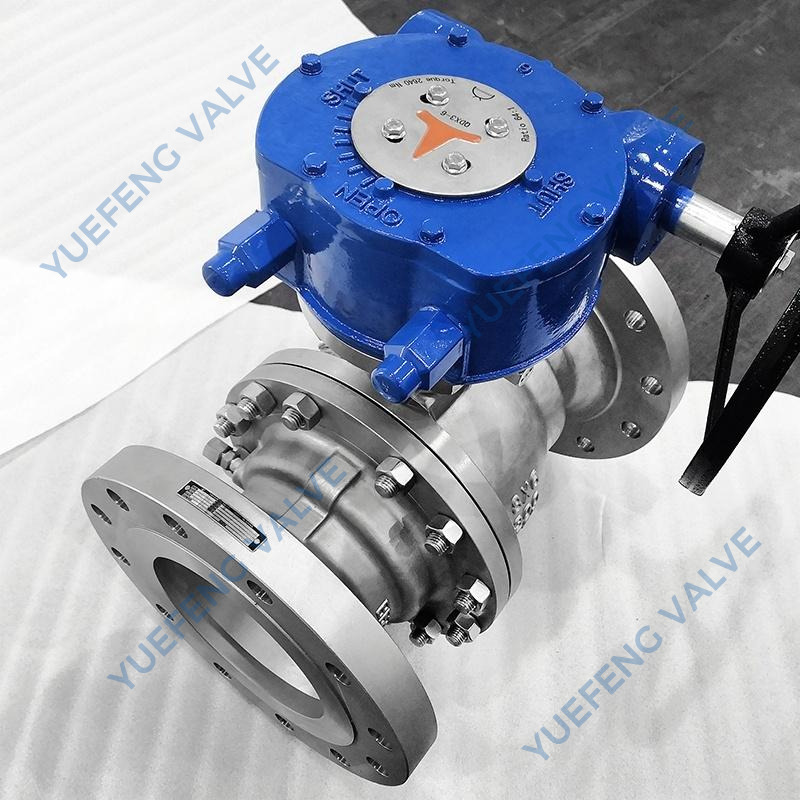

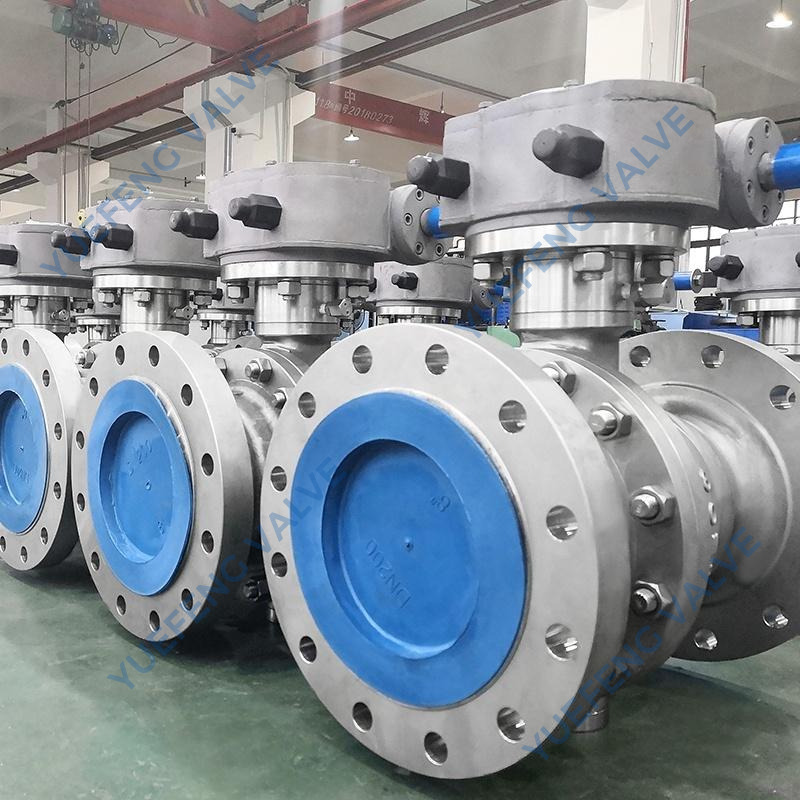

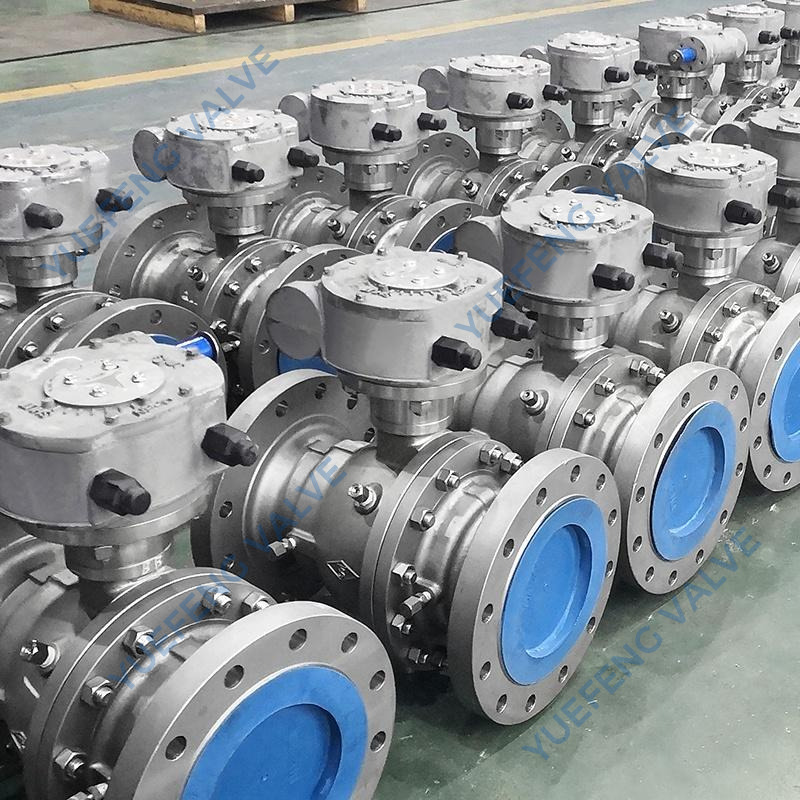

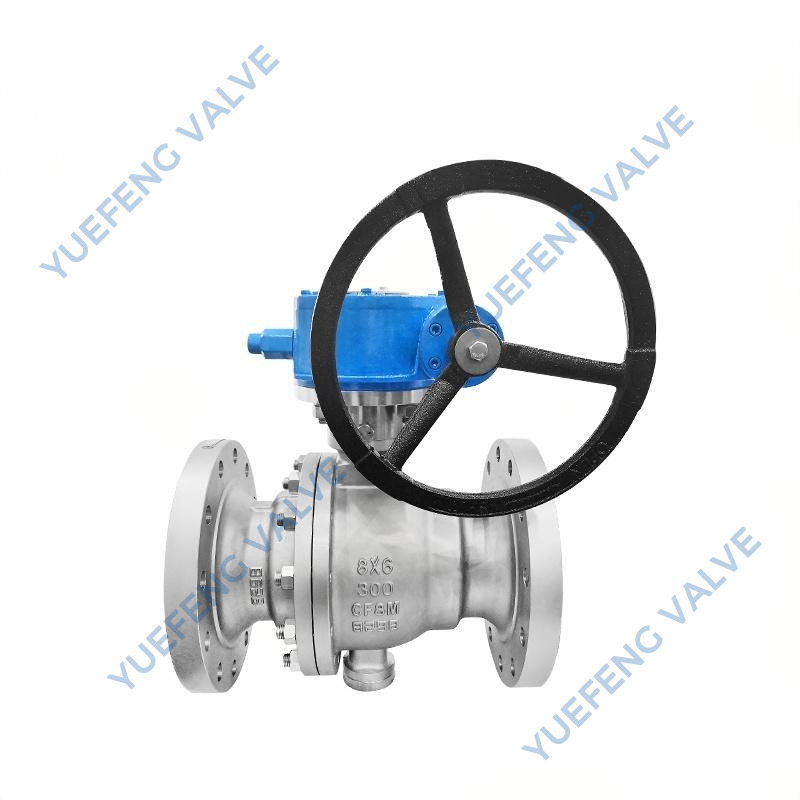

As a premier manufacturer and dedicated supplier of industrial fluid control solutions, we present the Reduced Bore Trunnion Mounted Stainless Steel Ball Valve. Engineered specifically for volume procurement and integration into heavy-duty pipeline networks, this valve perfectly balances structural resilience with spatial efficiency.
Optimized reduced bore geometry for significant weight and space reduction.
Trunnion mounted architecture ensuring stable, low-torque operation under high pressure.
Premium stainless steel construction designed for severe, corrosive environments.
Fully compliant with stringent API and ASME international engineering standards.
When managing critical pipeline infrastructures, engineers require components that deliver unwavering reliability alongside operational efficiency. This trunnion-mounted ball valve is meticulously crafted from high-grade forged and cast stainless steel, presenting a robust, metallic finish that visually communicates its exceptional machining precision. The tactile smoothness of the operating lever or gear mechanism reflects the internal mechanical harmony, where the trunnion design firmly anchors the ball to absorb line pressure, drastically reducing the required operating torque. By utilizing a reduced bore configuration, the valve deliberately minimizes its physical footprint and overall mass without compromising the integrity of the fluid system. This strategic design choice relieves excessive stress on pipeline supports and simplifies the installation process during large-scale facility upgrades. Designed to endure the harshest industrial climates, from salt-laden offshore platforms to aggressive chemical processing plants, the heavy-duty stainless steel body resists stress corrosion cracking and pitting. Furthermore, the precise seating mechanisms ensure a tight, reliable seal, translating to lower maintenance frequencies, minimized fluid turbulence, and enhanced operational uptime for your most critical fluid networks.
| Parameter | Specification |
|---|---|
| Product Name | Reduced Bore Trunnion Mounted Ball Valve |
| Body Material | Stainless Steel / Forged Stainless Steel / Duplex SS (ASTM A351 CF8/CF8M/CF3/CF3M, F304/F316, Duplex SS, etc.) |
| Size Range | NPS 2" - 48" |
| Pressure Rating | Class 150LB - 2500LB |
| Design Standard | API 6D, ASME B16.34, ISO 14313 |
| Bore Type | Reduced Bore / RB |
| End Connection | Flanged (RF, RTJ), Butt Weld (BW) |
| Face to Face | ASME B16.10 |
| Fire Safe Standard | API 607, API 6FA |
| Testing Standard | API 598, API 6D |
| Seat Material | PTFE, RPTFE, PEEK, Nylon or Metal to Metal |
| Operation | Lever, Gear, Pneumatic, Electric |
Achieving operational excellence in fluid management requires valves that go beyond basic functionality. Our valves are engineered to provide distinct advantages that directly enhance system longevity, improve safety, and reduce overhead costs for large-scale operations.
Torque Optimization: The trunnion-mounted architecture absorbs pressure thrust, ensuring the valve operates smoothly even under maximum differential pressure, which reduces the need for oversized, expensive actuators.
Space and Weight Conservation: The reduced bore profile cuts down unnecessary metal mass, making handling easier and significantly lowering the structural support requirements of your piping infrastructure.
Fugitive Emission Control: Precision-machined stem seals and tight-tolerance components work in unison to prevent hazardous leaks, protecting both facility personnel and the surrounding environment.
Seamless Actuator Integration: Standardized top mounting pads allow for rapid integration with pneumatic or electric actuators, facilitating automated control in modern, smart facilities.
The structural foundation of this valve is built for maximum stability and spatial economy, addressing the physical constraints often found in complex piping networks.
The trunnion-mounted configuration significantly lowers operational torque, ensuring smooth actuation in demanding high-pressure environments.
The reduced bore geometry actively decreases the overall volume and weight of the valve body.
This streamlined design minimizes pipeline load-bearing requirements and saves valuable installation space in tight facility layouts.
Material selection is critical for longevity in aggressive environments. We utilize top-tier alloys to ensure lasting performance and structural integrity.
Constructed from premium grades of stainless steel, including CF8M, 316L, and advanced Duplex SS.
The metallic composition exhibits exceptional resistance to severe corrosion, pitting, and stress-corrosion cracking.
Purpose-built for harsh applications such as chemical processing, offshore drilling platforms, and high-salt-spray coastal environments.
Risk mitigation is paramount in hazardous fluid networks. This valve is certified to meet the most stringent global safety protocols to protect your infrastructure.
Strict adherence to API 6D and ASME B16.34 international design standards guarantees engineering reliability.
Standardized with API 607 and API 6FA Fire Safe certifications, ensuring the valve maintains its integrity during emergency fire situations.
Features integrated anti-static devices and a blow-out proof stem design to guarantee operational safety in high-risk, volatile pipelines.
Long-term operational continuity relies heavily on dependable sealing technologies and accessible, on-site maintenance features.
Equipped with Double Block and Bleed (DBB/DIB) capabilities, allowing for safe, online pressure relief and cavity draining.
Integrated with emergency sealant injection systems for both the seat and the stem to quickly address unexpected micro-leaks.
Utilizes high-performance polymer seats that ensure a strict zero-leakage standard over extended, rigorous life cycles.
Exceptional adaptability across diverse industrial sectors makes this valve a versatile and highly sought-after asset for complex engineering projects.
Flawlessly adapts to a wide range of medium and high-pressure fluid systems without performance degradation.
Extensively utilized in critical oil and gas pipelines, intensive chemical treatments, and large-scale seawater desalination plants.
Fully customizable with extended bonnets and stems to accommodate cryogenic applications, operating safely in temperatures dropping to -60°C and below.
Optimizing procurement budgets without sacrificing operational quality is a primary advantage of integrating this specific valve design into your systems.
Ideal for pipeline systems where minor pressure drops are acceptable and full-flow pigging capacities are not strictly required.
Reduces overall component weight by approximately 30% when compared to full-bore equivalents of the exact same size.
Significantly lowers raw material, logistics, and heavy-lifting installation costs for extensive, large-scale procurement operations.
Sourcing critical pipeline components requires a manufacturing partner capable of delivering consistent, uncompromised quality at scale. As a direct manufacturer and reliable global supplier, we streamline your procurement process while elevating your operational capabilities.
Direct Manufacturing Excellence: By tightly controlling the entire production process from raw casting to final assembly, we ensure strict quality control and eliminate unnecessary intermediary delays.
Scalable Production Capacity: Our advanced manufacturing facilities are fully equipped to handle high-volume orders, ensuring your large-scale expansion projects stay on schedule without ever compromising on precision.
Rigorous Quality Assurance: Every single valve undergoes exhaustive pressure, hydro, and leak testing in strict accordance with API 598 and API 6D before it leaves our facility, guaranteeing out-of-the-box reliability.
Custom Engineering Support: Our dedicated technical team collaborates directly with your engineers to provide tailored modifications, such as specific alloy selections or custom actuator configurations, perfectly matching your project parameters.
Streamlined Global Logistics: With optimized industrial packaging and established international routing networks, we ensure safe, timely delivery to your project sites worldwide, actively reducing your downtime and storage costs.
A reduced bore valve offers a more compact and lightweight profile, typically weighing about 30% less than its full bore counterpart. This translates directly to lower material costs, cheaper transportation, and reduced structural stress on the pipeline supports. It is the ideal, cost-effective choice for systems where a slight fluid pressure drop is acceptable and pipeline pigging is not a requirement.
Unlike floating ball valves where the line pressure forces the ball against the downstream seat to create a seal, a trunnion mounted design mechanically anchors the ball at the top and bottom. This prevents the ball from shifting, drastically reducing the friction against the seats and significantly lowering the torque required to operate the valve. This stability is crucial in high-pressure classes ranging from 150LB up to 2500LB.
Yes, they are exceptionally suited for such conditions. The valves are manufactured from premium materials such as Forged Stainless Steel, CF8M, and Duplex SS. These high-grade alloys provide outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking, making them highly reliable for offshore drilling platforms, marine applications, and desalination facilities exposed to heavy salt spray.
Our valves are rigorously tested and certified to API 607 and API 6FA Fire Safe standards. In the event of a fire that compromises the primary soft polymer seats, a secondary metal-to-metal sealing mechanism automatically engages to prevent flammable fluids from feeding the fire. Additionally, blow-out proof stems and anti-static devices are incorporated as standard features to prevent explosive hazards.
Absolutely. The valves feature a Double Block and Bleed (DBB) design, allowing for the safe draining of the body cavity while the valve remains under pressure. Furthermore, they are equipped with an emergency sealant injection system. If minor seat or stem damage occurs due to debris, specialized sealants can be injected directly into the external fittings to temporarily restore zero-leakage integrity until scheduled maintenance can be performed.
