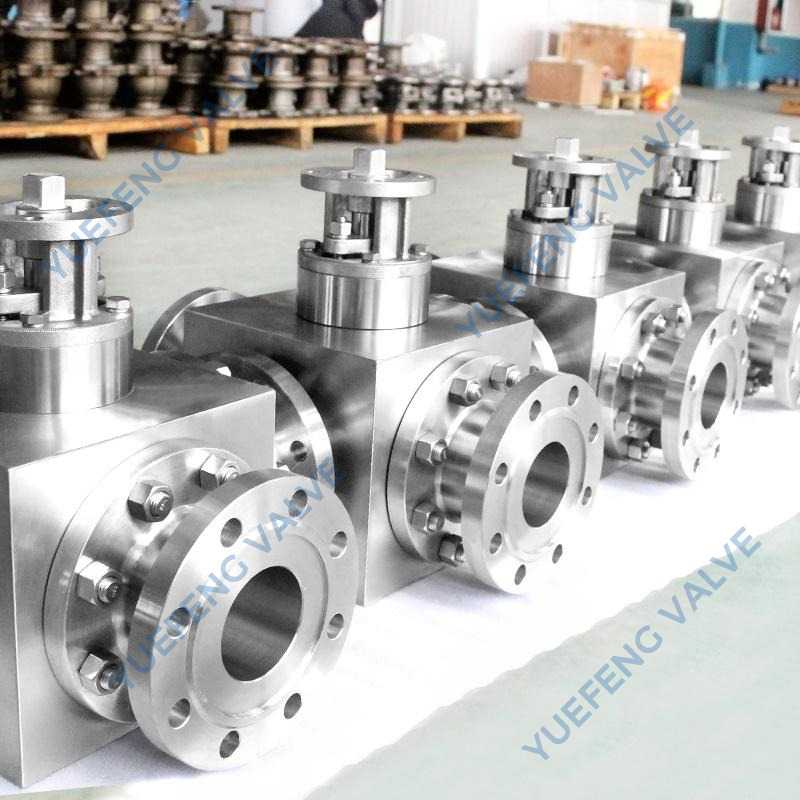

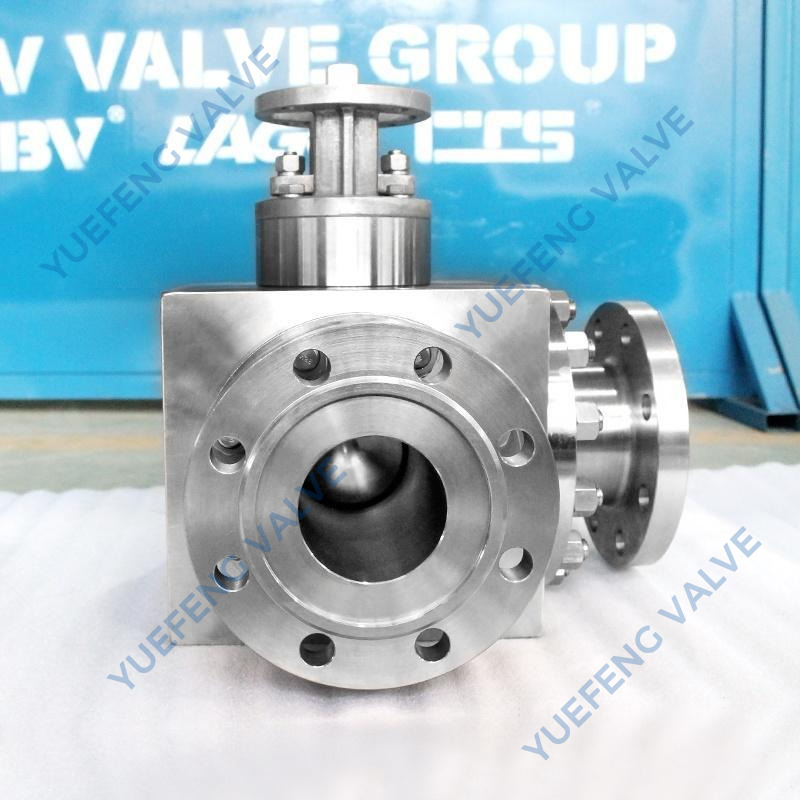

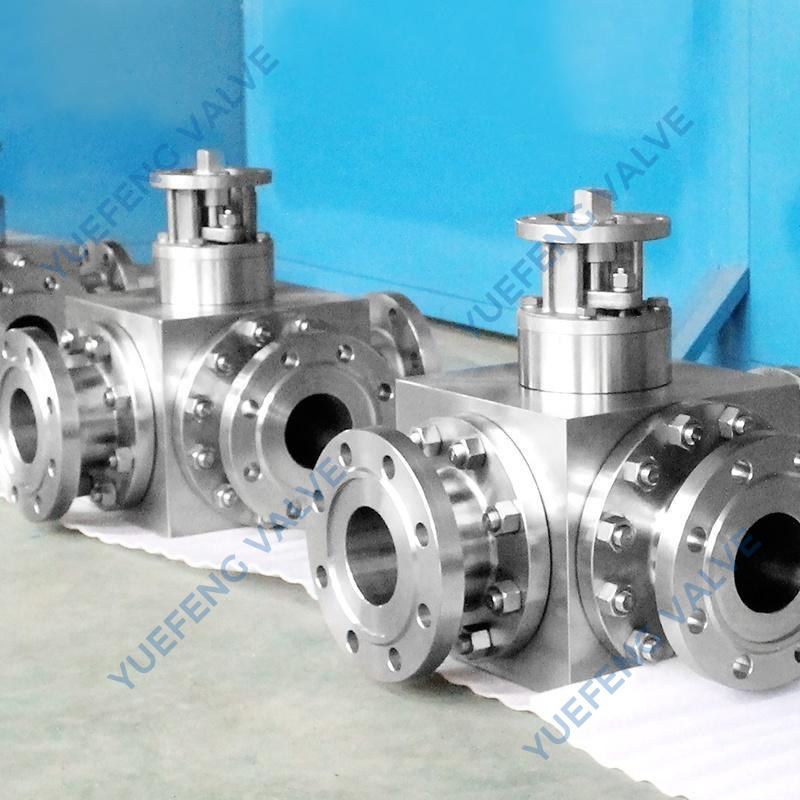

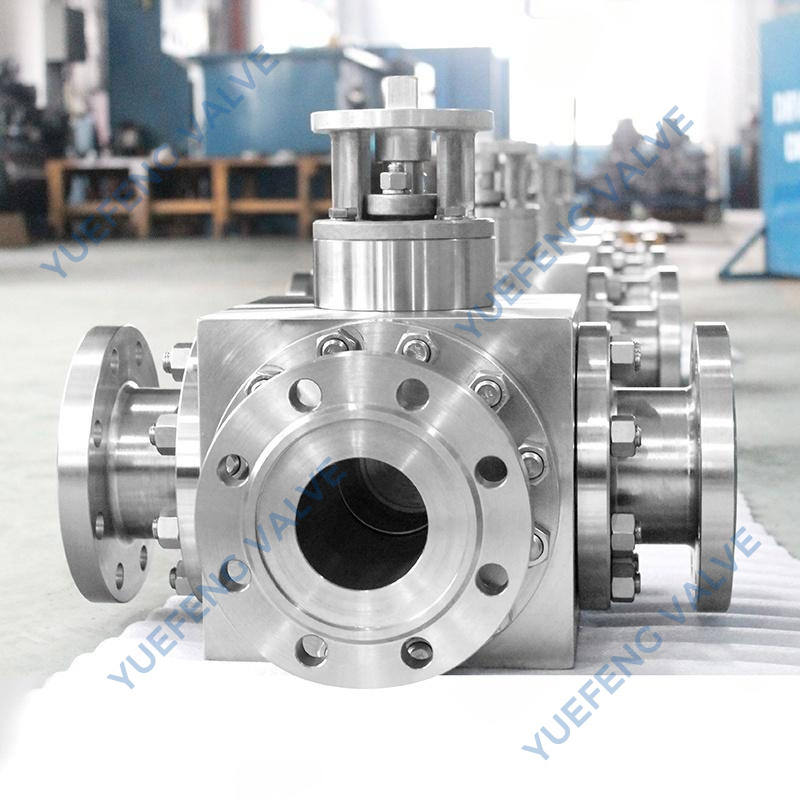

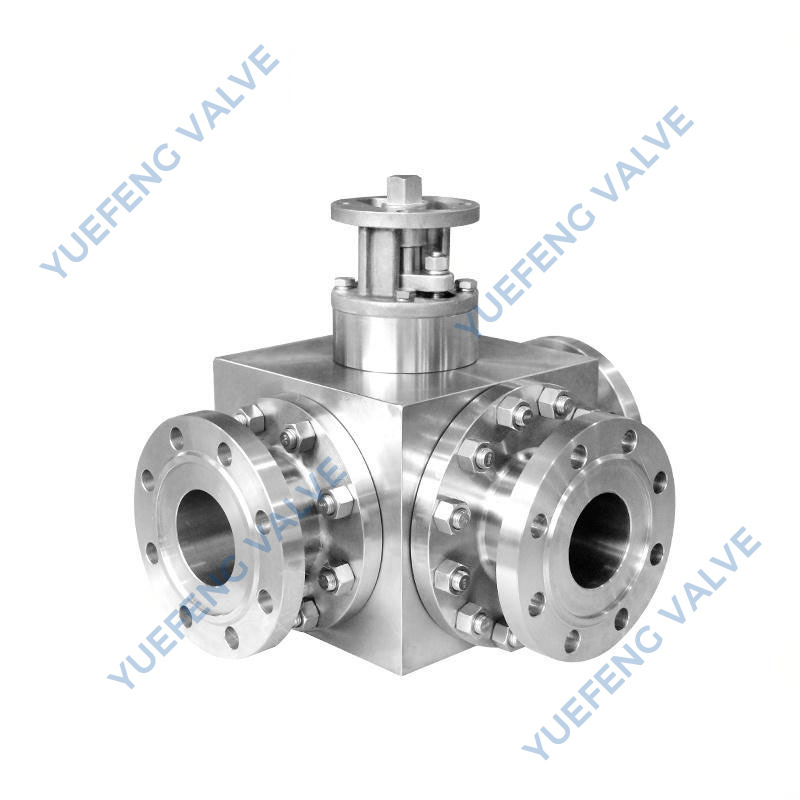

The Stainless Steel Flanged 3-Way Ball Valve represents a foundational component for fluid routing engineering, purposefully designed to divert, mix, or isolate aggressive media within demanding pipeline infrastructures. When handling the robust heft of this directional valve, the precision-cast stainless steel body conveys immediate structural integrity, featuring a smooth, unblemished metallic finish that speaks to its premium metallurgical composition. The satisfying, firm resistance felt when turning the manual lever confirms the tight tolerance of the internal seating, ensuring a bubble-tight seal that eliminates hazardous fugitive emissions. By integrating this multi-directional flow control unit into your facility, you eliminate the need for cumbersome multi-valve configurations, drastically reducing the spatial footprint and minimizing potential leak points across the network. The heavy-duty ANSI B16.5 flanged ends offer a solid, flush fit against connecting pipes, emitting a resonant, metallic clink upon installation that assures pipeline engineers of a secure, vibration-resistant joint without the need for specialized adapters. Whether managing volatile petrochemicals, caustic processing fluids, pharmaceutical fluid handling, or sterile water systems, this valve fundamentally improves operational flow dynamics, reduces maintenance downtime, and safeguards your continuous production cycles against unexpected pressure drops or corrosive degradation. Flexible T-Port and L-Port configurations enable precise media control, replacing complex setups with a single efficient unit.
Parameter | Specification |
|---|---|
Product Name | Stainless Steel Flanged 3-Way Ball Valve |
Body Material | Stainless Steel (316SS / CF8M) |
Ball & Stem Material | Stainless Steel 316 |
Seat Material | PTFE / RPTFE / TFM |
Port Configuration | T-Port (Mixing) or L-Port (Diverting), Full Port |
Connection Type | Flanged Ends (ANSI B16.5 Class 150 / Class 300) |
Size Range | 1/2" to 8" (Standard sizes available) |
Working Pressure | Class 150 (Max 275 PSI) / 200 PSI WOG |
Temperature Range | -20°C to 200°C (-4°F to 392°F) |
Mounting Standard | ISO 5211 Direct Mounting Pad |
Operation | Manual Lever (Lockable), Actuator Ready (Pneumatic/Electric) |
Safety Features | Blow-out Proof Stem, Anti-Static Design |
Design & Test Standards | ASME B16.34, API 598, API 607 (Fire Safe) |
Upgrading your flow control architecture requires components that deliver uncompromising reliability and precise actuation. This multi-port directional valve is crafted to optimize your operational efficiency while systematically minimizing systemic vulnerabilities. By replacing multiple two-way valves with a single three-way unit, facilities can significantly cut down on installation labor and hardware expenditure.
Streamlined Architecture: Consolidates complex piping layouts, significantly reducing the number of required connections and mitigating the risk of potential leak paths across industrial fluid networks.
Exceptional Wear Resistance: The precision-machined internal ball maintains a flawless spherical contour, minimizing friction against the premium RPTFE and TFM seating. This ensures a bubble-tight, zero-leakage seal and exceptional wear resistance even under continuous, high-cycle automated operations.
Intuitive Lever Operation: The manual handle provides immediate visual confirmation of flow direction, while the lockable mechanism prevents unauthorized or accidental actuation in critical industrial environments.
Unrestricted Flow Dynamics: The unrestricted full-port internal bore matches the pipe diameter exactly. This critical engineering detail eliminates pressure drops and maximizes flow rates for high-volume industrial processing, ensuring that system efficiency remains at its peak.
Modern industrial processing demands components that can withstand extreme environments without compromising performance. We engineered this multi-port valve to address the most critical challenges faced by fluid management professionals, ensuring seamless integration and enduring reliability across various sectors including petrochemical processing and water treatment.
Material and Corrosion Resistance: Forged from high-grade 316SS and CF8M stainless steel, the body and core exhibit outstanding resistance to corrosive attacks and abrasive wear. This robust metallurgical profile easily handles harsh chemical and petrochemical environments, ensuring long-term operational stability.
Flow Control and Port Design: Available in L-Port for precise fluid diverting and T-Port for seamless mixing. Combined with a full-port configuration, it allows unobstructed media passage, satisfying the complex multi-directional routing demands of advanced piping systems.
Automation Readiness: Featuring an integrated ISO 5211 direct mounting pad, this unit allows for rapid, bracket-free installation of pneumatic or electric actuators. This design eliminates the need for secondary couplings, significantly reducing automation upgrade costs and installation time for procurement teams.
Sealing and Safety Mechanisms: Engineered with high-performance seats, a blow-out proof stem, and an anti-static device. Fully compliant with API 607 fire-safe standards, it guarantees facility safety in volatile environments and maintains low fugitive emissions under extreme high-pressure and fluctuating temperature conditions.
Connection and Installation Standards: Strictly adhering to heavy-duty ANSI B16.5 flanged connection protocols, it ensures flush, vibration-resistant integration into existing global pipeline infrastructures without specialized adapters, thereby reducing engineering matching risks.
Operating Parameters Tolerance: Designed to endure a broad working temperature spectrum from negative twenty to two hundred degrees Celsius and high-pressure environments. The self-adjusting stem packing maintains a zero-leakage seal even amidst severe thermal and pressure cycling.
Quality Control and Testing: Every single unit undergoes rigorous pressure and seal testing prior to dispatch, strictly following API 598 or ASME B16.34 standards. This guarantees highly consistent reliability across large-volume orders, lowering future maintenance and downtime expenses.
Partnering with our manufacturing facility means securing a direct line to top-tier engineering excellence. We understand that large-scale industrial operations rely on consistent, reliable components delivered without unnecessary supply chain markups. Our direct-from-factory approach ensures you receive premium fluid control solutions at highly competitive price points, backed by comprehensive technical support and rigorous quality oversight.
Direct Manufacturer Access: Bypass intermediaries to secure aggressive pricing and direct communication with the engineering source, optimizing your procurement budget for large-scale facility upgrades.
Uncompromising Quality Assurance: Our advanced production facility utilizes precision CNC machining and strict metallurgical testing to ensure every stainless steel valve meets exacting international standards for durability and performance.
Comprehensive Technical Support: From initial sizing and port configuration selection to post-installation troubleshooting, our dedicated engineering team provides continuous guidance to ensure optimal system performance and fluid routing efficiency.
Reliable Global Fulfillment: We maintain robust inventory levels and streamlined logistics networks to ensure your high-volume orders arrive on schedule, keeping your project timelines intact and preventing costly facility downtime.
Dedicated Contact Channels: We stand ready to assist with your specific engineering requirements. Reach out directly to our technical sales team via Phone at +86-578-5581088 or Email at sales@gwvvalve.com for immediate support and customized flow control solutions.
To assist your engineering and procurement teams in making informed decisions, we have compiled detailed answers to the most common technical inquiries regarding our multi-directional fluid control solutions and stainless steel flanged 3-way ball valves.
Question: What is the primary difference between the L-Port and T-Port configurations in this fluid routing valve?
Answer: The L-Port design is primarily utilized for diverting flow from one common inlet to one of two separate outlets, effectively acting as a directional switch. Conversely, the T-Port configuration allows for fluid mixing from two inlets into a single outlet, or splitting one inlet into two simultaneous outlets, offering greater routing versatility for complex industrial processes.
Question: Can this stainless steel 3-way valve be retrofitted with an automated actuator post-installation?
Answer: Yes. The inclusion of the ISO 5211 direct mounting pad allows for the seamless addition of either pneumatic or electric actuators. This standardized interface eliminates the need for custom mounting brackets, making future automation upgrades straightforward, perfectly aligned, and highly cost-effective for facility managers.
Question: How does the anti-static design enhance operational safety in petrochemical applications?
Answer: In high-velocity fluid systems, friction between the internal ball, the PTFE seats, and the fluid can generate static electricity. Our anti-static mechanism utilizes a spring-loaded pin that maintains continuous metallic contact between the ball, stem, and valve body, safely grounding any static charge and preventing potential sparks in flammable or explosive environments.
Question: What maintenance is required for the high-cycle RPTFE and TFM seating?
Answer: RPTFE and TFM are highly durable, self-lubricating materials designed for extended lifecycle performance. Routine maintenance generally involves periodic visual inspections and cycling the valve to prevent media buildup. The self-adjusting stem packing compensates for normal wear, significantly extending the intervals between required maintenance shutdowns.
Question: Are these flanged connections compatible with international piping standards?
Answer: Absolutely. The heavy-duty flanged ends are machined strictly in accordance with ANSI B16.5 Class 150 and Class 300 specifications. This ensures a flawless, flush fit with standard North American and global piping systems utilizing the same ANSI protocols, eliminating the need for specialized adapters or modifications during installation.
