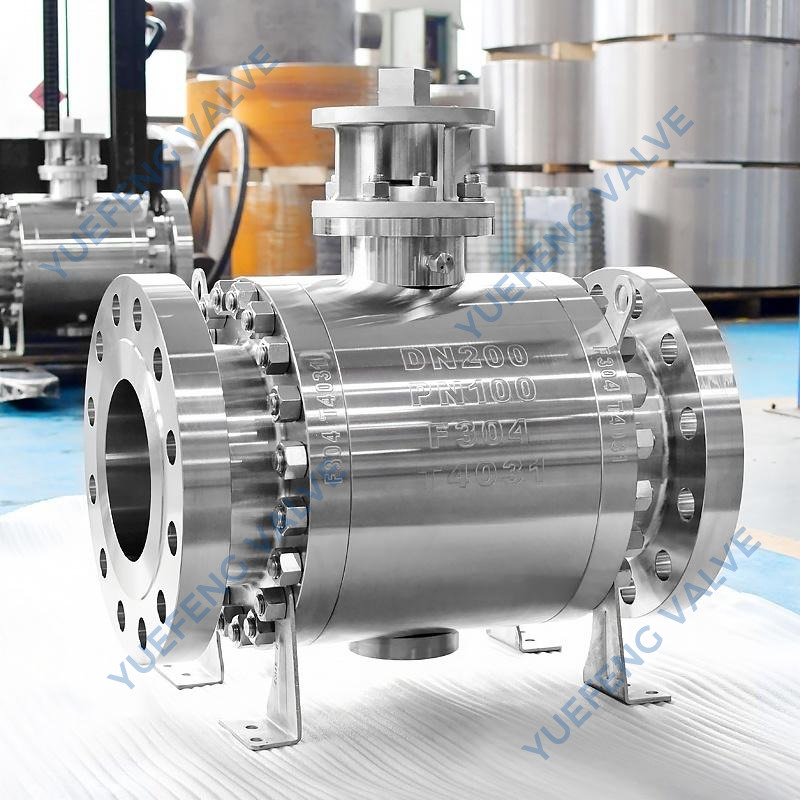

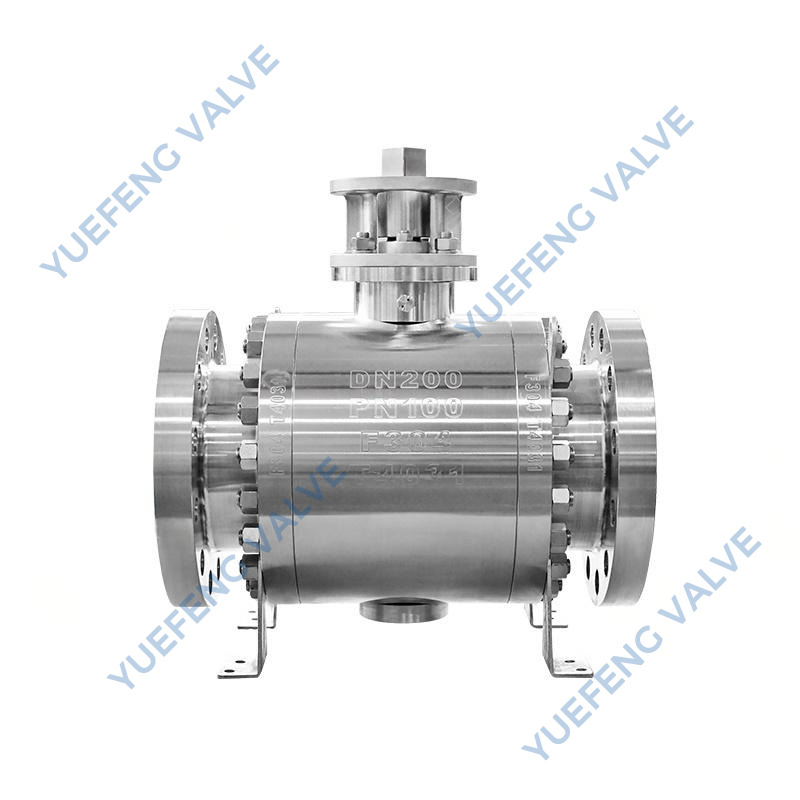

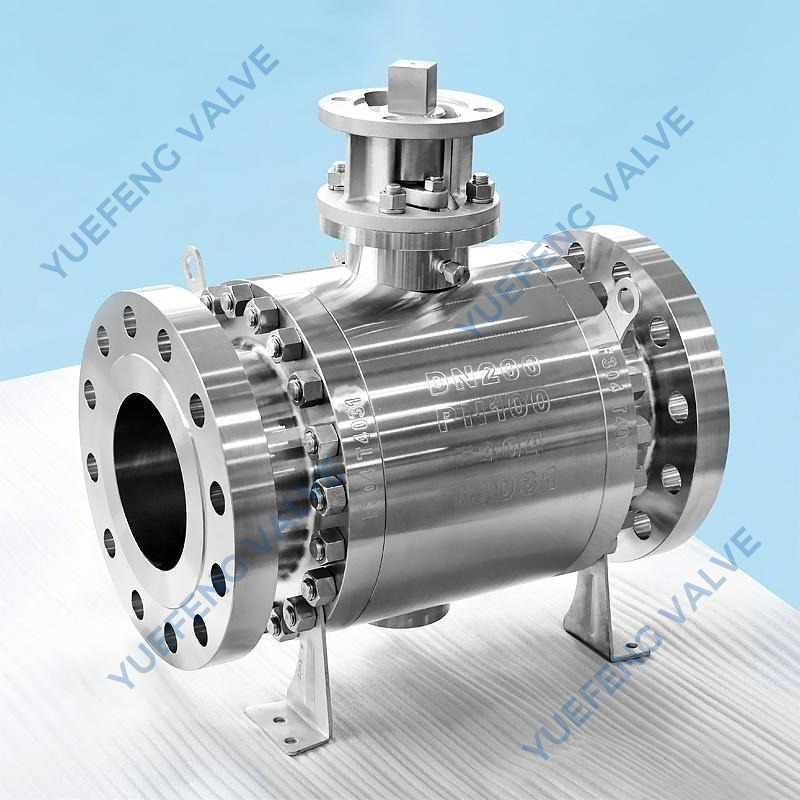

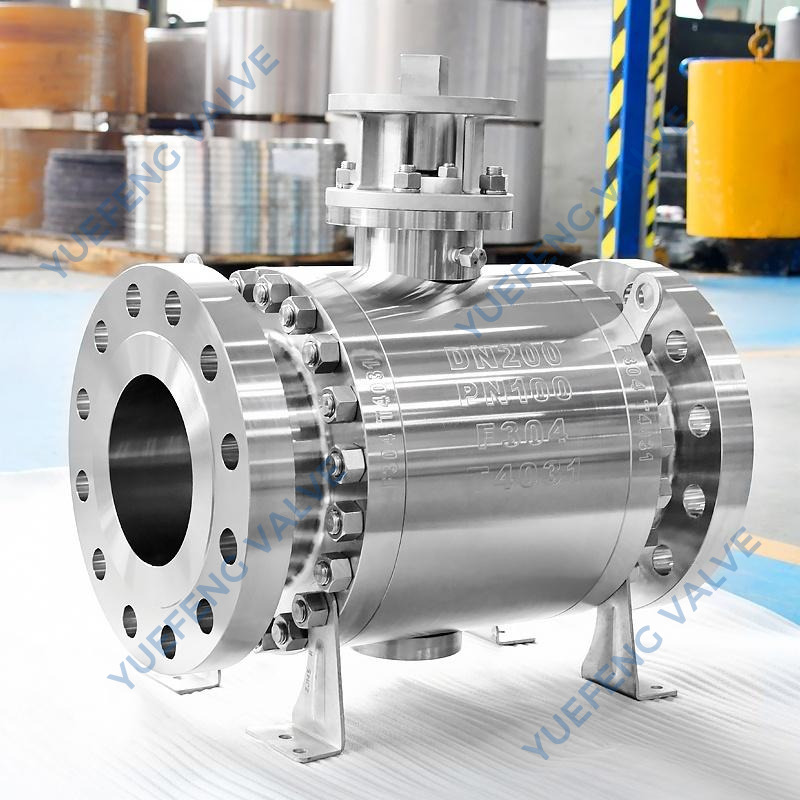

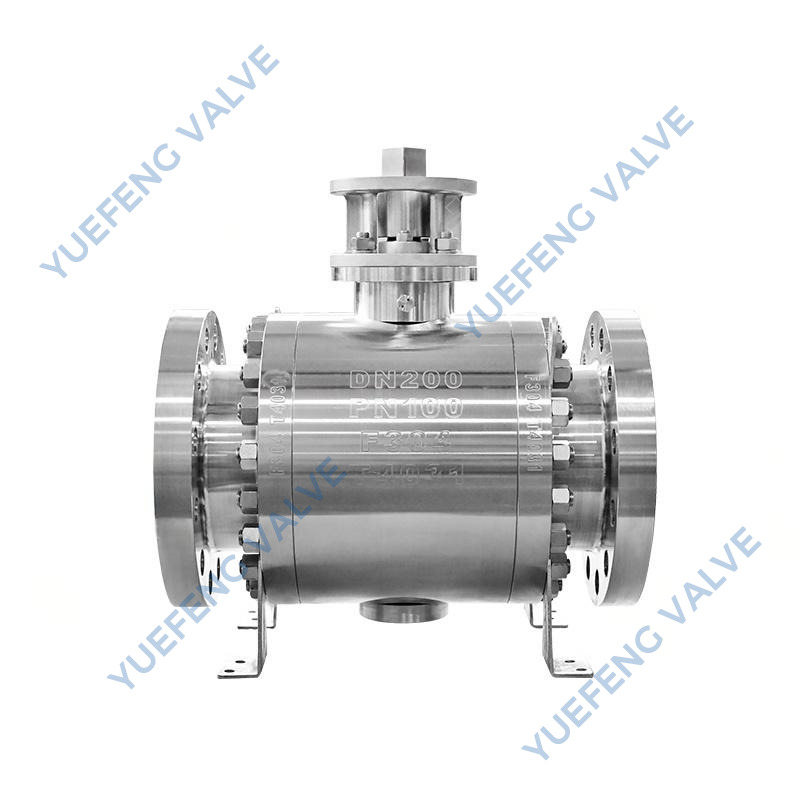

As a premier manufacturer and global supplier of industrial flow control solutions, we present the Stainless Steel Flanged Trunnion Mounted Ball Valve. Engineered for large-scale procurement and demanding pipeline networks, this valve delivers exceptional fluid management and structural reliability.
Heavy-duty trunnion mounted architecture designed for high-pressure stability.
Premium stainless steel casting and forging for ultimate corrosion resistance.
Highly customizable configurations tailored for bulk industrial project requirements.

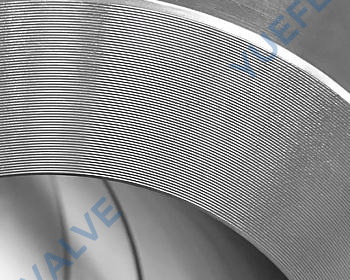

When it comes to securing critical pipeline infrastructure, the tactile precision and structural integrity of our Stainless Steel Flanged Trunnion Mounted Ball Valve stand unmatched. Running your hand along the flawlessly machined flanged connections, you can immediately sense the robust craftsmanship designed to withstand extreme operational stresses. The metallic gleam of the premium stainless steel body speaks volumes about its inherent resistance to aggressive elements, ensuring that your fluid control systems remain untainted by corrosion or wear. Operating this valve, whether manually or through automated actuators, yields a smooth, silent rotation. This frictionless movement is a direct testament to the meticulously engineered trunnion bearings that absorb massive line pressure and eliminate the jarring friction commonly found in standard floating alternatives.
By integrating this heavy-duty valve into your facility, you are fundamentally upgrading your operational reliability. The precisely calibrated internal components work in perfect harmony to prevent hazardous leaks, thereby protecting your workforce, safeguarding the surrounding environment, and preventing costly unplanned downtimes. Every curve and contour of the heavy-wall casting is purposefully designed to maintain optimal flow efficiency while offering unparalleled structural rigidity under crushing pressures. This is not merely a pipeline component; it is a long-term investment in operational excellence, ensuring that your high-capacity fluid transfer processes continue uninterrupted, day after day, under the most unforgiving industrial conditions.
| Product Name | Stainless Steel Flanged Trunnion Mounted Ball Valve |
|---|---|
| Size Range | 2" - 48" (DN50 - DN1200) |
| Pressure Rating | ANSI Class 150 - 2500 (PN16 - PN420) |
| Body Material | Stainless Steel (CF8, CF8M, CF3, CF3M, F304, F316, A182-F316, Duplex F51, etc.) |
| Ball Material | 304/316 Stainless Steel, Duplex Steel, etc. |
| Seat Material | Soft Seal (PTFE, RPTFE, PEEK, NYLON, DEVLON) or Metal Hard Seal |
| Connection | Flanged (RF, RTJ, FF), Butt Weld (BW) |
| Operation | Manual (Lever), Gear, Pneumatic Actuator, Electric Actuator |
| Structure | Trunnion Mounted, 2-piece/3-piece, Full Bore / Reduced Bore |
| Design Standard | API 6D, API 608, ASME B16.34, BS 5351, ISO 17292 |
| Face to Face Standard | ASME B16.10 |
| Flange Standard | ASME B16.5 |
| Test & Inspection Standard | API 598, API 6D |
| Fire Safe Standard | API 607, API 6FA |
| Applicable Medium | Water, Oil, Gas, and Corrosive Media |
Elevate your pipeline efficiency with a valve engineered to conquer the most demanding industrial challenges. Our engineering team has prioritized both operational safety and long-term durability, ensuring that every unit performs flawlessly under extreme stress. By minimizing maintenance requirements and maximizing flow control precision, this valve directly contributes to a healthier bottom line for your large-scale projects.
Optimized Flow Dynamics: The meticulously machined internal bore, available in both full and reduced configurations, minimizes turbulence and pressure drops, ensuring your pumping systems operate at peak energy efficiency.
Effortless Operation: Advanced trunnion bearing technology absorbs the immense thrust generated by high-pressure media, drastically reducing the physical effort or actuator power required to cycle the valve.
Versatile Integration: With standardized flange and butt-weld connection options, your installation crews can achieve rapid, secure integration into existing pipeline architectures without the need for complex modifications.
Environmental Resilience: The cold, hard touch of the premium stainless steel exterior is your first line of defense against harsh external environments, preventing surface degradation and maintaining structural integrity over decades of exposure.
The architectural foundation of this valve revolves around its advanced trunnion mounted design, a structural masterpiece built for high-stress environments. By securing the ball with upper and lower trunnion shafts, the design effectively neutralizes the immense thrust generated by high-pressure media. This translates directly to a smoother, lower-torque operation that reduces wear on internal components and lowers actuator sizing requirements.
Trunnion Support System: Engineered to absorb heavy line pressure, preventing the ball from being forced against the downstream seat, which dramatically extends the lifespan of the sealing components.
Modular Body Construction: Available in precisely forged or cast two-piece and three-piece split body designs, allowing for straightforward maintenance and inspection without removing the entire unit from the pipeline.
Double Block and Bleed (DBB): Standardized DBB functionality allows operators to isolate pressure on both sides of the valve simultaneously, enabling safe bleeding of the cavity for maintenance or integrity verification.
Blowout-Proof Stem: The internally loaded stem design guarantees that the stem will not be ejected by internal pressure surges, providing a critical layer of safety for your operational personnel.
True industrial reliability begins with uncompromising material selection. The heavy, solid feel of the valve body is a direct result of utilizing top-tier stainless steel alloys, meticulously chosen for their exceptional resistance to chemical attack and mechanical degradation. This robust material profile ensures that your fluid handling systems can process highly corrosive media without succumbing to premature failure.
Premium Alloy Selection: Constructed from high-grade materials including CF8M, 316 stainless steel, and advanced Duplex alloys, offering unparalleled defense against pitting and crevice corrosion.
Harsh Environment Mastery: Specifically formulated to thrive in the most unforgiving atmospheres, from salt-laden offshore platforms to highly acidic chemical processing plants.
Extended Lifecycle: The inherent toughness of the stainless steel matrix drastically reduces the frequency of replacements, lowering your long-term capital expenditure and minimizing disruptive maintenance shutdowns.
Wear-Resistant Internals: The highly polished surface of the stainless steel ball minimizes friction against the seats, preventing galling and ensuring a consistently smooth operation over thousands of cycles.
A valve's ultimate purpose is to provide absolute containment, and our sealing architecture is engineered to deliver zero-leakage performance. By utilizing spring-loaded seats that maintain constant contact with the ball, the valve ensures a tight seal even in low-pressure scenarios. This meticulous approach to fluid isolation protects your valuable media and prevents hazardous environmental contamination.
Dynamic Seat Technology: Spring-energized seats automatically adjust to pressure fluctuations and temperature variations, maintaining a flawless, bubble-tight seal across all operational phases.
Advanced Material Options: Choose from resilient soft seals like PTFE, PEEK, and Devlon for standard applications, or opt for precision-lapped metal-to-metal hard seals for abrasive media and extreme temperatures.
DPE and SPE Configurations: Available with Double Piston Effect (DPE) or Single Piston Effect (SPE) seat designs, providing customizable cavity pressure relief and redundant sealing capabilities tailored to your specific pipeline safety protocols.
Emergency Sealant Injection: Strategically integrated injection fittings allow maintenance teams to instantly restore sealing integrity in the event of unexpected seat damage, preventing catastrophic leaks until scheduled maintenance can occur.
In high-stakes industrial environments, safety is not optional—it is the foundational requirement. This valve is engineered to not only meet but exceed the most stringent global safety standards, providing facility managers and procurement directors with absolute peace of mind. Every unit is a testament to rigorous engineering discipline, designed to mitigate catastrophic risks in volatile applications.
Global Standard Adherence: Manufactured in strict accordance with elite international protocols, including API 6D and ASME B16.34, ensuring seamless compliance for your global infrastructure projects.
Certified Fire-Safe Design: Engineered to API 607 and API 6FA standards, featuring secondary metal-to-metal seals that prevent hazardous fluid escape even if primary soft seals are destroyed in a facility fire.
Anti-Static Mechanism: Built-in grounding devices guarantee continuous electrical continuity between the ball, stem, and body, safely dissipating static buildup to prevent ignition in highly flammable environments.
Sour Service Readiness: Fully compliant with NACE MR0175 standards, utilizing specialized metallurgical treatments to resist sulfide stress cracking when handling lethal hydrogen sulfide (H2S) media.
Modern industrial facilities demand intelligent, responsive fluid control networks. This valve serves as the perfect mechanical foundation for your automated systems, designed to integrate effortlessly with a wide spectrum of control technologies. The inherently low operating torque of the trunnion design means you can achieve rapid, precise actuation using smaller, more energy-efficient control units.
Standardized Mounting: Features a universally recognized ISO 5211 top flange, allowing for the rapid, direct mounting of actuators without the need for custom-fabricated brackets or adapters.
Versatile Drive Compatibility: Seamlessly accommodates manual gear operators for precise human control, or pairs perfectly with heavy-duty pneumatic, hydraulic, and electric actuators for fully automated processes.
Economical Automation: The friction-reducing trunnion bearings significantly lower the required breakaway torque, allowing your engineering teams to specify smaller, more cost-effective actuators, reducing overall project expenditure.
Remote System Integration: Designed to function flawlessly within complex SCADA and distributed control systems (DCS), enabling real-time monitoring and instantaneous pipeline adjustments from centralized control rooms.
Scale and versatility are critical for massive industrial deployments. Whether you are managing the high-pressure extraction of raw hydrocarbons or overseeing the delicate purification processes in a municipal water treatment facility, this valve adapts to your specific operational realities. Its massive size range and pressure handling capabilities make it a universal solution for diverse heavy-industry sectors.
Massive Size Availability: Ranging from a compact 2 inches up to a colossal 48 inches (DN50 - DN1200), providing standardized control solutions across your entire plant's piping network, from auxiliary lines to main transmission arteries.
Extreme Pressure Tolerance: Engineered to handle the crushing forces of ANSI Class 150 through 2500 (PN16 - PN420), making it ideal for high-pressure injection, transmission, and processing applications.
Energy Sector Dominance: The preferred choice for critical isolation duties in oil and gas production, long-distance pipeline transmission, and complex refinery operations.
Cross-Industry Reliability: Equally proficient in demanding chemical processing plants, high-temperature power generation stations, and heavy-duty pulp and paper manufacturing facilities.
We recognize that pipeline component failure is not an option for your operations. Therefore, our manufacturing process is governed by an obsessive commitment to quality assurance. From the moment the raw steel is poured to the final coat of industrial paint, every valve undergoes a battery of punishing tests to ensure it will perform flawlessly upon installation. As a trusted supplier, we stand firmly behind our engineering.
Rigorous Factory Testing: Every single unit is subjected to 100% hydrostatic and pneumatic pressure testing in strict accordance with API 598 and API 6D standards, guaranteeing zero-defect delivery.
Complete Traceability: We provide comprehensive Material Test Reports (MTRs) and full documentation, allowing your quality assurance teams to trace every component back to its original heat lot.
International Certifications: Fully backed by essential global certifications including CE and ISO, ensuring your procurement processes meet all regulatory and internal compliance mandates.
Comprehensive Warranty Support: Backed by a robust 12 to 18-month warranty and rapid-response technical support, drastically mitigating your operational risks and minimizing total cost of ownership.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. We operate at the intersection of metallurgical science and precision engineering, delivering fluid control solutions that empower the world's most demanding industries. Our production facilities are optimized for large-scale output without ever compromising the microscopic tolerances required for high-pressure sealing.
Unmatched Manufacturing Capacity: Our state-of-the-art production floors are equipped to handle massive volume orders, ensuring that your most ambitious facility expansions are supplied on time and on budget.
Engineering Excellence: Backed by decades of specialized experience in fluid dynamics and metallurgy, our technical teams provide invaluable consultation to ensure you select the optimal valve configuration for your specific media.
Streamlined Supply Chain: As a primary source manufacturer, we eliminate unnecessary intermediaries, providing you with highly competitive pricing structures and transparent lead times for your major projects.
Dedicated Project Management: From initial technical drawing approvals to final logistics coordination, our dedicated account managers provide a seamless, stress-free procurement experience tailored to the needs of enterprise-level buyers.
In a floating design, the line pressure forces the ball against the downstream seat to create a seal, which can cause excessive friction and wear at high pressures. The trunnion mounted design secures the ball with upper and lower shafts, absorbing the pressure thrust. This prevents the ball from crushing the seat, resulting in significantly lower operating torque and a much longer lifespan for the sealing components under extreme pressures.
Absolutely. While soft seals like PTFE or Devlon are excellent for clean fluids, abrasive media requires a more robust approach. We offer precision-engineered metal-to-metal hard sealing options. In these configurations, both the ball and the seats undergo specialized surface hardening treatments, such as Tungsten Carbide or Stellite coating, ensuring they can shear through particulates without sustaining surface damage or compromising the seal.
The DBB feature is a critical safety and maintenance mechanism. It allows the valve to simultaneously seal against pressure from both the upstream and downstream ends of the pipeline. Once isolated, the operator can open the bleed valve located on the body cavity to safely drain any trapped fluid or gas. This verifies the integrity of the seats and allows for safe inline maintenance without shutting down the entire pipeline network.
Beyond utilizing premium stainless steel alloys like CF8M or Duplex steel, which possess inherent resistance to oxidation and chemical attack, our valves undergo rigorous surface preparation. The investment casting and forging processes are tightly controlled to eliminate porosity. The high-density molecular structure of the stainless steel provides a formidable barrier against harsh external environments, such as offshore salt spray or industrial chemical atmospheres.
We understand that stringent record-keeping is vital for your facility's compliance. Every shipment is accompanied by a comprehensive documentation package. This includes EN 10204 3.1 Material Test Reports (MTRs) for chemical and mechanical traceability, API 598 and API 6D pressure test certificates, and relevant compliance declarations such as Fire-Safe and NACE MR0175 certificates, ensuring your engineering teams have complete verifiable data.
