When managing high-pressure or corrosive fluid systems, the absolute integrity of your pipeline depends entirely on the reliability of your isolation components. Our Stainless Steel Floating Ball Valve is meticulously engineered to provide definitive shut-off capabilities, ensuring that your facility operates without the constant threat of hazardous leaks or unexpected, costly downtime. The solid, cold-to-the-touch stainless steel exterior speaks to its robust metallurgical composition, designed to withstand harsh external environments. Internally, the spherical closure unit is polished to a flawless, mirror-like finish. This ultra-smooth surface minimizes friction against the seating material, resulting in a remarkably low operating torque and a fluid, silent transition from fully open to fully closed. By eliminating the grinding resistance common in lesser valves, this component significantly reduces wear on both the internal seals and any attached actuation hardware.
Beyond its tactile and mechanical superiority, this valve serves as a definitive solution for facilities struggling with frequent maintenance cycles and fluid loss. The intelligent floating ball design utilizes the upstream line pressure to press the ball firmly against the downstream seat, creating a dynamic seal that becomes progressively tighter as system pressure increases. This self-adjusting mechanism guarantees flawless containment of volatile gases, aggressive chemicals, or high-temperature steam. Facility managers and engineers will appreciate how this translates directly into lowered replacement costs and enhanced operational safety. Every curve and cast of the valve body is optimized to resist mechanical stress and thermal shock, ensuring that once installed, it seamlessly integrates into the background of your daily operations, quietly and efficiently protecting your most critical infrastructure.

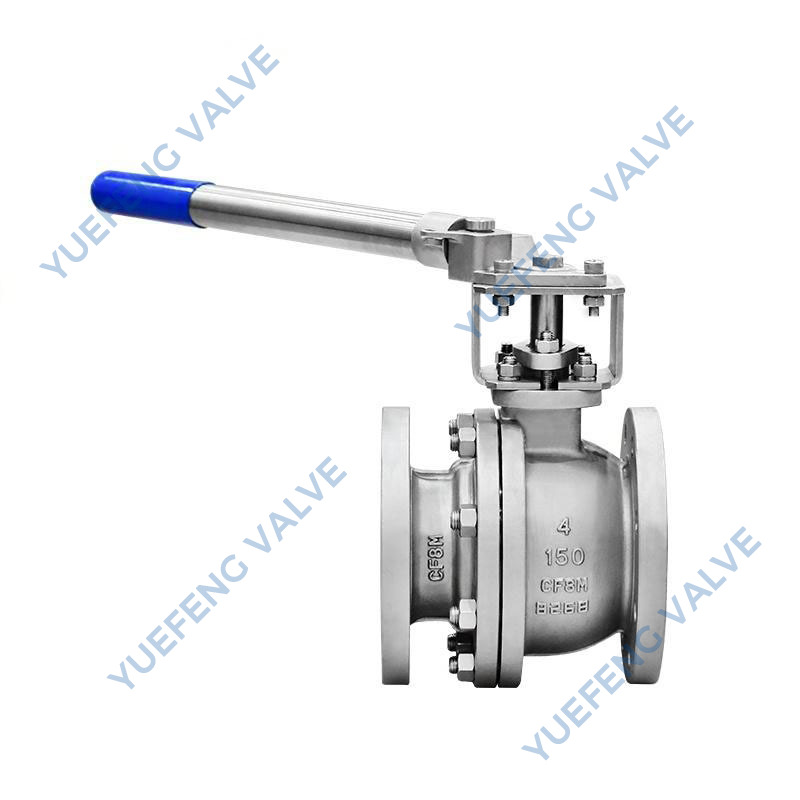

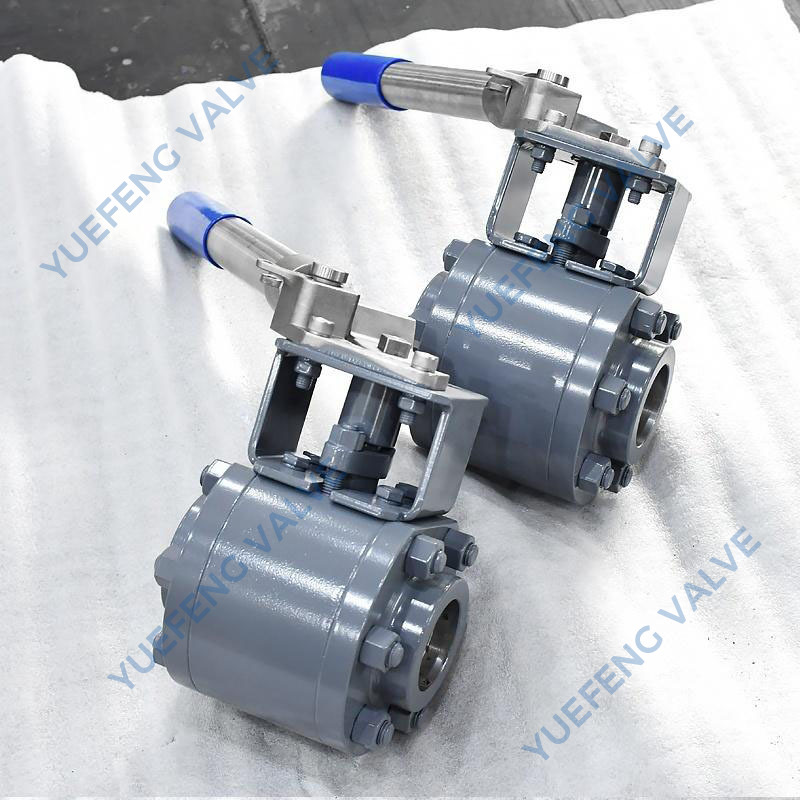

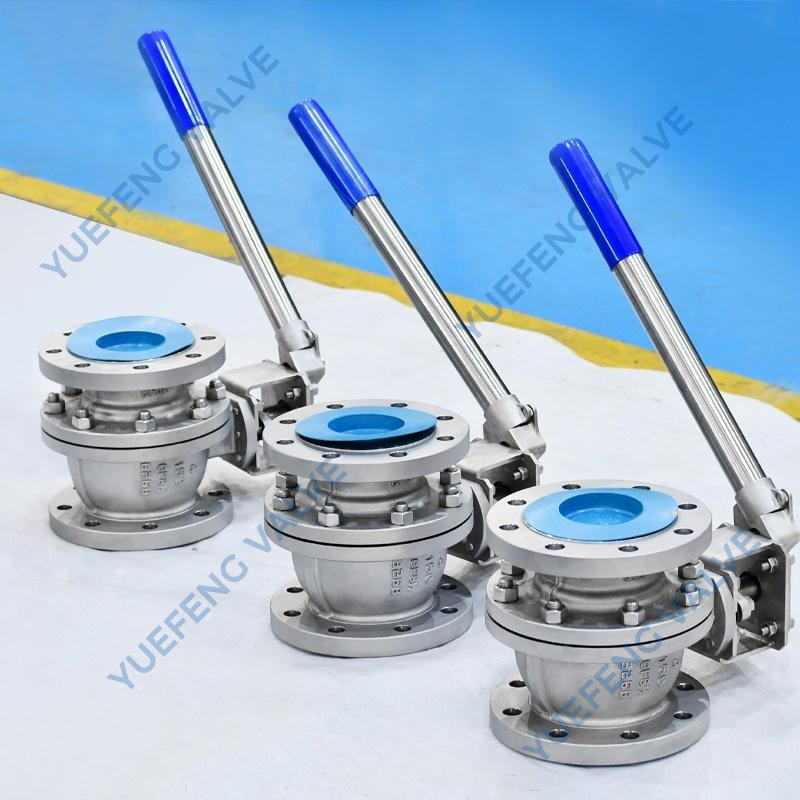

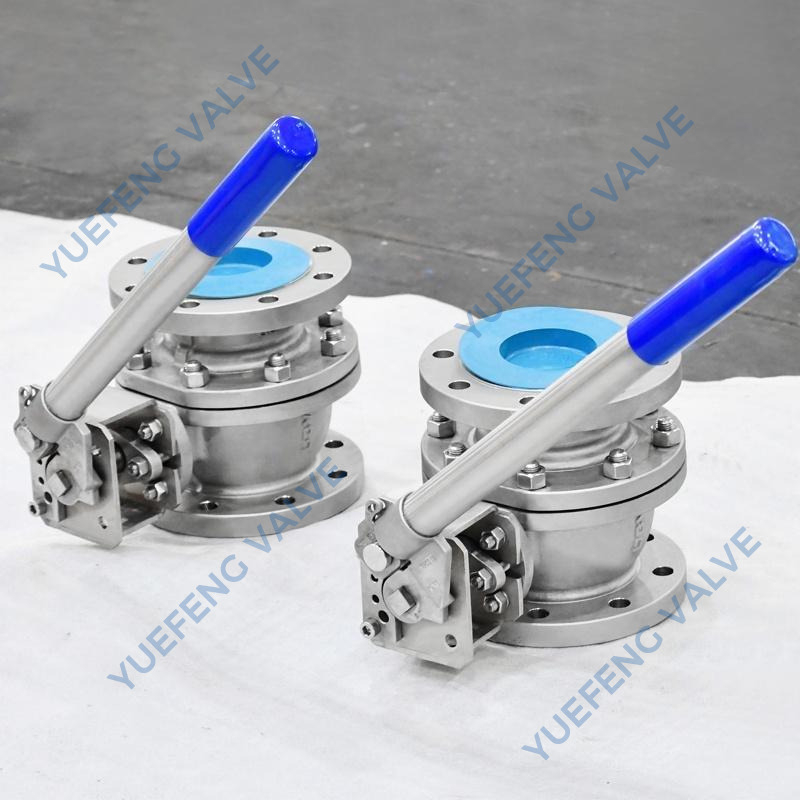

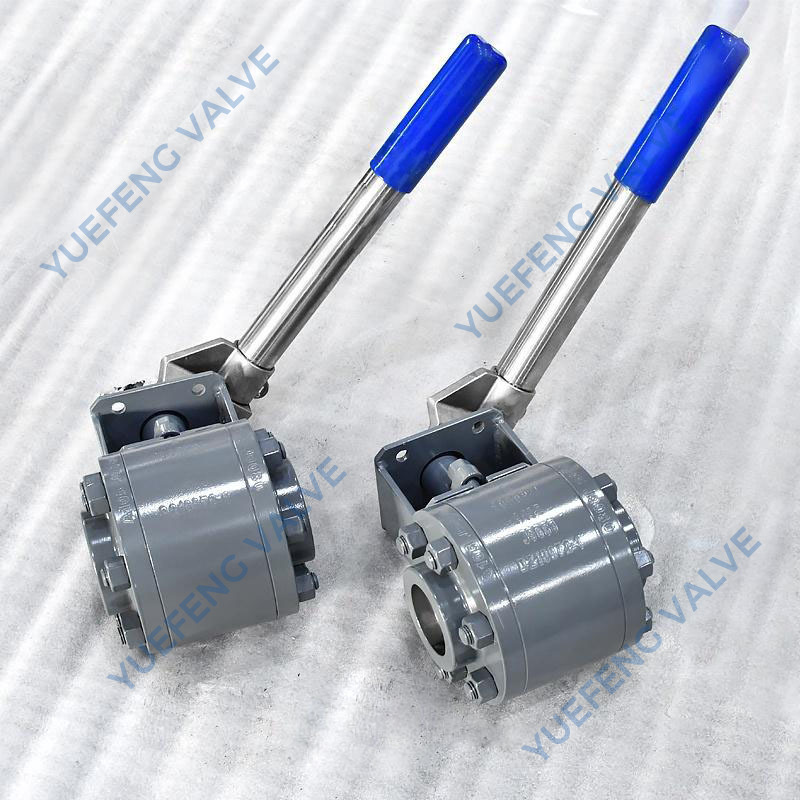

Product Name | Stainless Steel Floating Ball Valve |
|---|---|
Material | Stainless Steel (SS304, SS316, SS316L, CF8, CF8M, WCB) |
Size Range | 1/4" - 14" (DN8 - DN350) |
Nominal Pressure | ANSI Class 150 - 2500 / PN10 - PN64 / 1000 - 6000 WOG |
Applicable Temperature | -196°C to 450°C (depending on seal material) |
Connection Type | Flange, Threaded (NPT, BSPT, BSPP), Socket Weld, Butt Weld |
Driving Mode | Manual (Lever/Gear), Pneumatic Actuator, Electric Actuator |
Applicable Medium | Water, Oil, Gas, Steam, Corrosive Liquids |
Seal Material | PTFE, RPTFE, PPL, Metal-to-Metal (Hard Seal) |
Structure | 1-Piece, 2-Piece, 3-Piece Floating Ball Valve |
Design Standards | API 6D, API 608, ASME B16.34, DIN, JIS, GB |
Our floating ball valves are distinguished by their meticulous engineering and user-centric design, addressing the exact pain points encountered in complex fluid management. We focus on delivering a component that not only meets but vastly exceeds rigorous operational demands, ensuring your infrastructure remains highly productive.
Self-Relieving Seat Architecture: Automatically relieves excess cavity pressure to prevent structural damage or catastrophic failure during sudden thermal expansion of the trapped media.
Micro-Polished Sphere: The internal ball undergoes rigorous polishing to achieve a microscopic level of smoothness, drastically reducing seat wear and extending the operational lifecycle.
Investment Cast Housing: Utilizes advanced investment casting techniques to eliminate internal porosity, ensuring a dense, structurally sound body capable of withstanding severe mechanical shocks.
Vibration Resistant Tolerances: Engineered to maintain tight dimensional tolerances even in environments subjected to heavy machinery vibrations, preventing the gradual loosening of the seal over time.
Optimized Flow Path: Designed to provide minimal flow resistance when fully open, reducing pressure drops across the pipeline and improving overall pumping efficiency.
The foundation of any enduring pipeline component lies in its metallurgical integrity. Crafted from premium-grade stainless steel alloys, this valve provides an impenetrable barrier against the most aggressive industrial media, ensuring your systems remain pristine and functional over decades of continuous, demanding use.
Premium Alloy Selection: Constructed from high-grade SS304, SS316, SS316L, CF8, and CF8M, offering superior resistance to pitting, crevice corrosion, and environmental degradation.
Chemical Inertness: Perfectly suited for handling highly acidic or alkaline solutions without degrading, maintaining absolute fluid purity in sensitive chemical and pharmaceutical processing.
High-Temperature Stability: The robust metal matrix retains its tensile strength and structural shape even when exposed to extreme thermal fluctuations, preventing warping or operational binding.
Abrasion Immunity: The hardened exterior and internal components resist scoring and scratching from particulate-laden fluids, maintaining a flawless sealing surface.
Oxidation Defense: Naturally forms a passive chromium oxide layer that instantly repairs itself if scratched, preventing rust formation in damp, humid, or offshore environments.
Safety and environmental compliance dictate that fugitive emissions must be completely eradicated. This valve integrates a multi-tiered sealing architecture and critical safety mechanisms to ensure absolute zero-leakage performance, protecting both your workforce and your operational profitability.
Zero-Leakage Assurance: Precision-machined seating surfaces mate perfectly with the floating ball, completely blocking fluid passage and ensuring bubble-tight shut-off when in the closed position.
Versatile Seal Options: Available with resilient soft seals (PTFE, RPTFE, PPL) for standard use, or metal-to-metal hard seals for highly abrasive or extreme high-temperature applications.
Anti-Static Device: Built-in grounding mechanisms ensure electrical continuity between the ball, stem, and body, safely dissipating static charges to prevent ignition in flammable environments.
Fire-Safe Construction: Strictly adheres to API 607 standards, featuring a secondary metal seat that maintains a secure, functional seal even if the primary soft seat is destroyed by a facility fire.
Blow-Out Proof Stem: The internally loaded stem design guarantees that the stem will not be ejected even under extreme pressure spikes, safeguarding facility personnel from catastrophic blowouts.
Dynamic Stem Packing: Utilizes live-loaded packing systems that constantly adjust to wear and thermal cycling, preventing hazardous emissions through the valve neck.
Navigating international procurement requires components that seamlessly align with global engineering standards. Our valves are rigorously tested and certified, providing engineering teams with the absolute certainty that every unit meets the strictest regulatory and quality benchmarks worldwide.
Broad Size Spectrum: Manufacturing capabilities cover a comprehensive range from 1/4" up to 14" (DN8 - DN350), accommodating diverse pipeline architectures and flow volume requirements.
High-Pressure Tolerance: Engineered to perform flawlessly across a wide pressure gradient, easily handling systems from ANSI Class 150 to 2500, and PN10 to PN64.
API Standard Adherence: Fully compliant with API 6D and API 608 specifications, ensuring total suitability for critical petroleum, refining, and natural gas infrastructure.
International Compatibility: Designed in strict accordance with ASME B16.34, DIN, JIS, and GB standards for effortless integration into cross-border and multinational projects.
Quality Audited Production: Produced under stringent ISO9001 quality management systems and carrying CE certification, guaranteeing consistent manufacturing excellence and traceability.
No two industrial layouts are identical, which is why flexibility in installation is paramount. This product line offers an extensive array of connection types and body structures, allowing engineers to select the perfect configuration for their specific spatial limitations and functional requirements.
Multiple Connection Profiles: Choose from flanged ends for heavy-duty applications, threaded ends (NPT, BSPT, BSPP) for quick assembly, or welded ends (Socket Weld, Butt Weld) for permanent, leak-free joints.
1-Piece Body Design: Features a reduced bore with minimal leak paths, ideal for tight spaces and applications where weight reduction and compact footprint are critical.
2-Piece Body Design: The industry standard for full-port flow, offering an optimal balance between robust, high-pressure construction and ease of routine maintenance.
3-Piece Body Design: Engineered for ultimate serviceability, allowing the central valve section to be completely removed for seal replacement without disturbing the welded or threaded pipeline connections.
Space-Optimized Footprint: Compact overall dimensions ensure that the valve can be installed in dense, complex piping networks without interfering with adjacent equipment or walkways.
Modern industrial facilities rely on intelligent control systems to maximize efficiency. This valve is engineered to bridge the gap between manual reliability and advanced automation, featuring a design that minimizes physical effort while maximizing responsiveness to automated commands.
Low Torque Operation: The highly polished ball and optimized seat geometry drastically reduce the rotational force required, allowing for swift, effortless actuation and less strain on operators.
Direct Mount Pad: Comes standard with an ISO 5211 mounting platform, enabling the direct attachment of actuators without the need for cumbersome, space-consuming brackets or adapters.
Pneumatic Integration: Pairs seamlessly with pneumatic actuators for rapid, fail-safe operation in time-sensitive, high-cycle, or hazardous processing environments.
Electric Actuation Ready: Easily integrates with electric motors for precise, modulated flow control and real-time remote monitoring from central facility control rooms.
Ergonomic Manual Override: When operated manually, the heavy-duty lever or gear operator provides smooth, tactile feedback, ensuring precise positioning by field technicians.
Downtime is the hidden cost of any fluid management system. We have purposefully engineered this valve to endure relentless operational cycles while making routine inspections and part replacements as rapid and straightforward as possible, thereby protecting your operational profitability.
In-Line Repairability: The 3-piece structural variant allows maintenance crews to swing out the center body, replacing seats and seals in minutes without cutting pipes or dismantling the line.
Friction-Reducing Components: Internal thrust washers and bearings are crafted from advanced self-lubricating materials, significantly slowing the rate of mechanical wear during high-frequency cycling.
Self-Cleaning Action: The wiping motion of the ball against the seat during rotation continuously clears away debris, preventing the buildup of scale and extending the life of the seal.
Standardized Replacement Parts: Engineered with uniform internal dimensions, ensuring that replacement seals, packings, and components are readily available and easily interchangeable.
Decade-Spanning Durability: The combination of resilient metallurgy and intelligent stress-distribution ensures a service life that often outlasts the surrounding pipeline infrastructure.
True engineering excellence is demonstrated through versatility. This valve has been rigorously field-tested across a multitude of demanding sectors, proving its capability to manage everything from ultra-pure water to highly volatile petrochemicals with unwavering stability.
Oil & Gas Refineries: Safely handles the extraction, processing, and transportation of crude oil, natural gas, and refined hydrocarbons under extreme pressures.
Chemical Processing: Provides the necessary chemical inertness to manage aggressive acids, caustic sodas, and complex organic solvents without degrading or contaminating the batch.
Water & Wastewater Treatment: Effectively controls the flow of municipal water, managing sludge, abrasive slurries, and purification chemicals with high reliability.
Food & Beverage Production: Manufactured to meet strict sanitary requirements, ensuring the safe, hygienic processing of edible liquids without the risk of bacterial accumulation.
Power Generation & Steam: The high-temperature hard-seated variants effortlessly manage superheated steam and critical cooling water in demanding power plant operations.
Securing the right component often requires moving beyond off-the-shelf solutions. As a direct-from-factory supplier, we provide unparalleled flexibility in manufacturing, ensuring that your specific engineering requirements are met with precision, speed, and highly reliable logistical support.
Bespoke Engineering: Our technical team collaborates directly with your engineers to modify dimensions, materials, and pressure ratings based on custom schematics and unique operational conditions.
OEM & ODM Capabilities: We offer comprehensive private-label manufacturing and custom design services to seamlessly integrate our high-performance valves into your proprietary equipment.
Scalable Production Volume: Whether you require a single specialized prototype or thousands of units for a massive facility overhaul, our manufacturing lines adapt instantly to your scale.
Accelerated Delivery Timelines: By eliminating intermediaries, we drastically shorten lead times, ensuring that your critical project deadlines and maintenance schedules are consistently met.
Comprehensive Quality Assurance: Every single valve undergoes rigorous hydrostatic pressure testing and material analysis before dispatch, backed by a robust after-sales warranty program.
Partnering with the right manufacturer is just as critical as selecting the right product. We bring decades of metallurgical expertise and fluid dynamics engineering to the table, providing our global partners with an insurmountable competitive advantage in product quality, cost control, and supply reliability.
Direct Source Economics: By purchasing directly from the manufacturing floor, you eliminate third-party markups, securing premium industrial hardware at highly competitive price points.
State-of-the-Art Facilities: Our production lines utilize advanced CNC machining and automated testing rigs, guaranteeing microscopic precision on every component produced.
Dedicated Account Management: You are assigned a specialized technical liaison who understands your industry, ensuring seamless communication from initial inquiry to final delivery.
Unwavering Quality Control: We maintain a zero-tolerance policy for defects, with every batch subjected to strict non-destructive testing (NDT) and performance evaluations.
Global Logistics Expertise: We expertly navigate international shipping, complex customs documentation, and secure packaging, ensuring your order arrives on time and in pristine condition.
How does the floating ball mechanism differ from a trunnion-mounted design?
In a floating ball design, the internal sphere is not fixed at the bottom by a shaft. Instead, it is allowed to "float" slightly downstream under the pressure of the fluid. This upstream pressure forces the ball tightly against the downstream seat, creating a highly effective, self-adjusting seal. It is exceptionally efficient for smaller to medium-sized pipelines and lower to moderate pressure classes, offering a simpler, more cost-effective structure compared to complex trunnion valves.
Can this valve be used for throttling or precise flow regulation?
Floating ball valves are strictly designed for on/off isolation applications. Using them in a partially open position for throttling exposes the soft seating material to high-velocity fluid flow, which will quickly erode the seal and compromise the valve's ability to shut off completely. If precise flow regulation is required for your process, a control valve or globe valve is the recommended engineering choice.
What factors should determine my choice between PTFE and Metal-to-Metal seals?
The choice heavily depends on the operating temperature and the physical nature of the medium. PTFE (Teflon) and its reinforced variants (RPTFE) provide excellent bubble-tight sealing for clean fluids at temperatures generally up to 200°C. However, if your system involves highly abrasive particulates, slurries, or extreme temperatures exceeding 250°C up to 450°C, a metal-to-metal hard seal is mandatory to prevent rapid seal destruction.
How does the anti-static device function within the valve structure?
As the internal metal ball rotates against the polymeric seats, the resulting friction can generate a static electrical charge. In systems handling flammable gases or volatile petrochemicals, a static spark could be catastrophic. Our anti-static device consists of spring-loaded stainless steel plungers positioned between the stem and the ball, and the stem and the body. This creates a continuous grounding path, safely transferring any static charge directly to the pipeline ground.
What is the distinct advantage of selecting a 3-piece body structure?
The 3-piece body design is specifically engineered for facilities where maintenance speed is critical. It features a central body section held between two end caps by heavy-duty bolts. By simply removing a few bolts, the entire central section containing the ball and seats can be swung out or completely removed for servicing. This allows technicians to replace internal components without having to cut the valve out of the pipeline or disrupt the welded or threaded end connections.
Are these stainless steel valves suitable for vacuum applications?
Yes, when properly configured with the appropriate high-density seating materials and manufactured to precision-machined tolerances, our stainless steel floating ball valves can maintain a tight seal in moderate vacuum systems. The inherent design of the ball being pressed firmly against the seat ensures that ambient air is prevented from entering the pipeline, maintaining the integrity of the vacuum.
