Top-Mounted Accessibility: The bonnet is located on the top, allowing technicians to remove the ball and seats without dismantling the entire piping system.
Zero Leakage Integrity: Utilizing a high-precision seat design that ensures a bubble-tight seal in both high and low-pressure scenarios.
Integral Body Casting: The single-piece body construction eliminates the risks associated with multi-piece bolted joints, providing superior resistance to pipeline stress.
Emergency Sealant Injection: Equipped with secondary sealant injection fittings for both the stem and seat areas to handle emergency leak situations.
Versatile Mounting Pad: Built-in ISO 5211 mounting pad for easy "top-mounted" installation of electric or pneumatic actuators.
| Specification | Standard Configuration |
| Bore Type | Full Bore / Reduced Bore |
| Temperature Range | -196°C to 550°C (depending on material) |
| Seat Material | PTFE, PEEK, or Metal-to-Metal Tungsten Carbide |
| Testing Standards | API 598, ISO 5208 |
| Face-to-Face | ASME B16.10 |
| Compliance | NACE MR0175 (For Sour Gas Service) |

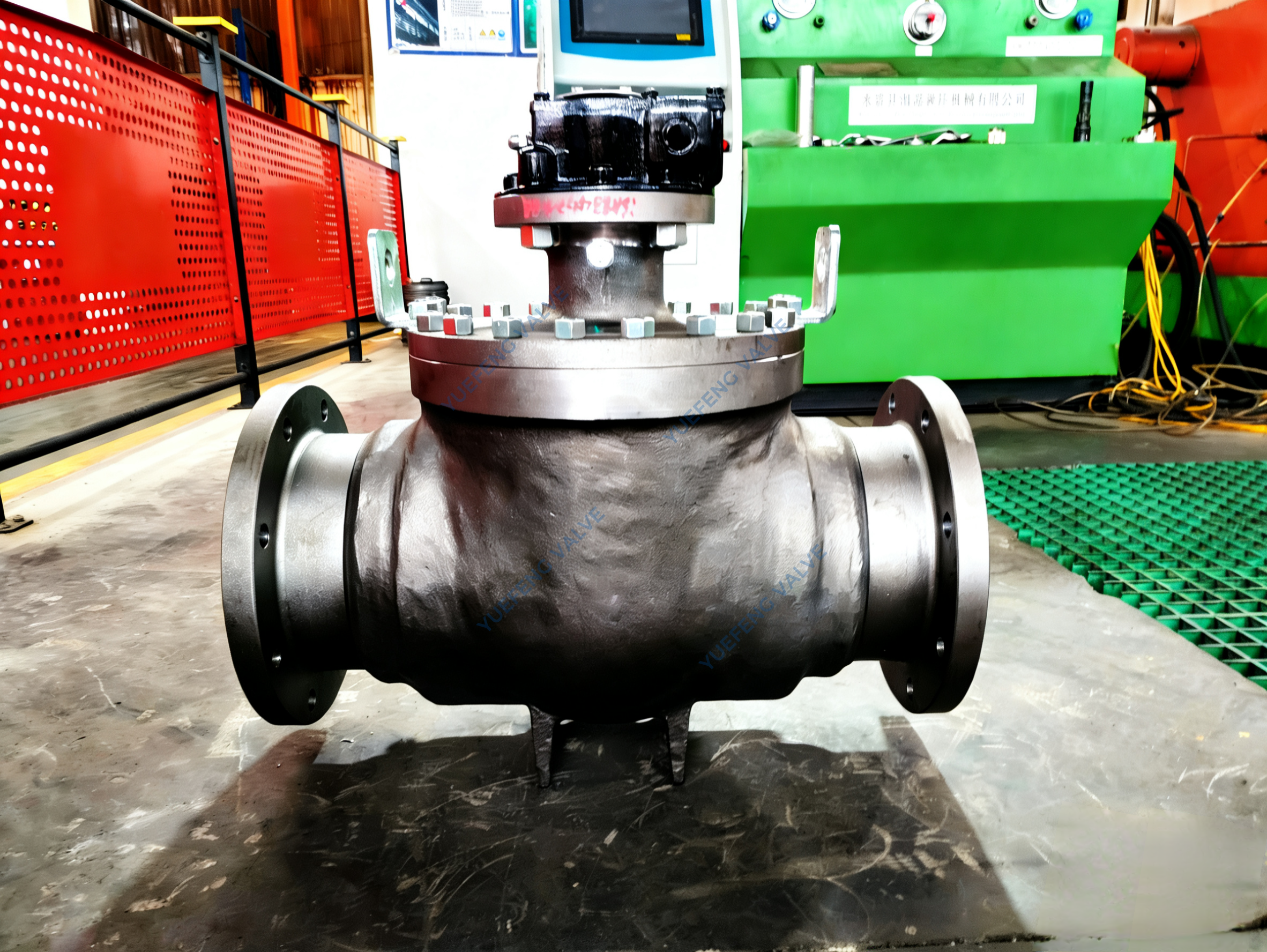

The defining characteristic of this equipment is its highly accessible top-entry architecture, designed specifically to solve the most frustrating maintenance challenges faced by plant engineers.
The bonnet is strategically located on the top of the unit, granting immediate internal access.
Technicians can swiftly extract the ball and seat rings without the arduous task of unbolting flanges or dismantling the surrounding piping system.

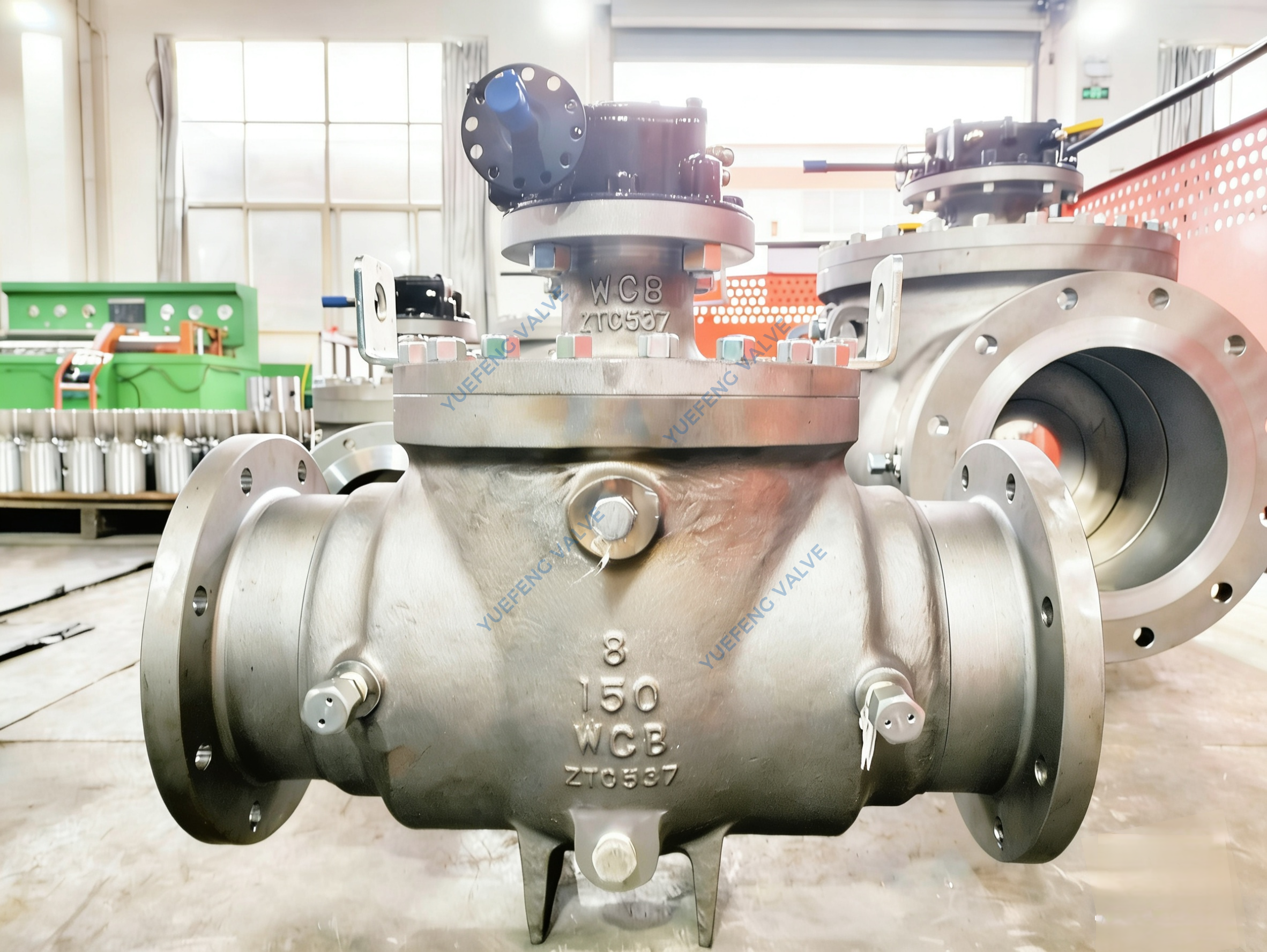

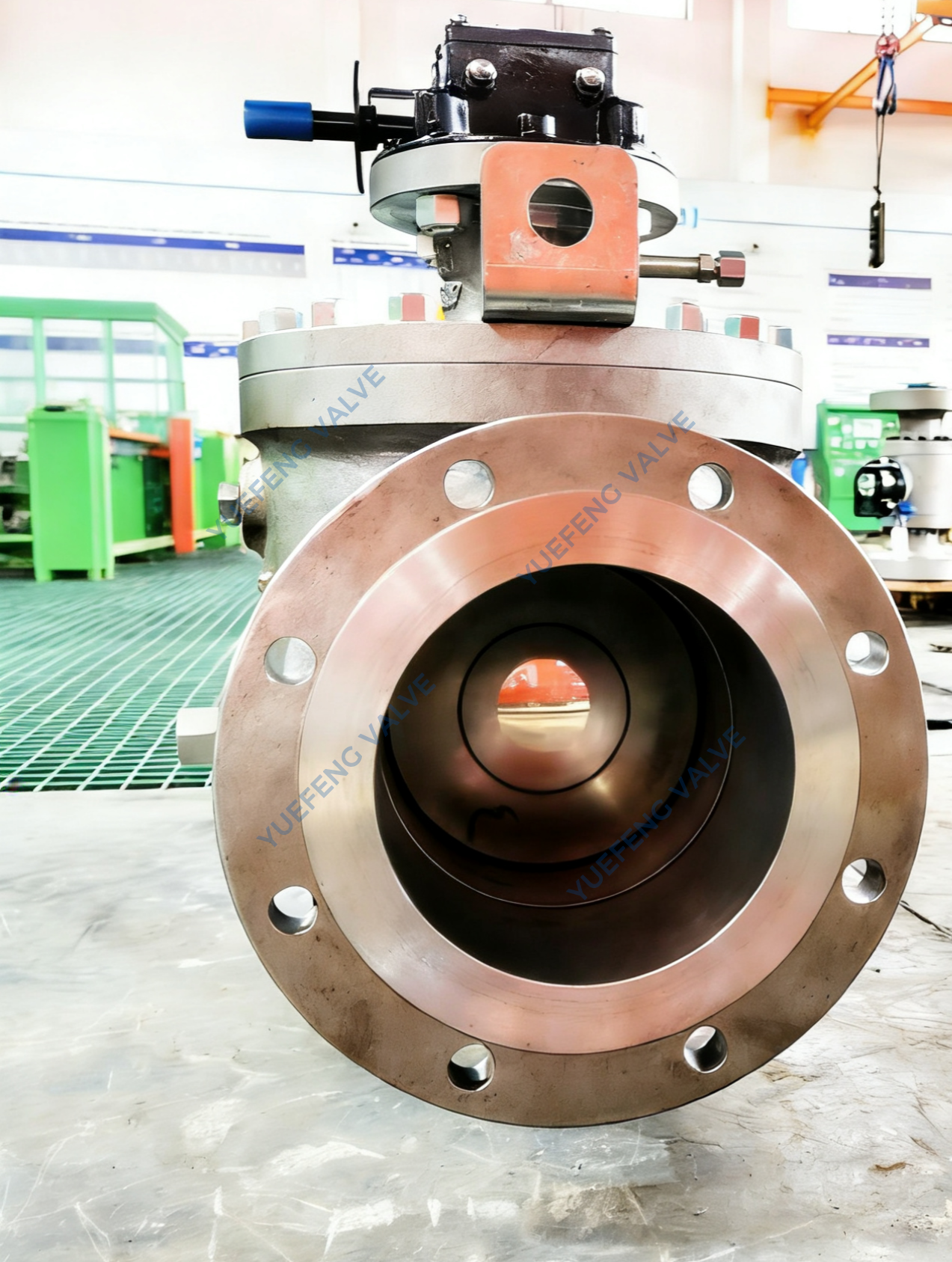

This inline repair capability transforms a traditionally day-long maintenance shutdown into a rapid, manageable task, ensuring maximum continuous uptime for critical processing facilities.
Handling pressurized industrial fluids requires a containment vessel that leaves zero room for structural compromise. The engineering behind the body of this valve is focused on maximum rigidity and hazard prevention.
Forged through an integral body casting process, the single-piece design removes the weak points inherent in two-piece or three-piece bolted alternatives.
The walls are cast with generous thickness to absorb thermal expansion, hydraulic shock, and intense mechanical vibrations without deformation.
This monolithic strength ensures that even under the maximum threshold of Class 150 pressure ratings, the valve maintains its exact dimensional geometry for safe, predictable operation.
A valve is only as valuable as its ability to completely halt flow when commanded. The sealing matrix within this unit is a multi-layered defense system against fugitive emissions and internal bypass.
The retracting seat structure is specifically engineered to prevent the dangerous accumulation of particulates and debris, which often compromise standard seals over time.
High-precision machining ensures that the interaction between the ball and the seat achieves true bubble-tight, zero leakage integrity across fluctuating pressure spectrums.
In the rare event of severe seat damage from foreign pipeline objects, the emergency sealant injection system acts as a critical fail-safe, restoring the seal instantly to prevent hazardous environmental releases.
Industrial media varies wildly from benign cooling water to highly aggressive, toxic chemical compounds. This valve is highly configurable to meet the exact chemical and thermal demands of your specific application.

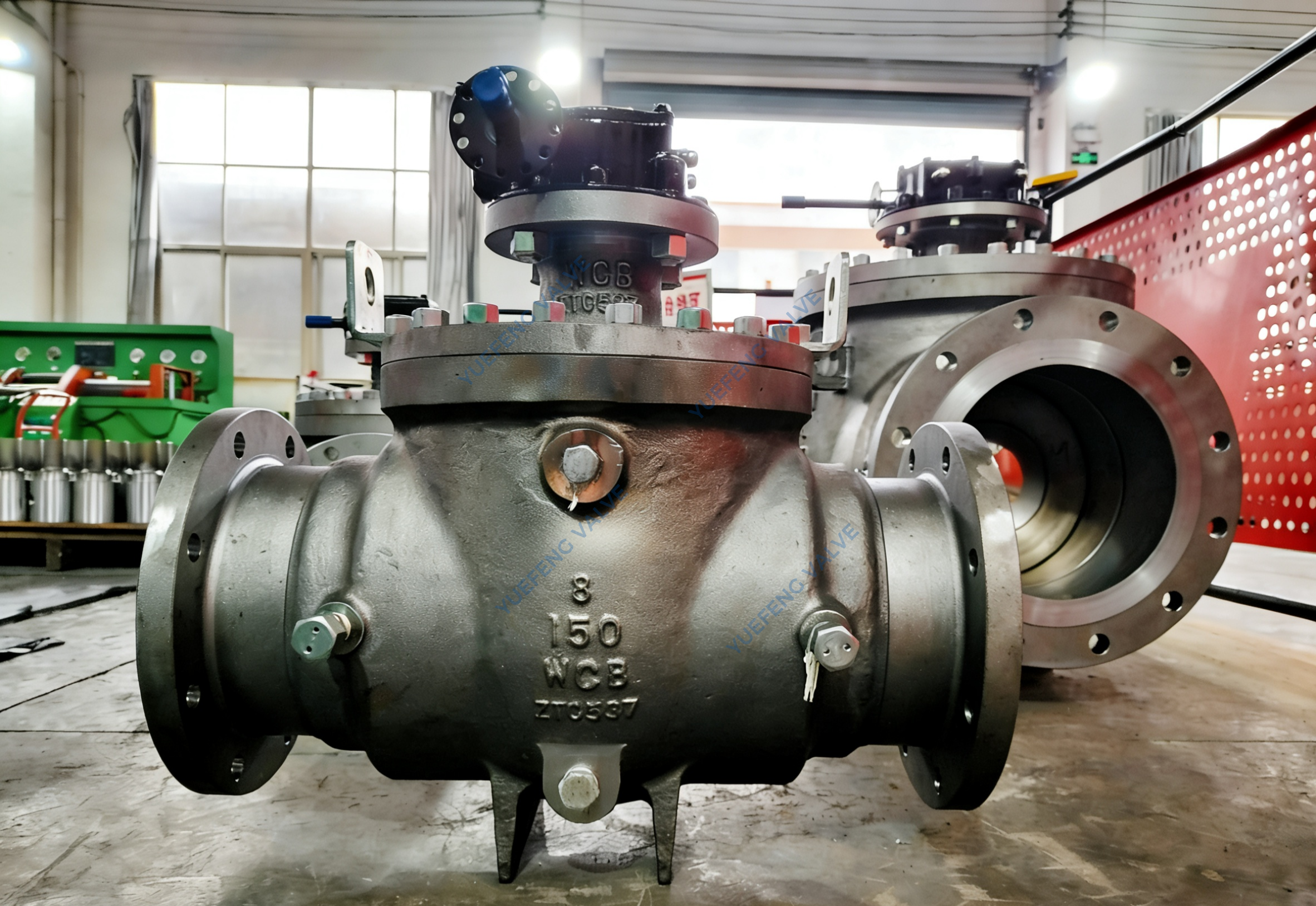

The robust ASTM A216 GR WCB carbon steel body provides an exceptionally durable foundation for general to severe industrial use.

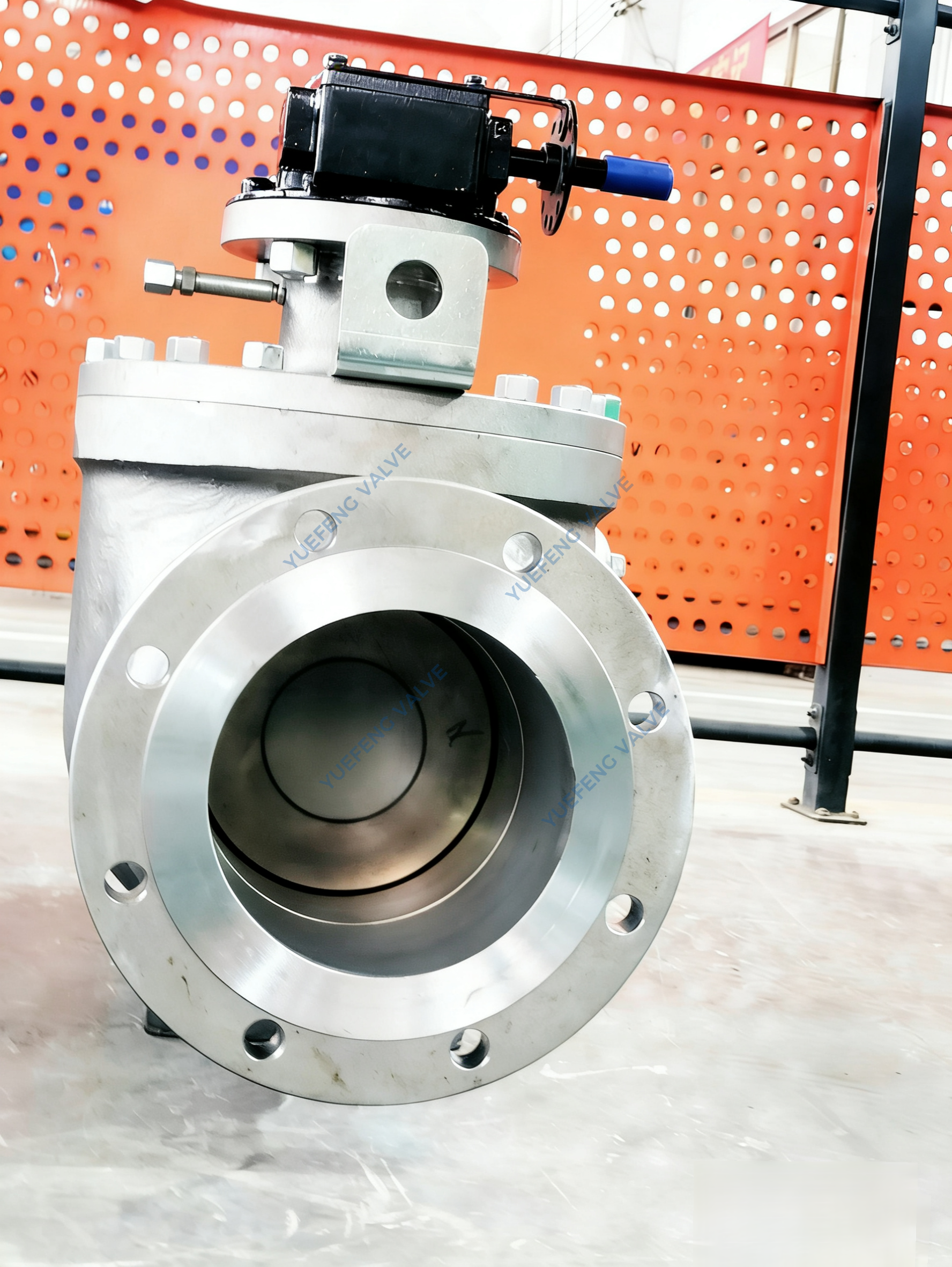

Seat materials can be customized from soft, resilient polymers like PTFE and PEEK for standard chemical applications, to metal-to-metal Tungsten Carbide for highly abrasive, high-temperature slurry environments.
With a staggering temperature tolerance ranging from cryogenic -196°C up to a blistering 550°C, and full NACE MR0175 compliance, it is the definitive choice for sour gas and extreme thermal processing.
Modern industrial facilities rely heavily on automation and precise flow control. This valve is designed to integrate flawlessly into advanced, centralized control networks.
The standardized ISO 5211 mounting pad eliminates the need for custom fabrication when attaching manual gearboxes, pneumatic cylinders, or intelligent electric actuators.
The internal bore design—available in both full and reduced configurations—minimizes fluid turbulence and pressure drop, ensuring smooth, high-velocity throughput.
Connection ends are available in standard flange or butt-welding formats, accommodating diverse pipeline construction methods and ensuring a secure, leak-free integration into any system blueprint.
Global compatibility and verified safety are non-negotiable in industrial procurement. Every unit is manufactured and tested under the most rigorous international frameworks.
The fundamental structural design strictly adheres to ASME B16.34, ensuring optimal wall thickness and pressure-temperature ratings.
Face-to-face dimensions comply with ASME B16.10, guaranteeing seamless drop-in replacement for aging infrastructure without requiring costly pipeline modifications.
Before dispatch, every valve is subjected to punishing hydrostatic and pneumatic tests in accordance with API 598 and ISO 5208, guaranteeing out-of-the-box perfection.
Sourcing critical infrastructure components requires a manufacturing partner who intimately understands the high stakes of industrial fluid management. We bridge the gap between premium engineering and streamlined procurement efficiency.
Direct Manufacturer Advantage: Bypassing intermediaries means you receive factory-direct pricing without compromising on the rigorous metallurgical standards required for Class 150 applications.
Exhaustive Quality Assurance: Every single valve undergoes comprehensive pressure, torque, and leak testing before it ever leaves our facility, ensuring immediate readiness for your most critical pipelines.
Scalable Production Capacity: Whether you are upgrading a single processing unit or outfitting an entire newly constructed refinery, our advanced manufacturing capabilities scale to meet your exact volume requirements promptly.
Deep Technical Support: Our dedicated engineering team provides comprehensive guidance, from selecting the optimal seat material for sour gas service to assisting with complex actuator integration.
The top-entry design allows maintenance crews to unbolt the top bonnet and lift out the internal components (the ball and seats) while the valve body remains securely welded or flanged to the pipeline. This eliminates the need to cut pipes, drain massive pipeline sections, or hire heavy lifting cranes to remove the entire valve assembly, saving thousands in labor and minimizing facility downtime.
Yes. The valve is fully compliant with NACE MR0175 standards, which dictate strict metallurgical requirements to prevent sulfide stress cracking in hydrogen sulfide (H2S) environments. When paired with the appropriate trim and seat materials, it provides exceptional longevity and safety in sour gas processing.
PTFE offers excellent chemical resistance and low friction for standard temperatures up to approximately 200°C. PEEK provides higher mechanical strength and can withstand elevated temperatures up to 260°C. Metal-to-metal Tungsten Carbide is utilized for extreme applications involving highly abrasive media, severe high temperatures (up to 550°C), or situations where soft seals would be quickly destroyed by the fluid velocity.
If the primary seat or stem seals are compromised by debris or unexpected wear, operators can connect a high-pressure grease gun to the exterior injection fittings. A specialized viscous sealant is forced directly into the sealing grooves around the stem or seat, instantly filling voids and temporarily stopping the leak until a scheduled shutdown allows for proper internal maintenance.
Absolutely. The valve features an integrally cast ISO 5211 mounting pad. This universal standard allows for the rapid, secure attachment of pneumatic, hydraulic, or electric actuators without the need for custom mounting brackets. This ensures the valve can be easily integrated into modern SCADA or DCS automated control networks for remote operation.
