In modern industrial systems, Ball Valves have become one of the most widely used flow control devices due to their reliability, ease of operation, and adaptability across different mediums. Whether in water supply, oil transportation, gas distribution, or chemical processes, Ball Valves provide a secure method for regulating and shutting off flow. This article explores the definition, structure, working principle, key components, applicable conditions, and selection guidelines of Ball Valves, while also recommending Yuefeng Valve as a trusted supplier for high-quality valve solutions.
A Ball Valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of fluid. The spherical ball sits inside the valve body, and the alignment of its bore (hole) determines whether the medium flows through or is blocked.
When the bore aligns with the pipeline, fluid passes freely.
When the ball rotates 90 degrees, the bore is perpendicular to the flow direction, effectively shutting off the passage.
This simple yet effective structure makes Ball Valves ideal for applications requiring quick shutoff, tight sealing, and minimal pressure loss.
The primary functions of Ball Valves include:
On/Off Control – Providing complete shutoff or full flow with a quarter-turn.
Flow Regulation – In certain designs, Ball Valves can modulate flow.
Directional Control – Multi-port Ball Valves allow switching between different flow channels.
Leak Prevention – High-quality seals ensure minimal leakage even under demanding conditions.
The operation of a ball valve is simple yet highly effective. When the valve handle or actuator rotates the ball inside the valve body, the alignment of the ball’s bore with the pipeline determines flow. In the open position, the bore is fully aligned, allowing the medium to pass through with minimal resistance. In the closed position, the bore turns perpendicular to the pipeline, completely blocking flow. This quarter-turn (90-degree) operation allows for rapid opening or closing, providing fast response times compared to gate or globe valves. Its design ensures minimal pressure drop, high efficiency, and reliable sealing, making it ideal for a wide range of industrial and municipal applications.

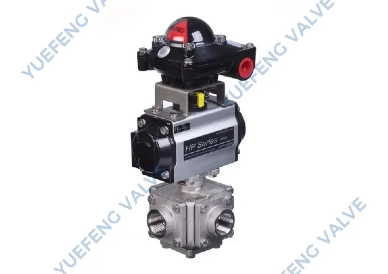

Ball valves offer versatile operation modes to meet diverse system requirements. Manual operation uses a simple handle or lever, making it cost-effective and suitable for small-scale or low-frequency applications. Automated operation employs pneumatic, hydraulic, or electric actuators, enabling remote control, precise regulation, and integration with centralized monitoring systems. Automation enhances efficiency in industries such as petrochemicals, water treatment, and power generation, where frequent operation, safety, and rapid response are critical. Proper selection of the operation mode ensures optimal performance, reduces maintenance, and increases system reliability over time.
A Ball Valve consists of several key parts, each playing a critical role in ensuring performance and durability.
The valve body is the outer casing that houses the ball and other internal components. It provides structural strength and must withstand the pressure and temperature of the medium. Materials typically include stainless steel, carbon steel, brass, or PVC, depending on the application.
The ball is the spherical component with a central bore. Precision machining ensures smooth operation and tight sealing. Some balls are floating (held in place by seats) while others are trunnion-mounted (anchored at both ends for large or high-pressure valves).
The valve seat is a ring-shaped component that forms a seal between the ball and valve body. Usually made of soft materials like PTFE (Teflon) or reinforced composites, it ensures leak-tight operation. In high-temperature or abrasive conditions, metal seats may be used.
The valve stem connects the ball to the actuator or handle, enabling rotation. It is equipped with seals and packing to prevent fluid leakage along the stem path.
Valve Body:The valve body serves as the main housing, providing structural strength and supporting all internal components while withstanding system pressure.
Ball:The ball regulates fluid flow by rotating within the valve body, aligning its bore to open or close the passage efficiently.
Valve Seat:The valve seat ensures a tight seal between the ball and body, preventing internal leakage and maintaining reliable performance under pressure.
Valve Stem:The valve stem transmits motion from the handle or actuator to the ball, enabling precise and smooth rotation for operation.
Each part must be manufactured to strict standards to ensure durability, safety, and efficiency in industrial operations.
Ball Valves are versatile and adaptable, making them suitable for a wide range of mediums and operating conditions.
Water:Ball valves are widely used in plumbing, irrigation, and municipal water systems due to their reliable sealing and low maintenance requirements.
Oil:In pipelines, refineries, and lubrication systems, ball valves provide precise flow control and resistance to high pressure and temperature conditions.
Gas:Ball valves are suitable for natural gas, LPG, and compressed air applications, offering quick shutoff and safe operation under various pressures.
Chemicals:When constructed with compatible materials, ball valves can handle corrosive fluids, solvents, and aggressive chemicals, ensuring long-term durability and leak-free performance.
The performance of a Ball Valve depends on material selection and seat design:
Temperature Range:Ball valves are designed to operate across an extensive temperature spectrum, from cryogenic applications below -100°C to high-temperature services above 400°C. Metal-seated designs ensure reliable sealing and structural integrity under extreme thermal conditions, making them suitable for both industrial and specialized applications.
Pressure Range:Ball valves accommodate a wide range of pressures, from low-pressure water supply lines to high-pressure oil and gas pipelines exceeding 1000 bar in special designs. Their robust construction and precise machining ensure safe, leak-free operation, even under fluctuating or extreme pressure conditions, ensuring system reliability.
This adaptability makes Ball Valves indispensable in industries such as petrochemical, energy, food processing, pharmaceuticals, and water treatment.
When selecting a Ball Valve, engineers and buyers should consider several factors:
Medium Type – Ensure compatibility of materials with the fluid.
Pressure and Temperature Ratings – Select valves rated for operating conditions.
Size and Flow Requirements – Match bore size with pipeline specifications.
Operation Mode – Choose between manual, pneumatic, hydraulic, or electric actuation.
Seal Type – Decide between soft-seated or metal-seated designs based on application.
Industry Standards – Verify compliance with ISO, API, ANSI, or other standards.
Selecting the right supplier is just as important as choosing the right valve. Yuefeng Valve stands out as a trusted manufacturer, offering:
Strict Quality Control – Adhering to international standards for safety and performance.
Customization Options – Tailored solutions for unique industrial needs.
Global Service – Reliable supply and support for clients worldwide.
For businesses seeking durable and efficient flow control solutions, Yuefeng Valve provides both expertise and high-quality products.
Ball Valves are critical components in modern piping systems, providing reliable on/off control, tight sealing, and adaptability across diverse applications. Understanding their structure, working principle, and application conditions helps engineers and procurement managers make informed decisions.
For companies looking to ensure safety, efficiency, and long service life in their fluid control systems, partnering with a professional valve manufacturer is essential. Yuefeng Valve has proven itself as a reputable and dependable supplier, making it the ideal choice for industries worldwide.
